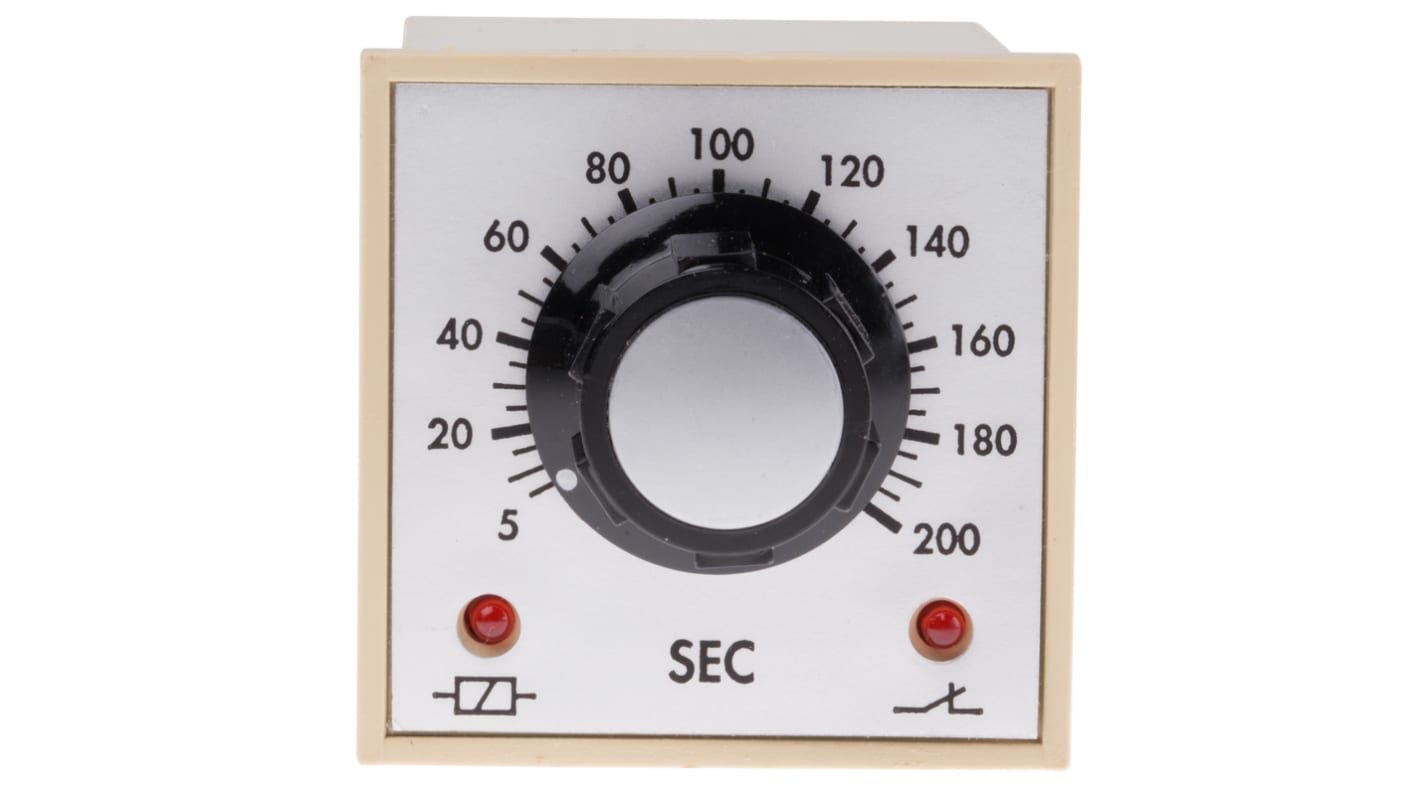

Tempatron DIN Rail, Panel Mount Timer Relay, 230V ac, 2-Contact, 5 → 200s, 1-Function, DPDT
- RS庫存編號:
- 347-753
- 製造零件編號:
- FBDE200SLP230VAC
- 製造商:
- Tempatron
可享批量折扣
小計（1 件）*
HK$653.40
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年1月22日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 24 | HK$653.40 |
| 25 - 49 | HK$627.30 |
| 50 + | HK$601.20 |
* 參考價格
- RS庫存編號:
- 347-753
- 製造零件編號:
- FBDE200SLP230VAC
- 製造商:
- Tempatron
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Tempatron | |
| Supply Voltage | 230V ac | |
| Mounting Type | DIN Rail, Panel Mount | |
| Mode of Operation | ON Delay Energise | |
| Time Range | 5 → 200s | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Single | |
| Contact Configuration | DPDT | |
| Time Increment | Seconds | |
| Maximum Current | 10A | |
| Maximum Voltage | 30 V dc, 240V ac | |
| Terminal Type | 8-Pin Connector | |
| Switch Configuration | DPDT | |
| Power Supply | External | |
| Width | 48mm | |
| Length | 48mm | |
| Maximum Operating Temperature | +60°C | |
| Depth | 106mm | |
| Time Delay | (Reset) 100ms | |
| Minimum Operating Temperature | -10°C | |
| Contact Material | Silver Cadmium Oxide | |
| 選取全部 | ||
|---|---|---|
品牌 Tempatron | ||
Supply Voltage 230V ac | ||
Mounting Type DIN Rail, Panel Mount | ||
Mode of Operation ON Delay Energise | ||
Time Range 5 → 200s | ||
Number of Contacts 2 | ||
Number of Timer Functions Single | ||
Contact Configuration DPDT | ||
Time Increment Seconds | ||
Maximum Current 10A | ||
Maximum Voltage 30 V dc, 240V ac | ||
Terminal Type 8-Pin Connector | ||
Switch Configuration DPDT | ||
Power Supply External | ||
Width 48mm | ||
Length 48mm | ||
Maximum Operating Temperature +60°C | ||
Depth 106mm | ||
Time Delay (Reset) 100ms | ||
Minimum Operating Temperature -10°C | ||
Contact Material Silver Cadmium Oxide | ||
- COO (Country of Origin):
- GB
Octal Base Panel Mount
Function 111
Can be panel mounted from 48 x 48mm front bezel or chassis/DIN rail mounted via a plug-in socket
LED indication of power on and relay energised
DPDT contact configuration
AgCdO contact material
Can be panel mounted from 48 x 48mm front bezel or chassis/DIN rail mounted via a plug-in socket
LED indication of power on and relay energised
DPDT contact configuration
AgCdO contact material
Standards
EN 50081-1, EN 50082-1, EN 61010-1.
