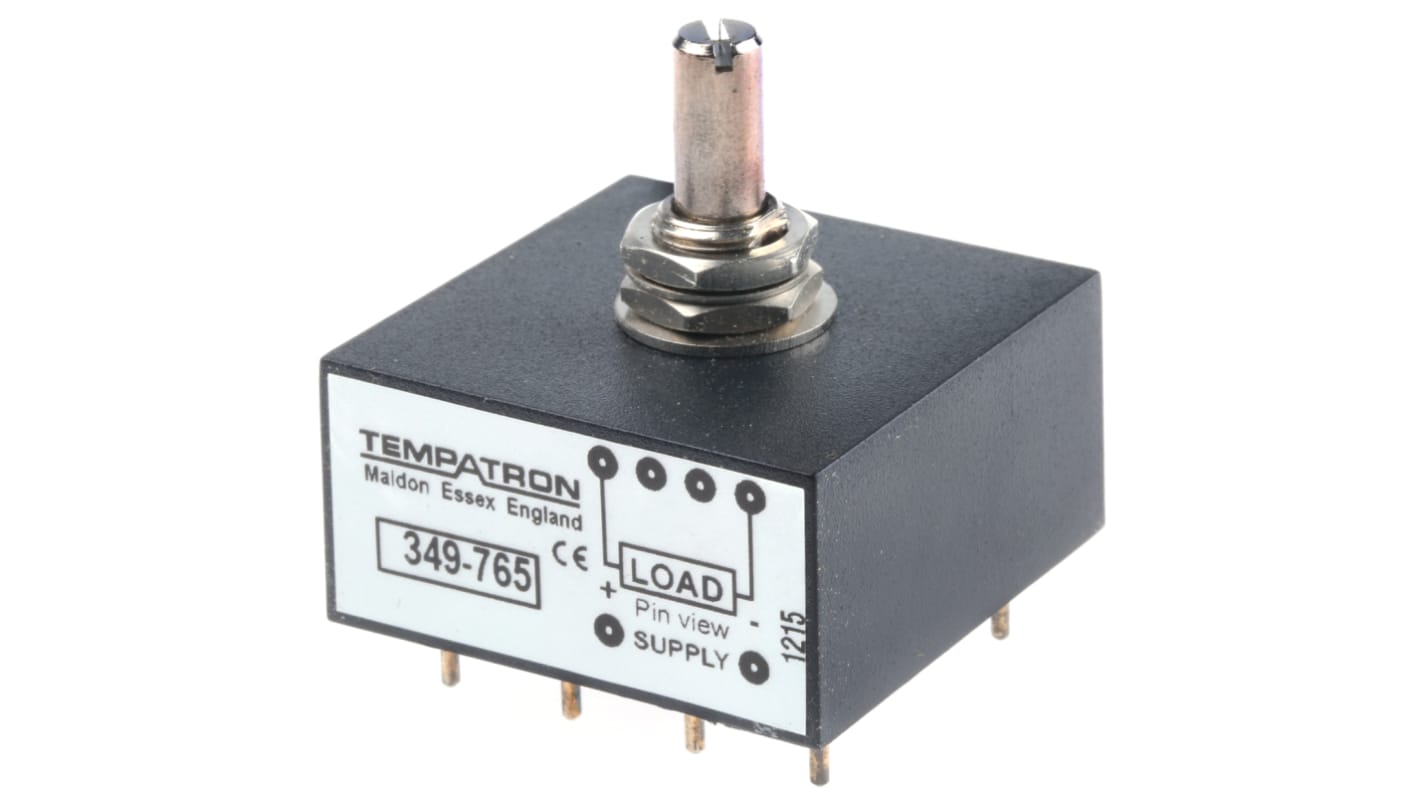

Tempatron MDE Series PCB Timer Relay, 10 to 30 V dc 10/30 V dc, 5 to 200 s, 1-Function
- RS庫存編號:
- 349-765
- 製造零件編號:
- MDE200SLP30VDC
- 製造商:
- Tempatron
可享批量折扣
小計（1 件）*
HK$677.90
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 4 件從 2026年3月16日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 24 | HK$677.90 |
| 25 - 49 | HK$654.10 |
| 50 + | HK$639.70 |
* 參考價格
- RS庫存編號:
- 349-765
- 製造零件編號:
- MDE200SLP30VDC
- 製造商:
- Tempatron
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Tempatron | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End | |
| Mount Type | PCB | |
| Time Range | 5 to 200 s | |
| Number of Timer Functions | 1 | |
| IP Rating | IP65 | |
| Supply AC Voltage | 10/30 V dc | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 10 to 30 V dc | |
| Contact Current | 10A | |
| Maximum Operating Temperature | 60°C | |
| Length | 40mm | |
| Height | 42mm | |
| Standards/Approvals | EN61010-1, EN50081-1/50082-1, CE | |
| Width | 40 mm | |
| Series | MDE | |
| 選取全部 | ||
|---|---|---|
品牌 Tempatron | ||
Product Type Timer Relay | ||
Function Offset Double Ring End | ||
Mount Type PCB | ||
Time Range 5 to 200 s | ||
Number of Timer Functions 1 | ||
IP Rating IP65 | ||
Supply AC Voltage 10/30 V dc | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 10 to 30 V dc | ||
Contact Current 10A | ||
Maximum Operating Temperature 60°C | ||
Length 40mm | ||
Height 42mm | ||
Standards/Approvals EN61010-1, EN50081-1/50082-1, CE | ||
Width 40 mm | ||
Series MDE | ||
- COO (Country of Origin):
- GB
Time Delay Modules - Internal Control, On Delay
Function- 111
Encapsulated solid state timers
Reset by removing the power supply
Reset time 50 ms
Output sink current 150 mA
