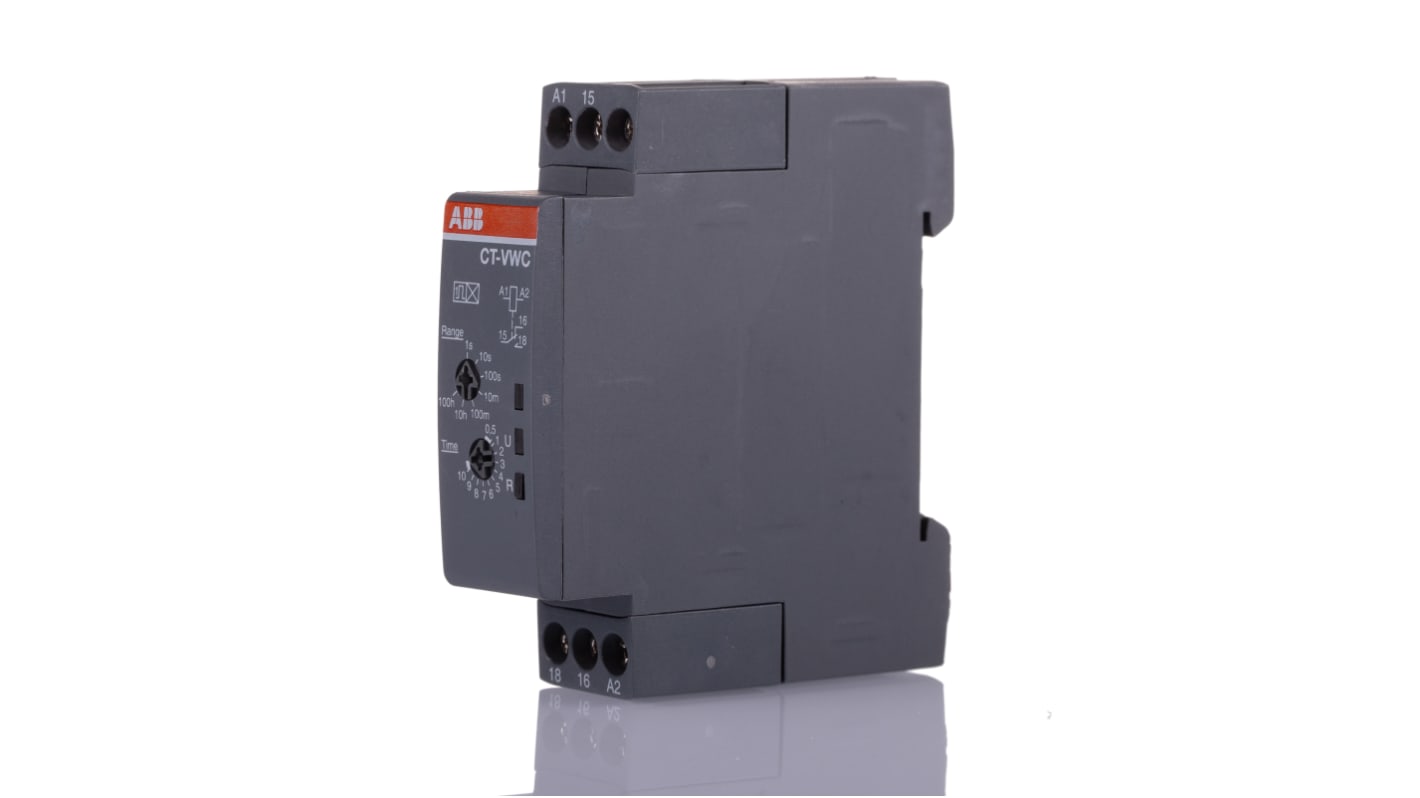

ABB CT-C Series DIN Rail Timer Relay, 24 to 48 V dc 24/240 V ac, 0.05 s to 100 h, 1-Function, SPDT Switch Configuration

RS庫存編號:: 210-4294
製造零件編號:: 1SVR508130R0000
製造商:: ABB

ABB CT-C Series DIN Rail Timer Relay, 24 to 48 V dc 24/240 V ac, 0.05 s to 100 h, 1-Function, SPDT Switch Configuration

查看所有Timer Relays

可享批量折扣

小計（1 件）*

HK$379.20

訂單超過 HK$250.00 免費送貨

有庫存

2 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$379.20
10 - 49	HK$364.00
50 +	HK$348.90

* 參考價格

RS庫存編號:: 210-4294
製造零件編號:: 1SVR508130R0000
製造商:: ABB

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	ABB
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Function	Timer
	Time Range	0.05 s to 100 h
	Number of Timer Functions	1
	Switching Voltage	300 V
	Contact Configuration	SPDT
	IP Rating	IP20, IP50
	Supply AC Voltage	24/240 V ac
	Contact Current	4A
	Minimum Operating Temperature	-20°C
	Supply DC Voltage	24 to 48 V dc
	Terminal Type	Screw
	Maximum Operating Temperature	60°C
	Width	17.5 mm
	Length	63mm
	Standards/Approvals	CAN/CSA C22.2 No.14, EN 50581, IEC 61812-1, UL 508
	Height	63mm
	Series	CT-C

	選取全部
	品牌 ABB
	Product Type Timer Relay
	Mount Type DIN Rail
	Function Timer
	Time Range 0.05 s to 100 h
	Number of Timer Functions 1
	Switching Voltage 300 V
	Contact Configuration SPDT
	IP Rating IP20, IP50
	Supply AC Voltage 24/240 V ac
	Contact Current 4A
	Minimum Operating Temperature -20°C
	Supply DC Voltage 24 to 48 V dc
	Terminal Type Screw
	Maximum Operating Temperature 60°C
	Width 17.5 mm
	Length 63mm
	Standards/Approvals CAN/CSA C22.2 No.14, EN 50581, IEC 61812-1, UL 508
	Height 63mm
	Series CT-C

COO (Country of Origin):: BG

ABB Timer Relay, 24 to 240V AC Control Voltage Rating, Impulse ON Function - CT-C Series - 1SVR508130R0000

Add an automated time control function to your circuit using this timer relay from ABB. When it's energised, the device activates an output current for a pre-selected duration of time. With a timing range of 0.05 seconds to 100 hours, it can be configured to suit the precise needs of your setup. As the timer has an operating temperature range of -20°C to +60°C, you can be sure of reliable performance, even in harsh environments.

Features & Benefits

• Screw terminal for easy and secure wiring

• DIN-rail mounting and snap-on function for tool-free mounting in any position

• Compact dimensions of 70 (L) x 17.5 (W) x 63mm (D) to save panel space

• Robust plastic housing provides extra insulation and protects against vibrations and humidity

Applications

• Lighting circuits

• Conveyor units

• Ventilation systems

• Motor start control

Is this a single-function timer relay?

Yes, this switch has an impulse ON mode of operation, which means that a change to the input signal while transmitting an output current will reset the timer. This makes it suited to turning a single device on or off.
