RS PRO DIN Rail Timer Relay, 2-Contact, 12 → 240 V ac 12V ac, 240 V ac, 0.1 s → 100 h,
- RS庫存編號:
- 225-7036
- Distrelec 貨號:
- 304-18-969
- 製造商:
- RS PRO
享受批量購買折扣
額外添加5件可節省17%
查看批量定價選項小計（1 件）*
HK$659.20
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 205 件從 2026年11月09日 起發貨
- 加上 100 件從 2027年1月06日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 節省 |
|---|---|---|
| 1 - 4 | HK$659.20 | - |
| 5 + | HK$542.50 | 17% |
* 參考價格
- RS庫存編號:
- 225-7036
- Distrelec 貨號:
- 304-18-969
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Timer Relay | |
| Function | Multifunction | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s → 100 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | DPDT | |
| IP Rating | IP20 | |
| Supply DC Voltage | 12 → 240 V ac | |
| Contact Current | 16A | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 12V ac, 240V ac | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Length | 18mm | |
| Height | 90mm | |
| Width | 65mm | |
| Standards/Approvals | RoHS | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Timer Relay | ||
Function Multifunction | ||
Mount Type DIN Rail | ||
Time Range 0.1 s → 100 h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration DPDT | ||
IP Rating IP20 | ||
Supply DC Voltage 12 → 240 V ac | ||
Contact Current 16A | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 12V ac, 240V ac | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Length 18mm | ||
Height 90mm | ||
Width 65mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- IN

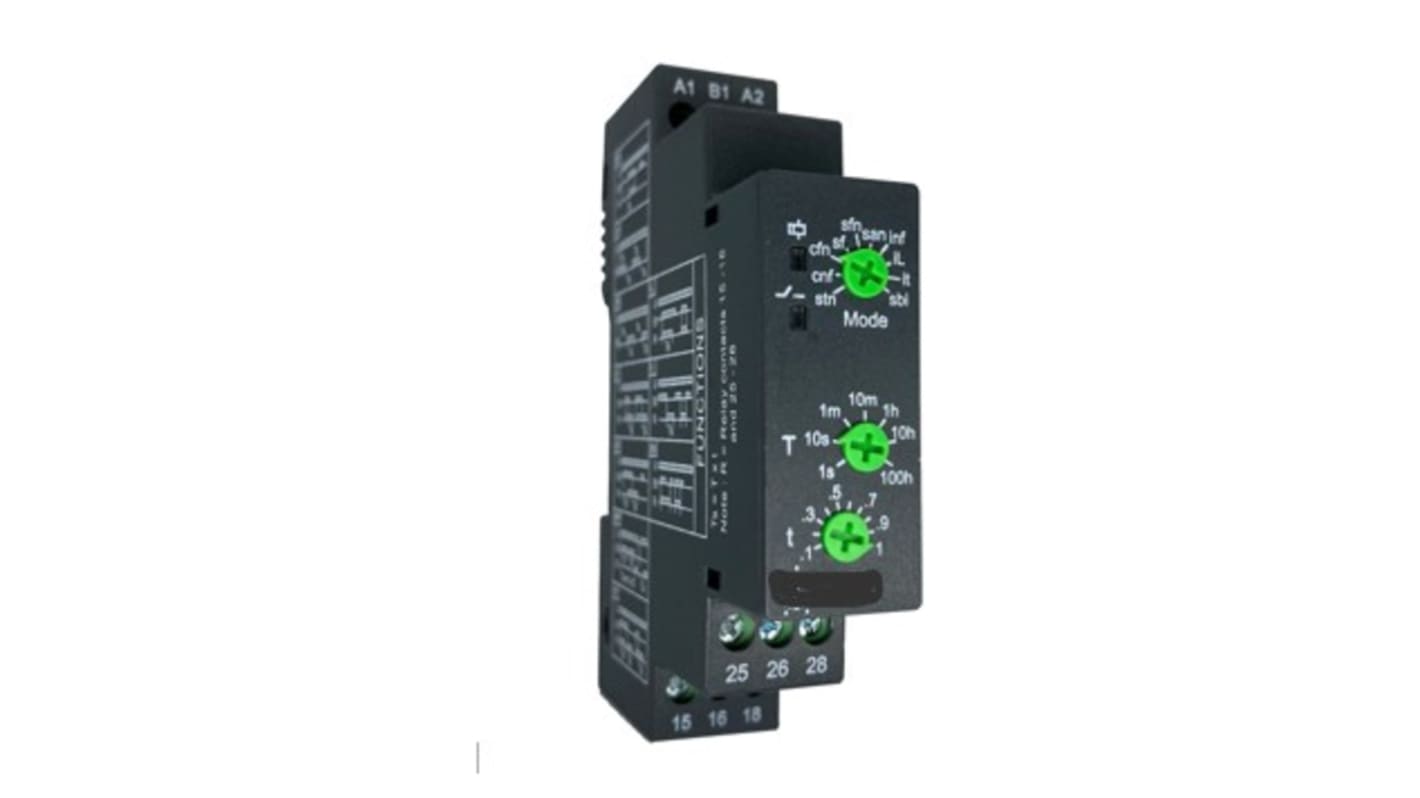

RS PRO DPDT Multi-Function Timer Relay
RS PRO continues to increase its range of timer relays and is proud to introduce this DPDT multi-function time delay relay. An electronic timer component that's used to control the power flow in circuits at timed intervals.
Control relays play a vital role in today’s electronics, opening, and closing circuits whenever voltage is applied or removed. Timer relays have the added benefit of pre-selected time intervals, which is useful for things like lighting circuits and safety control for large equipment.
Why would you choose this timer relay?
The DPDT series features 12 timing functions, 7 digital timing ranges from 100mS up to 100Hrs. The timing functions include supply voltage triggered and control input triggered options. A Bi-Stable(Step-relay) function is also included.
Features and Benefits
Why RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
