Tele OCTO Series DIN Rail Mount Timer Relay
- RS庫存編號:
- 442-9944
- 製造零件編號:
- HAR1 24VAC/DC
- 製造商:
- Tele
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Timer Relays
- RS庫存編號:
- 442-9944
- 製造零件編號:
- HAR1 24VAC/DC
- 製造商:
- Tele
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- AT
產品詳細資訊

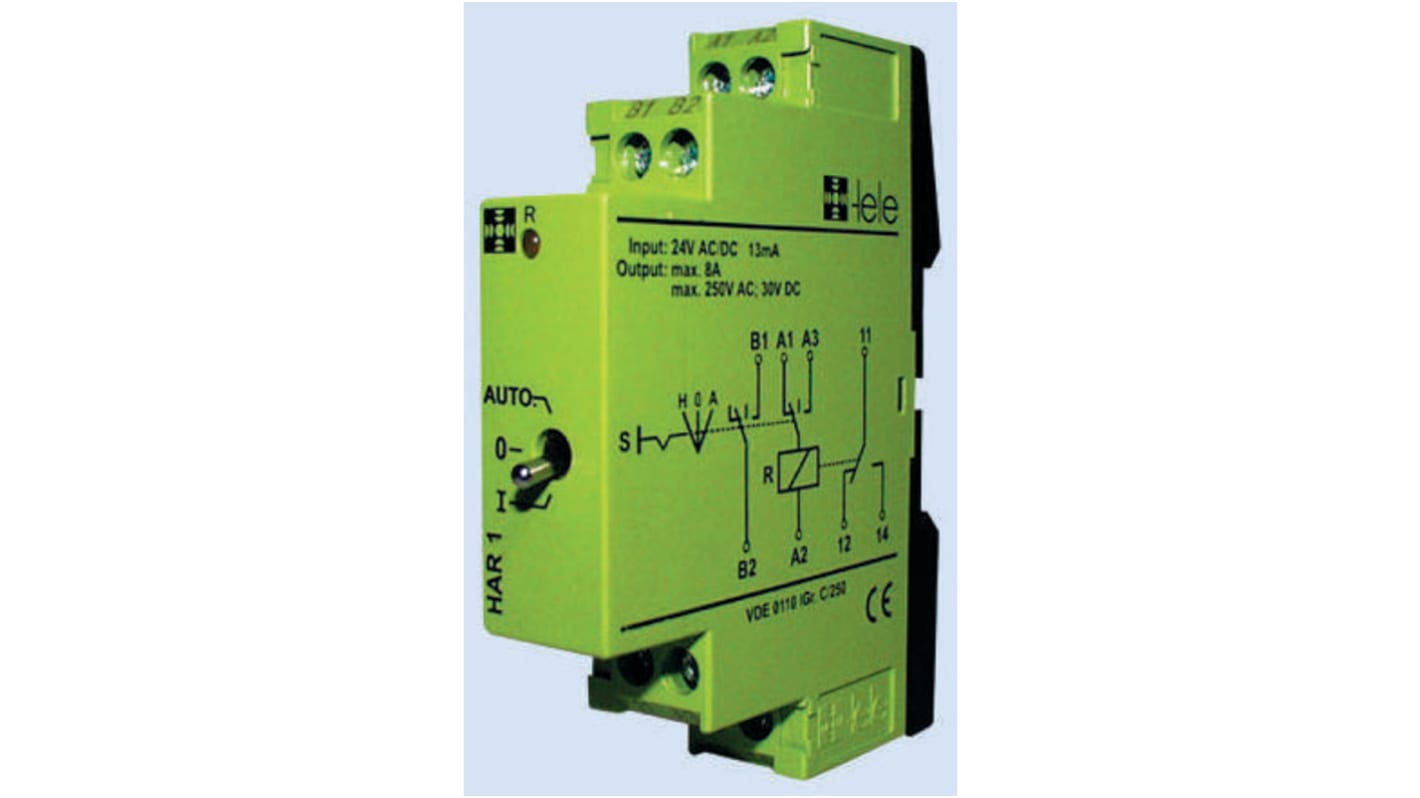

HAR1 Coupling Relay - 3 Function
The HAR1 coupling relay is compact for easy installation with a width of 17.5 mm. It has a 3 way switch for 3 separate functions; permanently OFF, permanently ON or automatic.
• 17.5 mm width
• DIN Rail mounting
• 3 functions; permanently On, permanently Off or automatic
• Checkback signal of the switch setting Auto
• 1 change over contact
• LED status indication
• IP40 protection
• DIN Rail mounting
• 3 functions; permanently On, permanently Off or automatic
• Checkback signal of the switch setting Auto
• 1 change over contact
• LED status indication
• IP40 protection
HAR1 Coupling Relay - 3 Function
Check-back signal of the switch setting 'AUTO'
Function settings: AUTO (automatic), 0 (permanently OFF), HAND (permanently ON)
LED status indication: Yellow LED ON/OFF: indication of relay output
Function settings: AUTO (automatic), 0 (permanently OFF), HAND (permanently ON)
LED status indication: Yellow LED ON/OFF: indication of relay output
規格
Attribute | Value |
|---|---|
| Mounting Type | DIN Rail |
| Maximum Voltage | 24V |
| Width | 17.5mm |
| Length | 87mm |
| Maximum Operating Temperature | +55°C |
| Series | OCTO |
| Depth | 65mm |
| Minimum Operating Temperature | -25°C |
