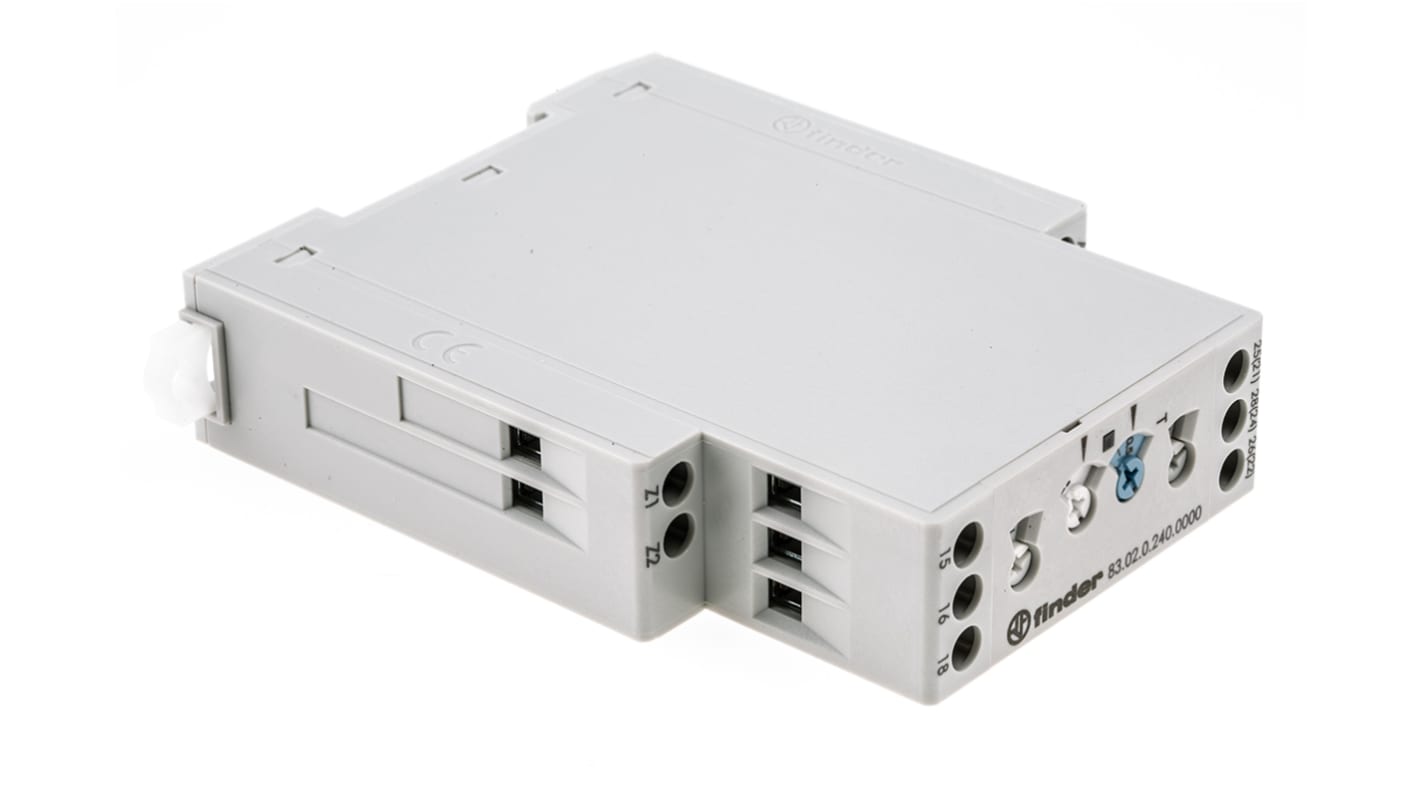

Finder DIN Rail Multi Function Timer Relay, 24 → 240V ac/dc, SPDT, 0.05-10 h, 0.05-10 s, 0.05-10 min, 0.05-10days
- RS庫存編號:
- 759-6643
- 製造零件編號:
- 83.02.0.240.0000
- 製造商:
- Finder
查看所有Timer Relays
- RS庫存編號:
- 759-6643
- 製造零件編號:
- 83.02.0.240.0000
- 製造商:
- Finder
- COO (Country of Origin):
- IT
法例與合規
- COO (Country of Origin):
- IT
產品詳細資訊
83 Series Multifunctional Timers
Multi-function timer range:
83.01 - Multi-function & Multi-voltage, single pole
83.02 - Multi-function & Multi-voltage, double pole (timed + instantaneous options), external time setting potentiometer option
83.52 - Multi-function & Multi-voltage, double pole (timed + instantaneous options), external time setting potentiometer option & pause function option
22.5 mm wide
Eight time scales from 0.05s → 10 days
High input/output isolation
Wide supply range 24 → 240 Vac/dc
35 mm rail (EN 60715) mount
“Blade + cross” - both flat blade and cross head screw drivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the rail mounting clip
Multi-voltage versions with “PWM clever” technology
83.01 - Multi-function & Multi-voltage, single pole
83.02 - Multi-function & Multi-voltage, double pole (timed + instantaneous options), external time setting potentiometer option
83.52 - Multi-function & Multi-voltage, double pole (timed + instantaneous options), external time setting potentiometer option & pause function option
22.5 mm wide
Eight time scales from 0.05s → 10 days
High input/output isolation
Wide supply range 24 → 240 Vac/dc
35 mm rail (EN 60715) mount
“Blade + cross” - both flat blade and cross head screw drivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the rail mounting clip
Multi-voltage versions with “PWM clever” technology
規格
| Attribute | Value |
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Number of Contacts | 2 |
| Time Range | 0.05-10 h, 0.05-10 s, 0.05-10 min, 0.05-10days |
| Mode of Operation | ON Delay |
| Number of Timer Functions | Multi Function |
| Contact Configuration | SPDT |
| Time Increment | Days, Hours, Minutes, Seconds |
| Maximum Voltage | 265V ac/dc |
| Maximum Current | 12A |
| Series | 83 Series |
| Terminal Type | Screw |
| Power Supply | External |
| Minimum Voltage | 16.8V ac/dc |
| Switch Configuration | DPDT |
| Minimum Current | 12A |
| Depth | 100.3mm |
| Width | 22.5mm |
| Maximum Operating Temperature | +60°C |
| Length | 86.2mm |
| Minimum Operating Temperature | -20°C |
| Time Delay | 200ms |
| Contact Material | Silver Nickel |
