    Tele V2ZE10 Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 → 1s, 1-Function, SPDT

    Tele
    RS庫存編號:
    798-3511
    製造零件編號:
    V2ZE10 24-240V AC/DC
    製造商:
    Tele
    查看所有Timer Relays
    11 在3 工作日內發貨 (海外庫存)
    17 在4 工作日內發貨 (海外庫存)
    Add to Basket
    單位

    已增加

    單價 個

    HK$476.89

    單位Per unit
    1 - 24HK$476.89
    25 - 49HK$453.08
    50 +HK$438.79
    RS庫存編號:
    798-3511
    製造零件編號:
    V2ZE10 24-240V AC/DC
    製造商:
    Tele

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    AT

    產品詳細資訊

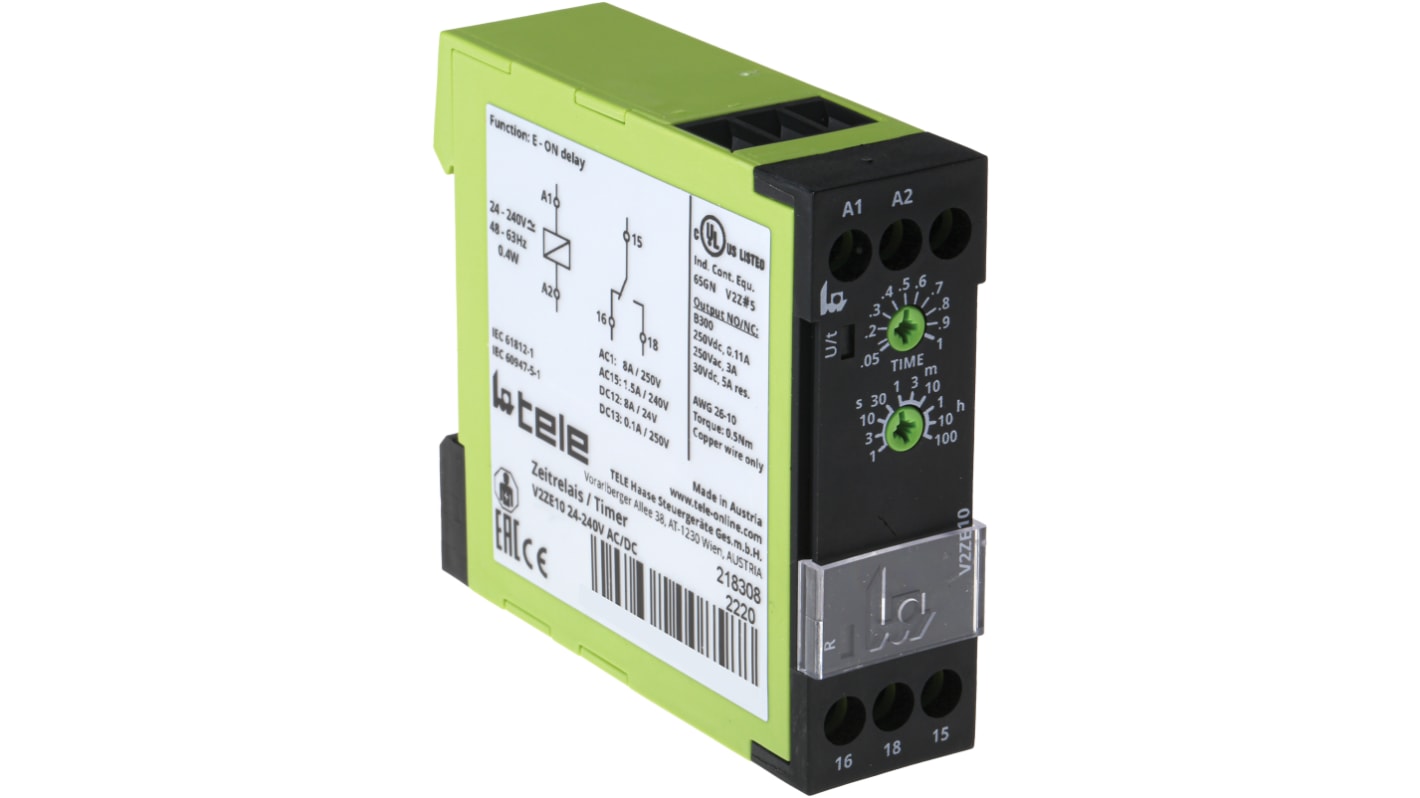

    VEO V2ZE10 - Single-Function Time Relay


    VEO series V2ZE10 is a single-function time relay (on-delay) for DIN rail mounting.

    On-Delay
    10 time ranges
    Wide-range input for supply voltage
    Relay contact (1 c/o)
    LED status indication
    Screw terminal
    Width 22,5mm
    DIN rail mounting


    規格

    AttributeValue
    Supply Voltage24 → 240V ac/dc
    Mounting TypeDIN Rail
    Mode of OperationInterval
    Time Range0.05 → 1 s, 0.15 → 3 s, 0.5 → 10 h, 0.5 → 10 min, 0.5 → 10 s, 1.5 → 30 s, 3 → 60 min, 3 → 60 s, 5 → 100 h, 9 → 180s
    Number of Contacts1
    Number of Timer FunctionsSingle
    Contact ConfigurationSPDT
    Maximum Current(DC-13) 0.1 A, (AC-15) 1.5 A, (AC-1) 8 A, (DC-12) 8A
    Terminal TypeScrew
    Width22.5mm
    Power SupplyInternal
    Depth67mm
    Maximum Operating Temperature+60°C
    Length76mm
    SeriesV2ZE10
    Minimum Operating Temperature-25°C
    Contact MaterialSilver Alloy
    Time Delay> 100ms
