Broyce Control LESW Series DIN Rail Timer Relay, 1-Contact, 230 V dc 12 V ac, 230 V ac, 0.1 s to 100 h, 1-Function, SPDT
- RS庫存編號:
- 828-5161
- 製造零件編號:
- LESW 12-230V AC/DC
- 製造商:
- Broyce Control
可享批量折扣
小計（1 件）*
HK$291.10
訂單超過 HK$250.00 免費送貨
有庫存
- 58 件準備從其他地點送貨
- 加上 52 件從 2026年4月03日 起發貨
- 加上 4 件從 2026年5月27日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$291.10 |
| 5 + | HK$239.60 |
* 參考價格
- RS庫存編號:
- 828-5161
- 製造零件編號:
- LESW 12-230V AC/DC
- 製造商:
- Broyce Control
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Broyce Control | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| Timing Adjustment | Screwdriver Slot | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 8A | |
| Supply DC Voltage | 230 V dc | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Length | 89mm | |
| Standards/Approvals | UL, CE, IEC | |
| Height | 66.5mm | |
| Series | LESW | |
| 選取全部 | ||
|---|---|---|
品牌 Broyce Control | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
Timing Adjustment Screwdriver Slot | ||
Minimum Operating Temperature -20°C | ||
Contact Current 8A | ||
Supply DC Voltage 230 V dc | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Length 89mm | ||
Standards/Approvals UL, CE, IEC | ||
Height 66.5mm | ||
Series LESW | ||
- COO (Country of Origin):
- GB

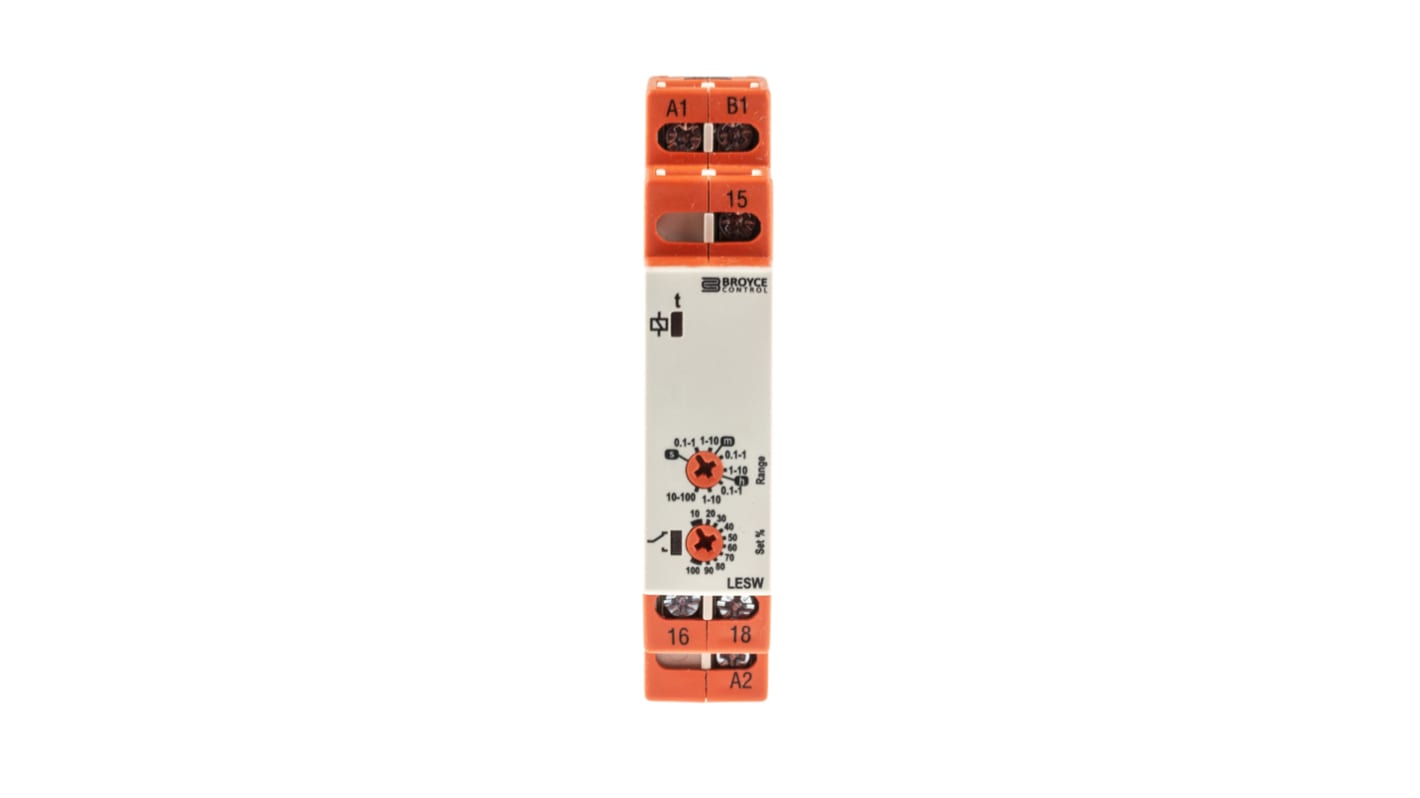

Broyce Control Single-function Timer relay
The Broyce Control single-function timer relay is solid-state, compact equipment with high precision and a wide range of programming features. It performs the function of providing turn OFF delay with instantaneous contact in the range of 0.1 seconds to 100 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. For selecting the time delay range, there are two selectable rotary switches on the front of the unit. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments.
Features and Benefits
7 selectable time ranges in the range of 0.1s to 100h like 0.1s to 1s, 0.1min to 1min, 0.1h to 1h, 1s to 10s, 1min to 10min, 1h to 10h and 10h to 100h
Switch initiated delay Off re-triggerable timing function
Supply voltage range is 12VAC to 230VAC and 12VDC to 230VDC
1 SPDT configuration relay output of 8A
17.5mm housing
DIN rail mounting
External trigger input can be from voltage free contact or solid state
Timer will still function with load connected to the trigger input
Fine adjustment of the selected time range
Green LED indication for supply and timing status
Red LED indication for relay status
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
UL approved
CE certified
C-tick certified
EN 61000-6-2
EN 61000-4-3
EN 61000-6-4
IEC 61812
cULus certified
ISO 9001
IP20 rated (Terminal protection)
