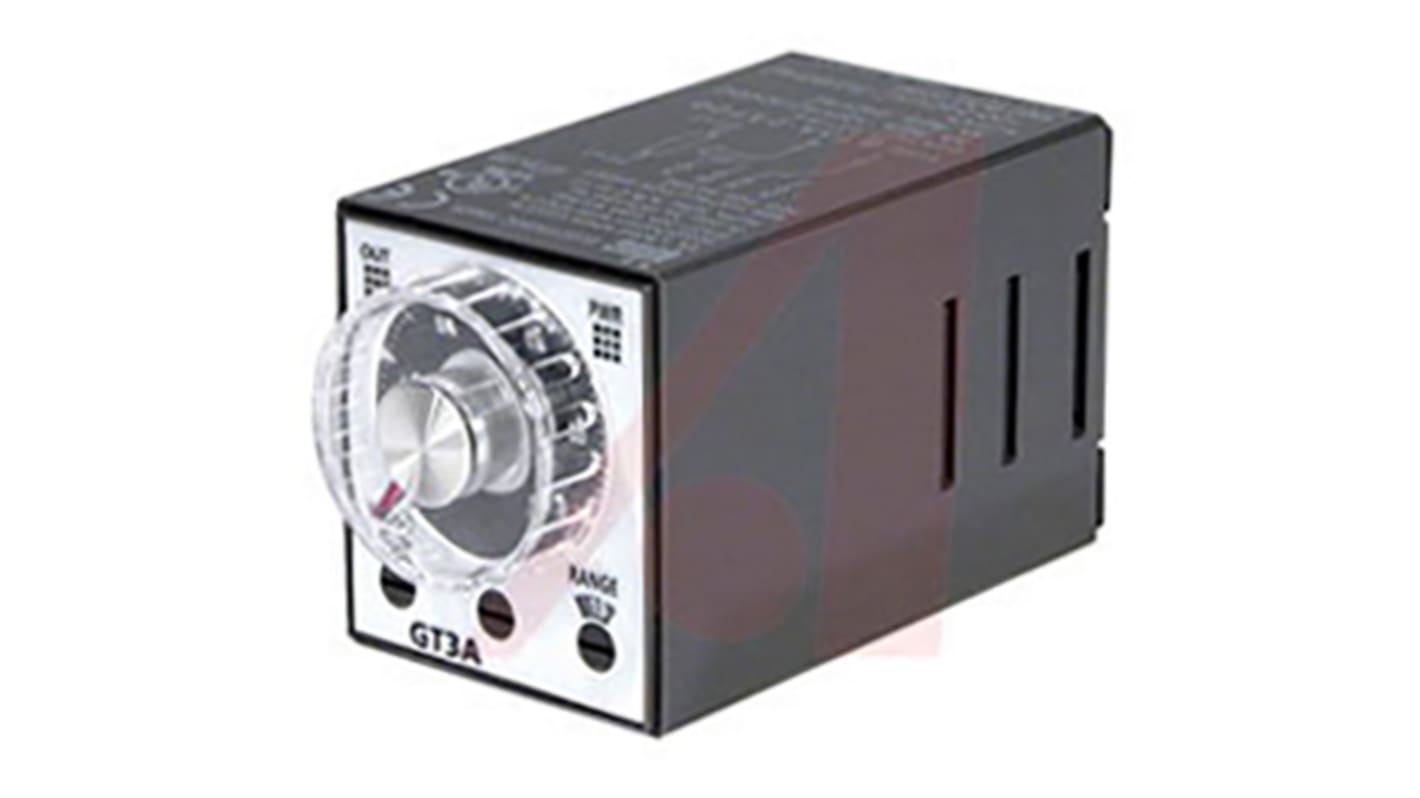

Idec Plug In Multi Function Timer Relay, 24V ac/dc, DPDT, 0.1 s → 180h
- RS庫存編號:
- 832-5423
- 製造零件編號:
- GT3A-2AD24
- 製造商:
- Idec
查看所有Timer Relays
- RS庫存編號:
- 832-5423
- 製造零件編號:
- GT3A-2AD24
- 製造商:
- Idec
不適用
- COO (Country of Origin):
- CN
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- CN
產品詳細資訊
The IDEC GT3A series, GT3A-2AD24 is a 8 pin, plug-in, DPDT (delayed SPDT contact + instantaneous SPDT), multi-function timer having 24V AC/24V DC operating voltage. It has time range between 0.1s - 180 hours and output of 240V AC, 3A, 120V AC/ 30V DC, 5A.
Large variety of timing functions
Power and output status indicating LEDs
Mountable in sockets or flush panels
On Delay, Interval ON, Cycle OFF, Cycle ON
24VAC/DC Delayed SPDT+SPDT 01.s-180h
Power and output status indicating LEDs
Mountable in sockets or flush panels
On Delay, Interval ON, Cycle OFF, Cycle ON
24VAC/DC Delayed SPDT+SPDT 01.s-180h
規格
| Attribute | Value |
| Supply Voltage | 24V ac/dc |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Time Range | 0.1 s → 180h |
| Mode of Operation | Cycle OFF, Cycle ON, Interval ON, ON Delay |
| Number of Timer Functions | Multi Function |
| Contact Configuration | DPDT |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | 3A |
| Power Supply | External |
| Terminal Type | Plug In |
| Length | 36mm |
| Depth | 72.2mm |
| Width | 40mm |
| Switch Configuration | SPDT |
| Maximum Operating Temperature | +50°C |
| Time Delay | (Reset) 60ms |
| Minimum Operating Temperature | -10°C |
