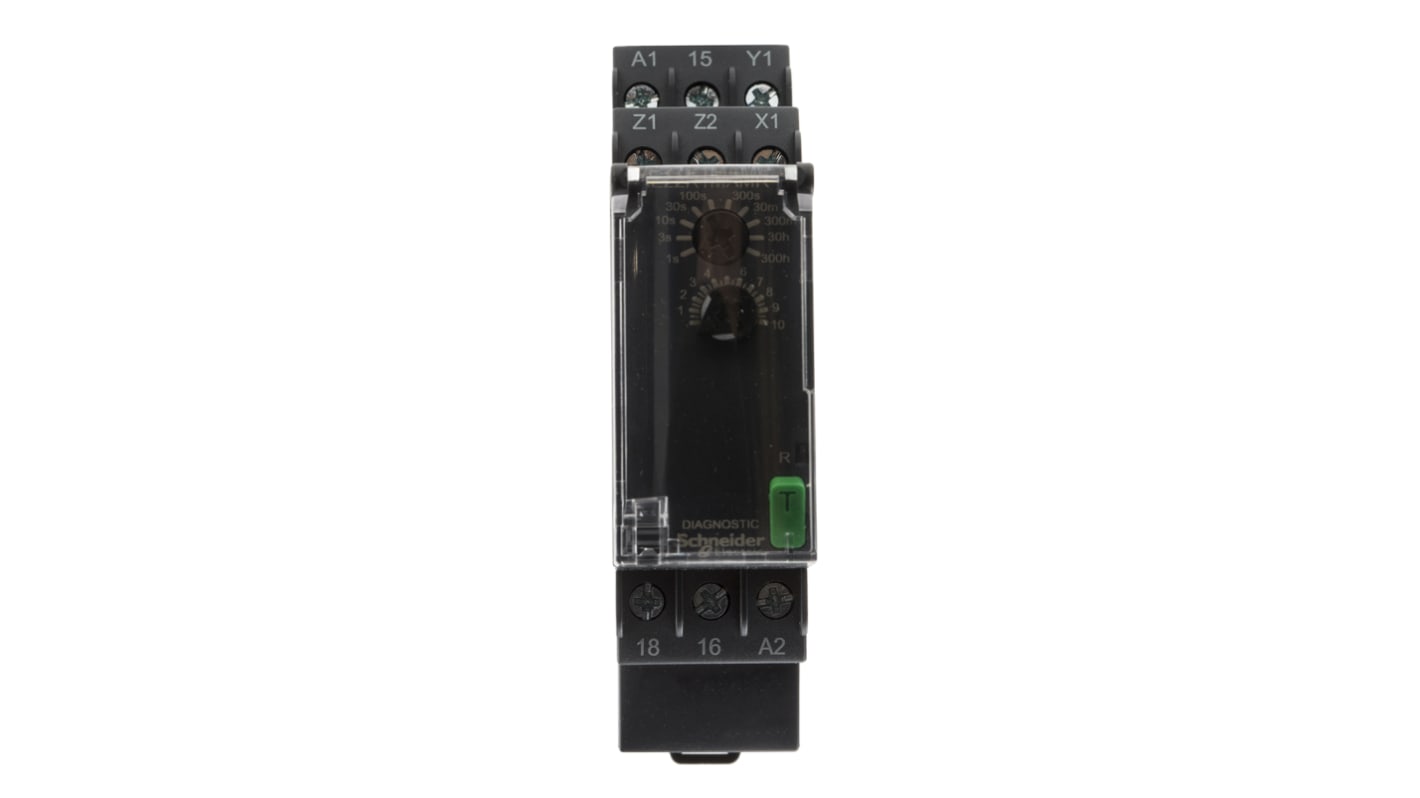

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 → 1s,
- RS庫存編號:
- 897-6716
- Distrelec 貨號:
- 303-02-783
- 製造零件編號:
- RE22R1MAMR
- 製造商:
- Schneider Electric
可享批量折扣
小計（1 件）*
HK$698.80
添加 1 件 件可免費送貨
有庫存
- 5 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$698.80 |
| 5 - 9 | HK$670.80 |
| 10 + | HK$657.40 |
* 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 897-6716
- Distrelec 貨號:
- 303-02-783
- 製造零件編號:
- RE22R1MAMR
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Supply Voltage | 24 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | ON Delay | |
| Time Range | 0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 8A | |
| Maximum Voltage | 240V ac/dc | |
| Switch Configuration | SPCO | |
| Terminal Type | Screw | |
| Power Supply | External | |
| Minimum Voltage | 24V ac/dc | |
| Width | 90mm | |
| Minimum Current | 10mA | |
| Depth | 79.5mm | |
| Maximum Operating Temperature | +60°C | |
| Length | 22.9mm | |
| Series | Harmony Time | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Time Delay | <100ms | |
| Minimum Operating Temperature | -20°C | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Supply Voltage 24 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation ON Delay | ||
Time Range 0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 8A | ||
Maximum Voltage 240V ac/dc | ||
Switch Configuration SPCO | ||
Terminal Type Screw | ||
Power Supply External | ||
Minimum Voltage 24V ac/dc | ||
Width 90mm | ||
Minimum Current 10mA | ||
Depth 79.5mm | ||
Maximum Operating Temperature +60°C | ||
Length 22.9mm | ||
Series Harmony Time | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Time Delay <100ms | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- ID
On-Delay Timers- RE22 Series
22.5 mm profile width
Screw terminals connection
Operating voltage of 24 → 240 V ac
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Operating temperature of -20 → 60 °C
Self-extinguishing housing
Ingress protection of IP50 (front face), IP40 (housing) and IP20 (terminal block)
Screw terminals connection
Operating voltage of 24 → 240 V ac
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Operating temperature of -20 → 60 °C
Self-extinguishing housing
Ingress protection of IP50 (front face), IP40 (housing) and IP20 (terminal block)
