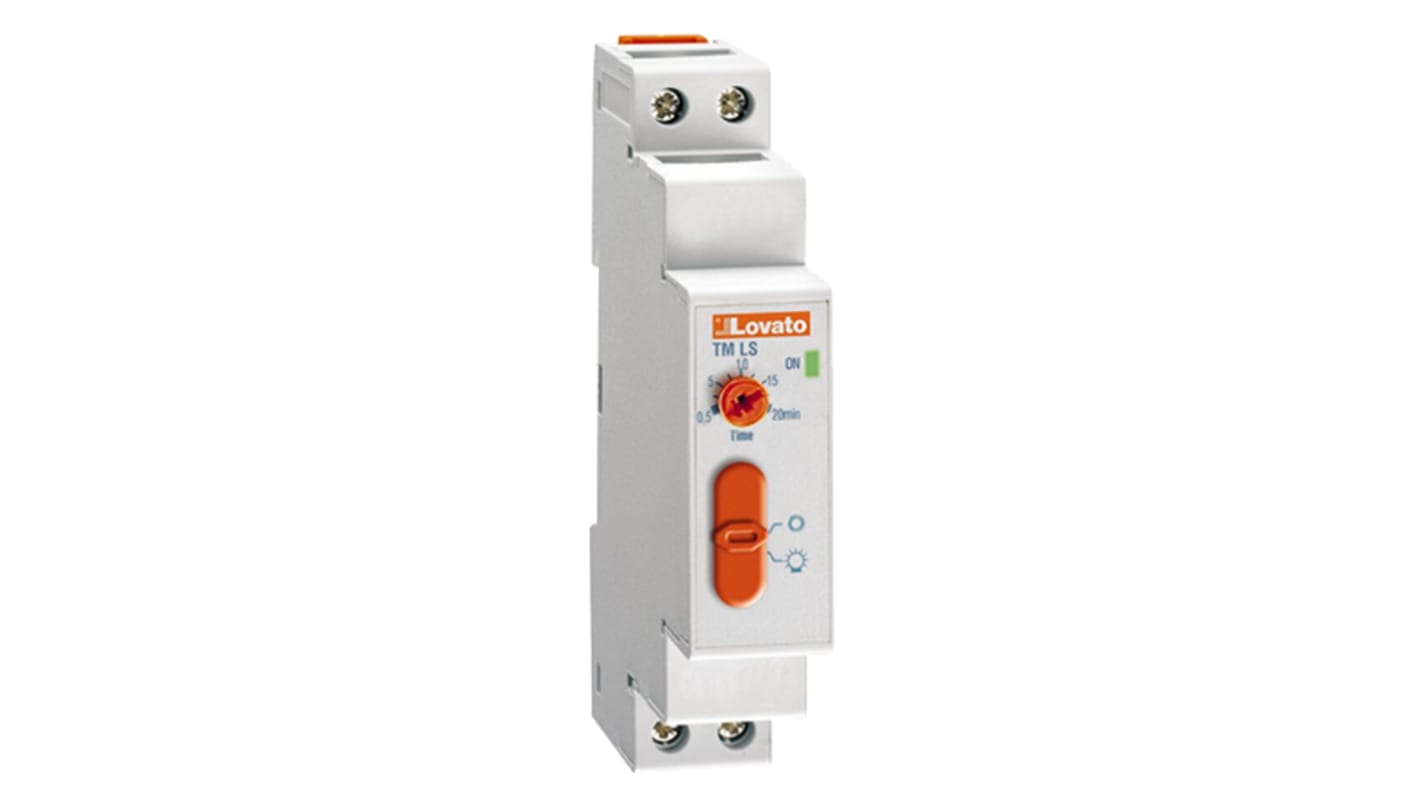

Lovato TMLS Series DIN Rail Timer Relay, 1-Contact, 12 to 240 V dc 220V ac, 240 V ac, 0.5 to 20 min, 1-Function, SPST
- RS庫存編號:
- 905-3488
- 製造零件編號:
- TMLS
- 製造商:
- Lovato
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 905-3488
- 製造零件編號:
- TMLS
- 製造商:
- Lovato
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Lovato | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Timer | |
| Time Range | 0.5 to 20 min | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 240V ac | |
| Contact Configuration | SPST | |
| IP Rating | IP40 | |
| Supply AC Voltage | 220, 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 16A | |
| Supply DC Voltage | 12 to 240 V dc | |
| Mode | Staircase Timer | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Width | 104.7mm | |
| Standards/Approvals | IEC/EN 61812-1, IEC/EN 60068-2-6, IEC/EN 61000-6-2, IEC/EN 60028-2-61, CSA C22.2 N°14, IEC/EN 60068-2-27, IEC/EN 61000-6-3, EAC, UL 508, cULus | |
| Length | 17.5mm | |
| Height | 64.9mm | |
| Series | TMLS | |
| 選取全部 | ||
|---|---|---|
品牌 Lovato | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Timer | ||
Time Range 0.5 to 20 min | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Switching Voltage 240V ac | ||
Contact Configuration SPST | ||
IP Rating IP40 | ||
Supply AC Voltage 220, 240V ac | ||
Minimum Operating Temperature -20°C | ||
Contact Current 16A | ||
Supply DC Voltage 12 to 240 V dc | ||
Mode Staircase Timer | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Width 104.7mm | ||
Standards/Approvals IEC/EN 61812-1, IEC/EN 60068-2-6, IEC/EN 61000-6-2, IEC/EN 60028-2-61, CSA C22.2 N°14, IEC/EN 60068-2-27, IEC/EN 61000-6-3, EAC, UL 508, cULus | ||
Length 17.5mm | ||
Height 64.9mm | ||
Series TMLS | ||
不適用
- COO (Country of Origin):
- IT
Lovato TM Series Time Delay Relay
Lovato extends the range of electronic Time Delay Relays with new modular models of the TM series.
Models with multi-scale 0.1 seconds-100 days
Wide supply voltage range 12-440V
Excellent time accuracy and stability
Immunity to industrial ambient noise
Operating temperature -20̊C - +60̊C
Robust modular DIN 43880 housing, one module
35mm DIN rail mounting or screw fixing by extricable clips
Conductor section 0.2-4mm²
Reliable in most server operating conditions
TMLS model (extra features)
Connection with up to 50 light-up switches (maximum)
Suitable for 3 or 4-wire systems
1 slide switch for manual or automatic operation (constant lighting)
