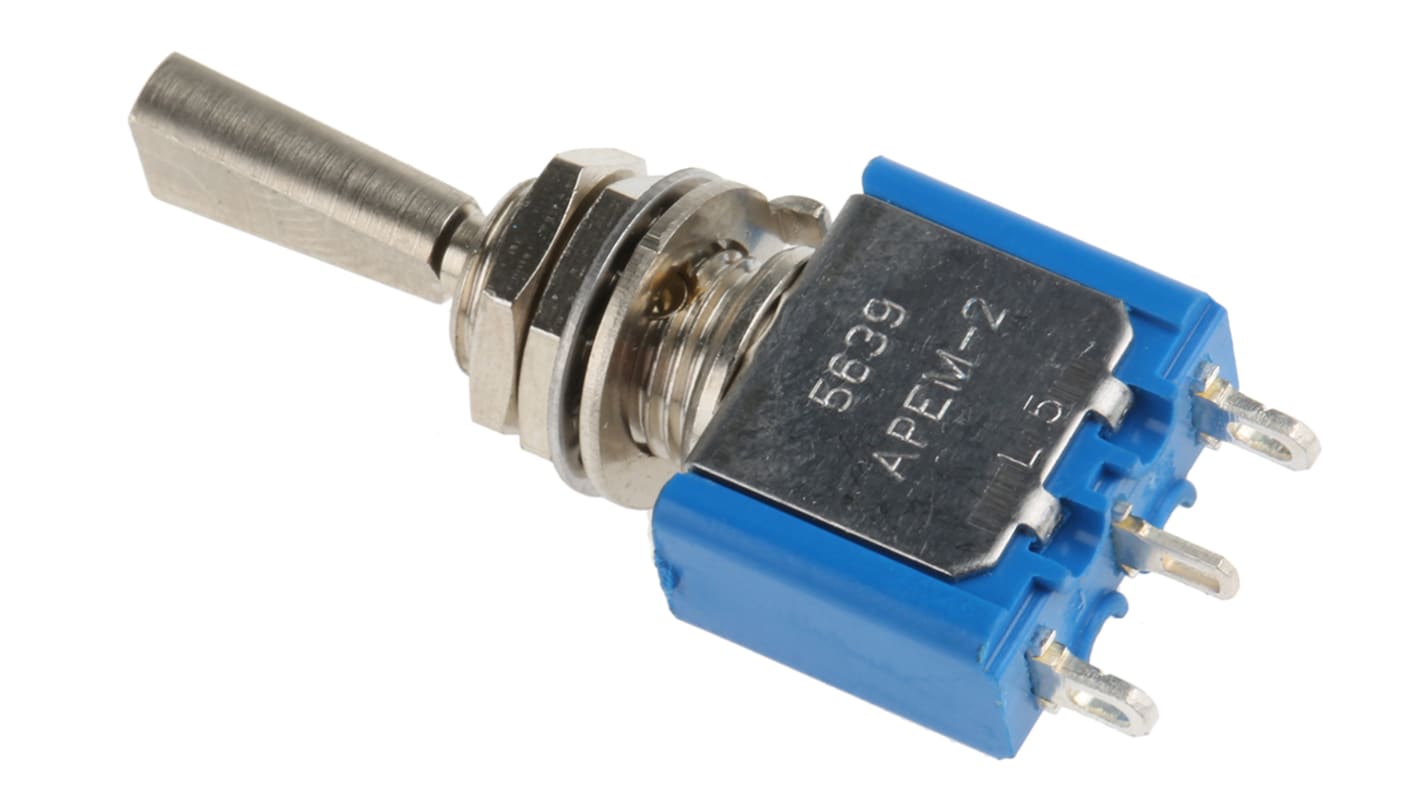

APEM Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal
- RS庫存編號:
- 320-922
- 製造零件編號:
- 5639A9
- 製造商:
- APEM
查看所有Toggle Switches
1617 現貨庫存，可於3工作日發貨。
單價 個
HK$93.95
| 單位 | Per unit |
| 1 - 24 | HK$93.95 |
| 25 - 99 | HK$91.12 |
| 100 - 249 | HK$88.31 |
| 250 - 499 | HK$86.43 |
| 500 + | HK$84.56 |
- RS庫存編號:
- 320-922
- 製造零件編號:
- 5639A9
- 製造商:
- APEM
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
Toggle Switches, Flat Lever
Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Silver contacts
Panel cut-out 6.5 mm
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Silver contacts
Panel cut-out 6.5 mm
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
Approvals
UL; CSA; CECC; LNZ; GAM T1; (Europe); MUAHAG; NATO; VDE
規格
| Attribute | Value |
| Contact Configuration | SP |
| Switch Operation | On-Off-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Length | 11.4mm |
| Actuator Material | Brass |
| Contact Material | Silver |
| Contact Resistance | 0.01Ω |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operacje |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
