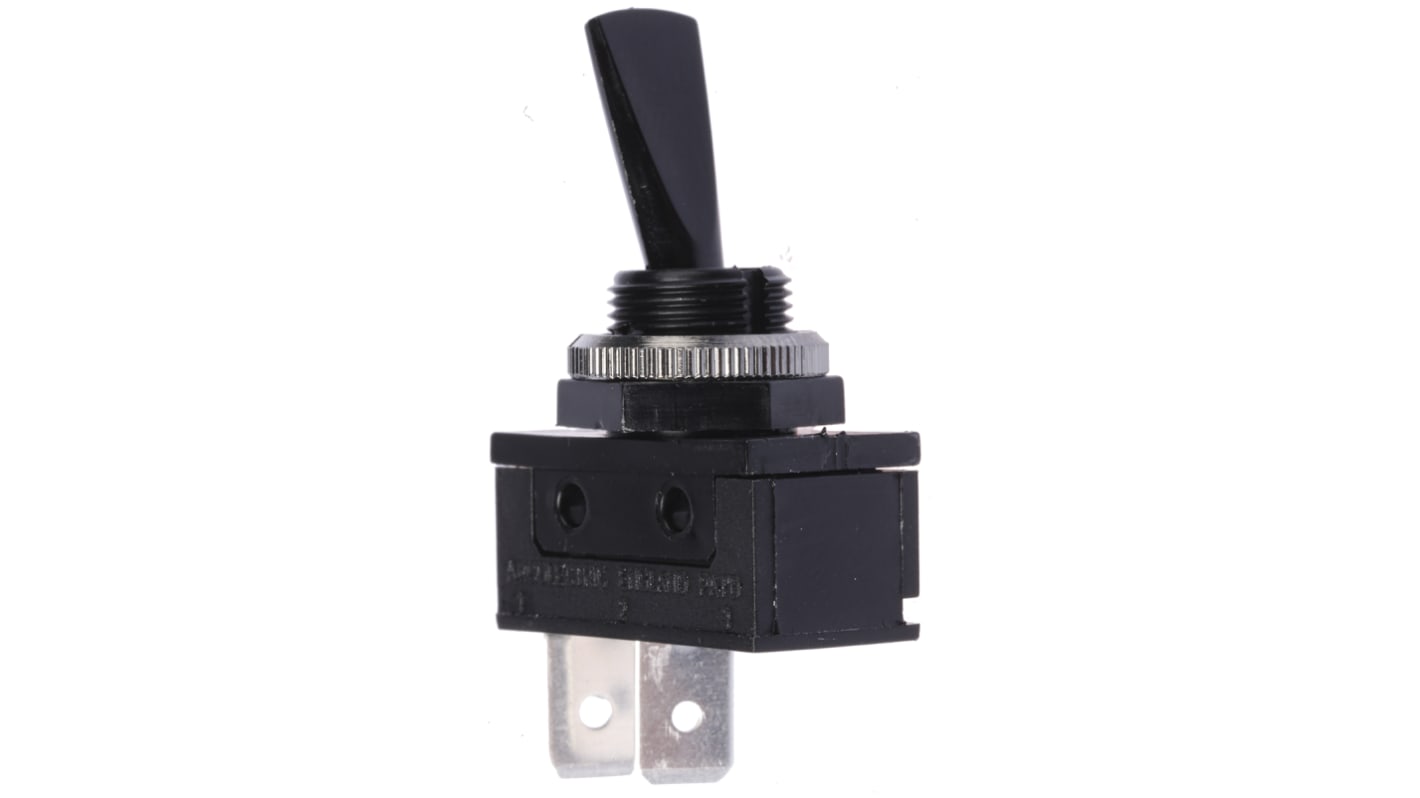

    Arcolectric (Bulgin) Ltd Toggle Switch, Panel Mount, Latching, SPST, Tab Terminal

    RS庫存編號:
    350-204
    製造零件編號:
    C1700HOAAG
    製造商:
    Arcolectric (Bulgin) Ltd
    Arcolectric (Bulgin) Ltd
    查看所有Toggle Switches
    123 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    原價 HK$54.54

    您付款

    HK$43.42

    單位Per unit
    1 - 24HK$43.42
    25 - 49HK$42.54
    50 - 99HK$41.36
    100 - 249HK$40.73
    250 +HK$40.20
    RS庫存編號:
    350-204
    製造零件編號:
    C1700HOAAG
    製造商:
    Arcolectric (Bulgin) Ltd
    COO (Country of Origin):
    TN

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    TN

    產品詳細資訊

    Toggle Switches, Std, 16 A Insulated


    Insulated toggle switches, moulded in nylon 6.6 and BEAB approved to EN61058-1
    Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
    For use where metal switches are unsuitable
    Suitable for Class II double insulated equipment
    IP40
    Polycarbonate actuator and Nylon 6.6 case


    Note

    For biased switches '(on)' refers to momentary 'on' position

    Approvals

    ENEC, UL recognised component, CSA certified

    Approvals

    ENEC, UL recognised component, CSA certified


    規格

    AttributeValue
    Contact ConfigurationSPST
    Switch OperationLatching
    Contact Current Rating16 A @ 250 V ac
    Mounting TypePanel Mount
    Terminal TypeTab
    IP RatingIP40
    Panel Cut Out Diameter12.7мм
    Actuator Length16.4мм
    Actuator MaterialPC
    Panel Cut Out Size12.7мм
    Contact Resistance100mΩ
    Contact MaterialSilver Alloy
    Maximum Operating Temperature+85°C
    Operating Temperature RangeMaximum of +85°C
