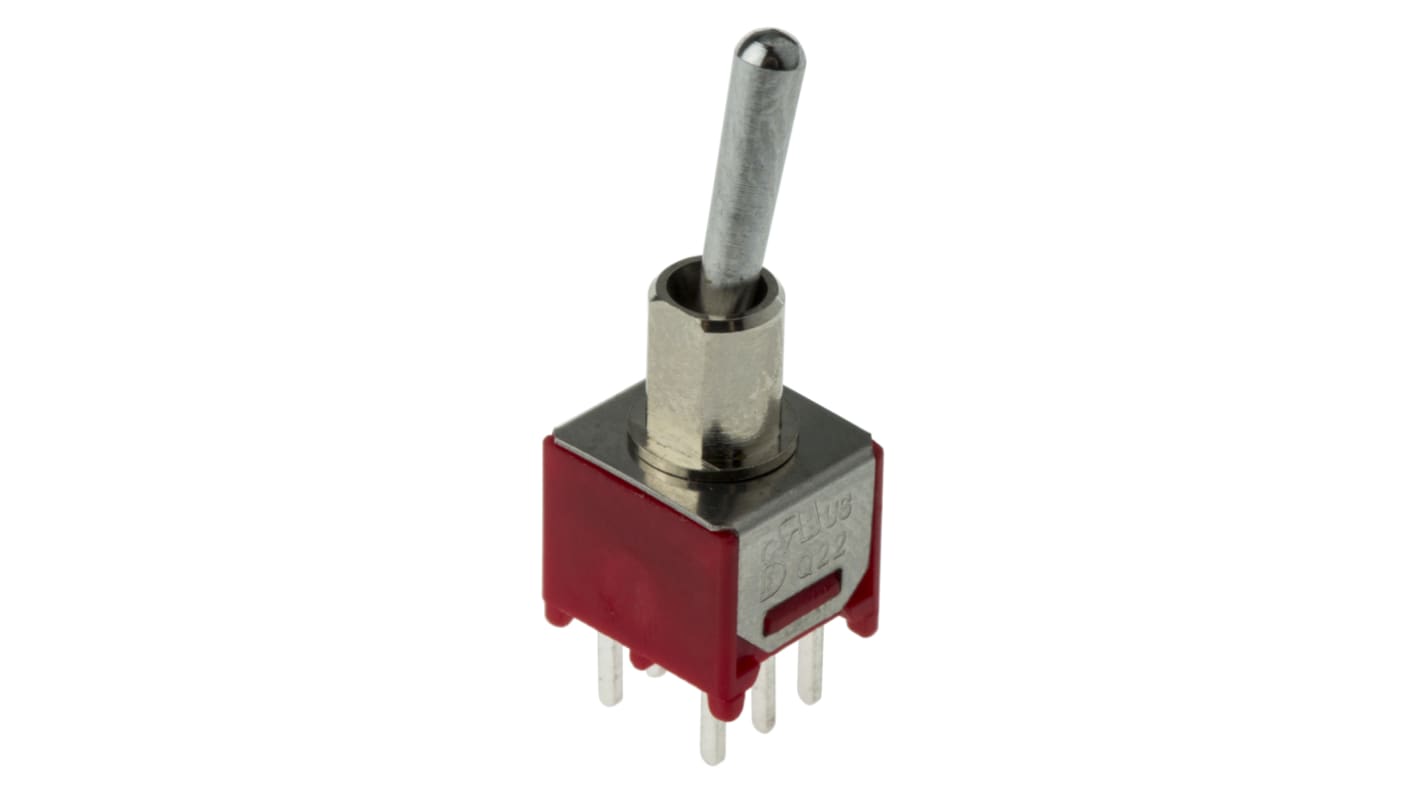

RS PRO Toggle Switch, PCB Mount, On-On, DPDT, Through Hole Terminal, 15 V dc, 240 V ac
- RS庫存編號:
- 734-7179
- 製造商:
- RS PRO
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 袋，共 10 件）*
HK$203.24
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 10 個，準備發貨
單位 | 每單位 | 每袋* |
|---|---|---|
| 10 - 490 | HK$20.324 | HK$203.24 |
| 500 - 990 | HK$19.715 | HK$197.15 |
| 1000 - 2490 | HK$19.106 | HK$191.06 |
| 2500 - 12490 | HK$18.698 | HK$186.98 |
| 12500 + | HK$15.389 | HK$153.89 |
* 參考價格
- RS庫存編號:
- 734-7179
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Toggle Switch | |
| Contact Configuration | DPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 3A | |
| Mount Type | PCB | |
| Terminal Type | Through Hole | |
| IP Rating | IP66, IP56 | |
| Illuminated | No | |
| Panel Cutout Size | 4.95 mm | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 9.4mm | |
| Contact DC Voltage | 15V dc | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Chrome Plated Brass | |
| Switch Configuration | On-Off-On | |
| Standards/Approvals | UL, RoHS, CSA, CE | |
| Mechanical Life | 30000Cycles | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Toggle Switch | ||
Contact Configuration DPDT | ||
Switch Operation On-On | ||
Switch Contact Current 3A | ||
Mount Type PCB | ||
Terminal Type Through Hole | ||
IP Rating IP66, IP56 | ||
Illuminated No | ||
Panel Cutout Size 4.95 mm | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 9.4mm | ||
Contact DC Voltage 15V dc | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Chrome Plated Brass | ||
Switch Configuration On-Off-On | ||
Standards/Approvals UL, RoHS, CSA, CE | ||
Mechanical Life 30000Cycles | ||
Toggle Switches, Sub-Miniature - RS Series
RS series of sub-miniature toggle switches with a low contact resistance and are available with either Silver (Q) or Gold (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
