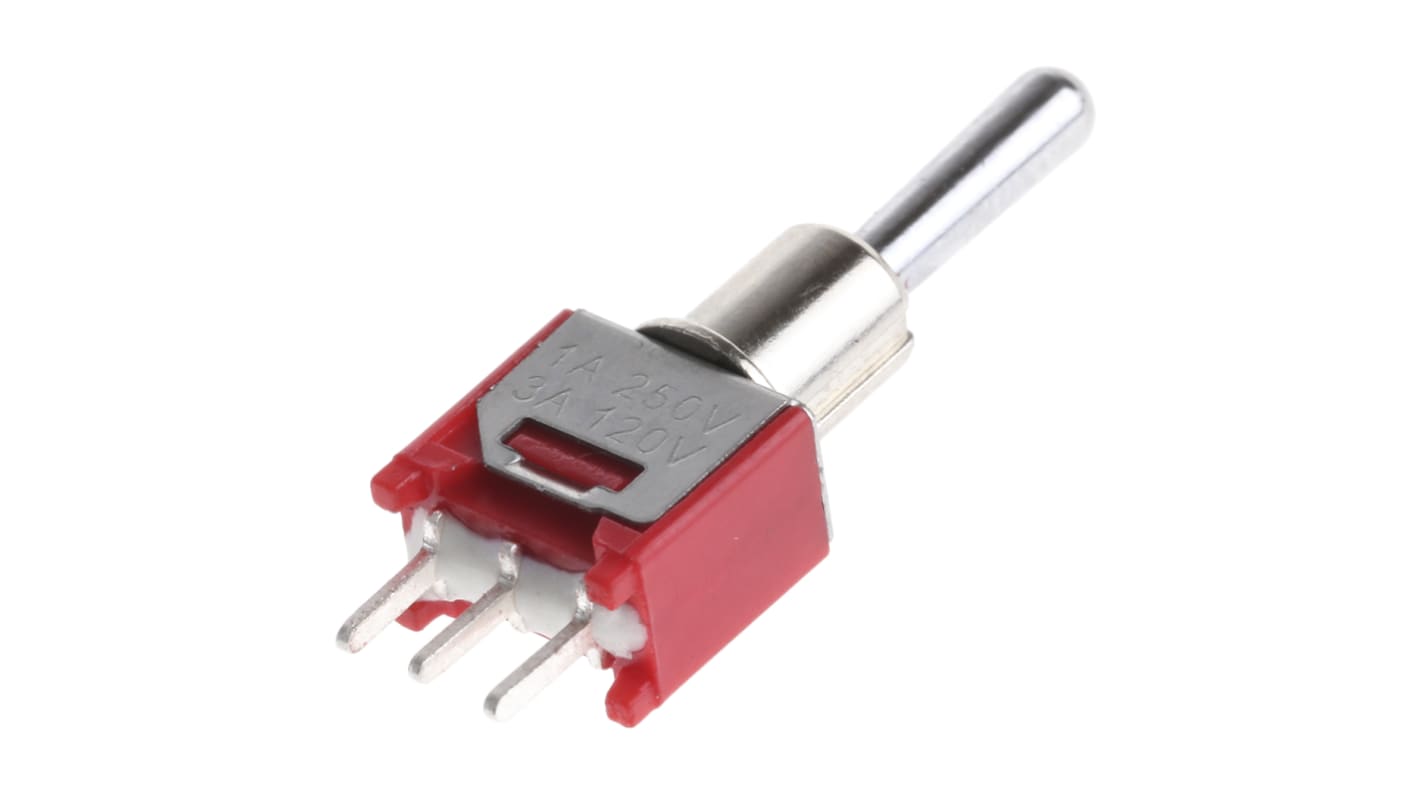

RS PRO Toggle Switch, PCB Mount, On-Off-On, SPDT, Solder Terminal, 24 V dc, 240 V ac
- RS庫存編號:
- 734-7224
- Distrelec 貨號:
- 304-19-654
- 製造商:
- RS PRO
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 件）*
HK$39.50
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 209 件從 2026年8月17日 起發貨
- 加上 156 件從 2026年8月24日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$39.50 |
| 5 + | HK$32.60 |
* 參考價格
Sponsored
- RS庫存編號:
- 734-7224
- Distrelec 貨號:
- 304-19-654
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off-On | |
| Switch Contact Current | 3A | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| IP Rating | IP66, IP56 | |
| Illuminated | No | |
| Panel Cutout Size | 4.95 mm | |
| Actuator Length | 9.4mm | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 240V ac | |
| Contact DC Voltage | 24V dc | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Chrome Plated Brass | |
| Switch Configuration | On-None-On | |
| Standards/Approvals | RoHS | |
| Mechanical Life | 30000Cycles | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-Off-On | ||
Switch Contact Current 3A | ||
Mount Type PCB | ||
Terminal Type Solder | ||
IP Rating IP66, IP56 | ||
Illuminated No | ||
Panel Cutout Size 4.95 mm | ||
Actuator Length 9.4mm | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 240V ac | ||
Contact DC Voltage 24V dc | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Chrome Plated Brass | ||
Switch Configuration On-None-On | ||
Standards/Approvals RoHS | ||
Mechanical Life 30000Cycles | ||
Toggle Switches, Sub-Miniature - RS Series
RS series of sub-miniature toggle switches with a low contact resistance and are available with either Silver (Q) or Gold (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
