RS PRO Data Cable, 2 Pairs, 0.75 mm², 100 m, Grey Sheath Polyvinyl Chloride
- RS庫存編號:
- 136-8215
- 製造商:
- RS PRO
可享批量折扣
小計(1 卷,共 100 米)*
HK$1,646.50
库存信息目前无法访问 - 请稍候查看
卷 | 每卷 | 每米* |
|---|---|---|
| 1 - 4 | HK$1,646.50 | HK$16.465 |
| 5 + | HK$1,355.10 | HK$13.551 |
* 參考價格
- RS庫存編號:
- 136-8215
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Number of Pairs | 2 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.75 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 5.7mm | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -30°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | Euroclass Eca | |
| Voltage | 300V | |
| Conductor Material | Copper | |
| Fire Behaviour | IEC 60332-1, Flame Retardant NF C 32-070/C2 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Number of Pairs 2 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.75 mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 5.7mm | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -30°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals Euroclass Eca | ||
Voltage 300V | ||
Conductor Material Copper | ||
Fire Behaviour IEC 60332-1, Flame Retardant NF C 32-070/C2 | ||

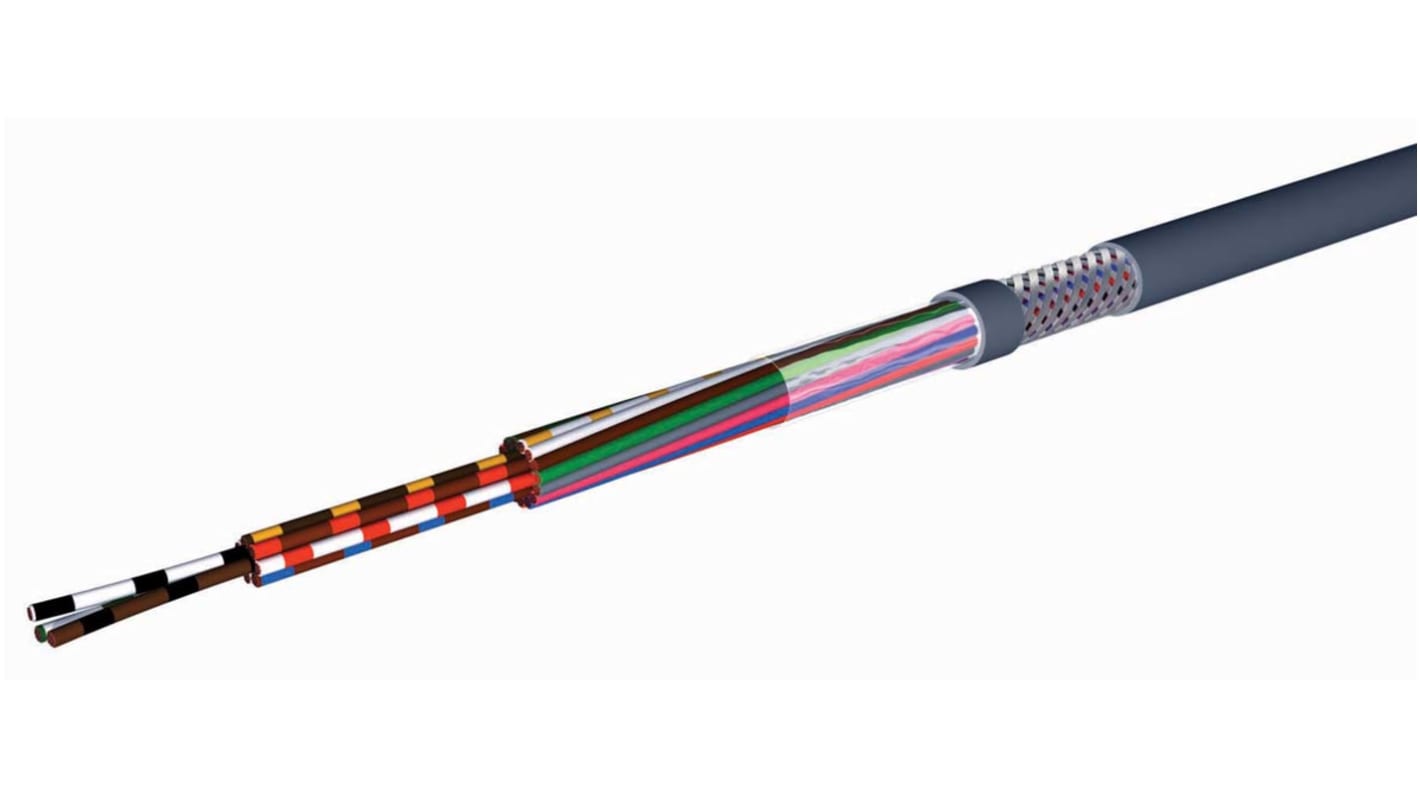

RS PRO LIYCY Shielded Control Cable (100m)
A hardwearing and shielded data transmission cable for controlling and connecting analogue transmission and digital signal cable. A shielded control cable is particularly suited to process control and industrial automation environments including applications including measurement and control technologies. ;Equipped with a flexible core the LIYCY cable is ideal for fixed and mobile applications, undefined cable routing without tensile force or forced guidance.;The multicore cables bare Copper conductors provide excellent conductivity and are protected by a layer of PVC insulation and tinned Copper Braided for protection against interference and minimum signal loss ensuring excellent reliability and performance.;A hardwearing multicore cable wrapped in PVC sheath and suitable for industrial applications.
Features and Benefits
LIYCY Cable
3 core cable
Copper contacts
PVC insulation
PVC sheath
Un-terminated
Wide operating temperature range of -30 to 70°C
100m in length
Standards and Approvals: IEC 60332-1, IEC 60228, class 5
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
