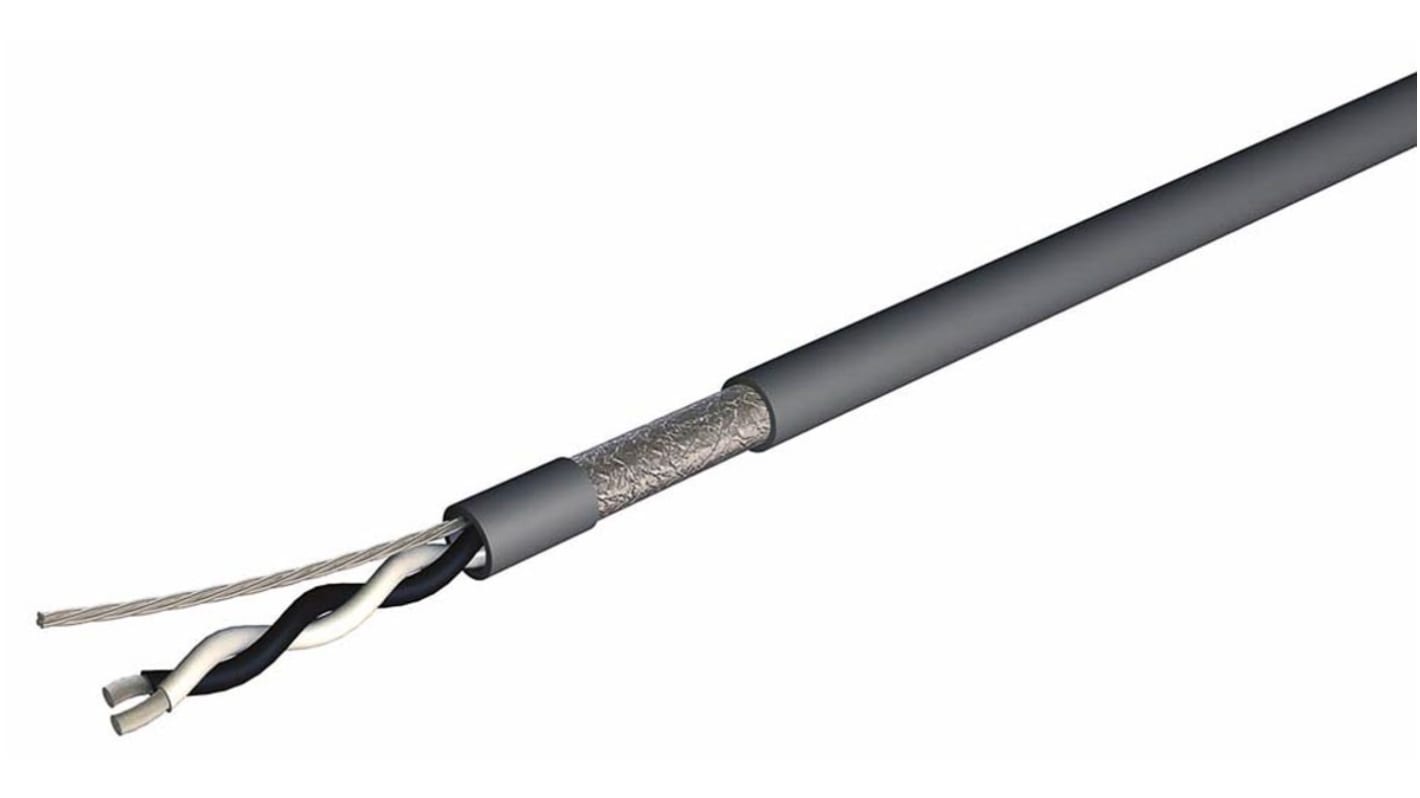

RS PRO LCAE-MPIS Series Data Cable, 100 m, Grey Sheath Low Smoke Zero Halogen
- RS庫存編號:
- 201-0524
- 製造商:
- RS PRO
可享批量折扣
小計(1 卷,共 100 米)*
HK$1,204.43
库存信息目前无法访问 - 请稍候查看
卷 | 每卷 | 每米* |
|---|---|---|
| 1 - 4 | HK$1,204.43 | HK$12.044 |
| 5 + | HK$991.24 | HK$9.912 |
* 參考價格
- RS庫存編號:
- 201-0524
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Data Cable | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 4.4mm | |
| Jacket Material | Low Smoke Zero Halogen | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60754-1, IEC 60754-2 | |
| Series | LCAE-MPIS | |
| Conductor Material | Stranded Tinned Copper | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant | |
| Core Strands | 7 | |
| Voltage | 300V | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Data Cable | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 4.4mm | ||
Jacket Material Low Smoke Zero Halogen | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60754-1, IEC 60754-2 | ||
Series LCAE-MPIS | ||
Conductor Material Stranded Tinned Copper | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH), Flame Retardant | ||
Core Strands 7 | ||
Voltage 300V | ||
- COO (Country of Origin):
- CN
RS PRO Multicore Cable
Introducing the range of RS PRO multicore cables, ideal for use across a wide variety of control and signal transmission applications. The flexible cable has a multicore that can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high quality range of multicore cables, tripping hazards can be drastically reduced while improving the overall appearance of electrical equipment, especially in areas where there is little space, or the cable installation is visible to individuals.
Features and Benefits:
Applications:
Multicore cables are electrical cables that have more cores than standard power or coaxial cables and are available in various lengths and cores, dependent on the applications they are being used for. They are ideal for using when there is little space or for organising cable installations that require multiple cabling connections, especially within industrial or entertainment applications. Multicore cables are found in many different environments, for example:
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Note:
Please be aware, although these cables are electrical, they are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.
