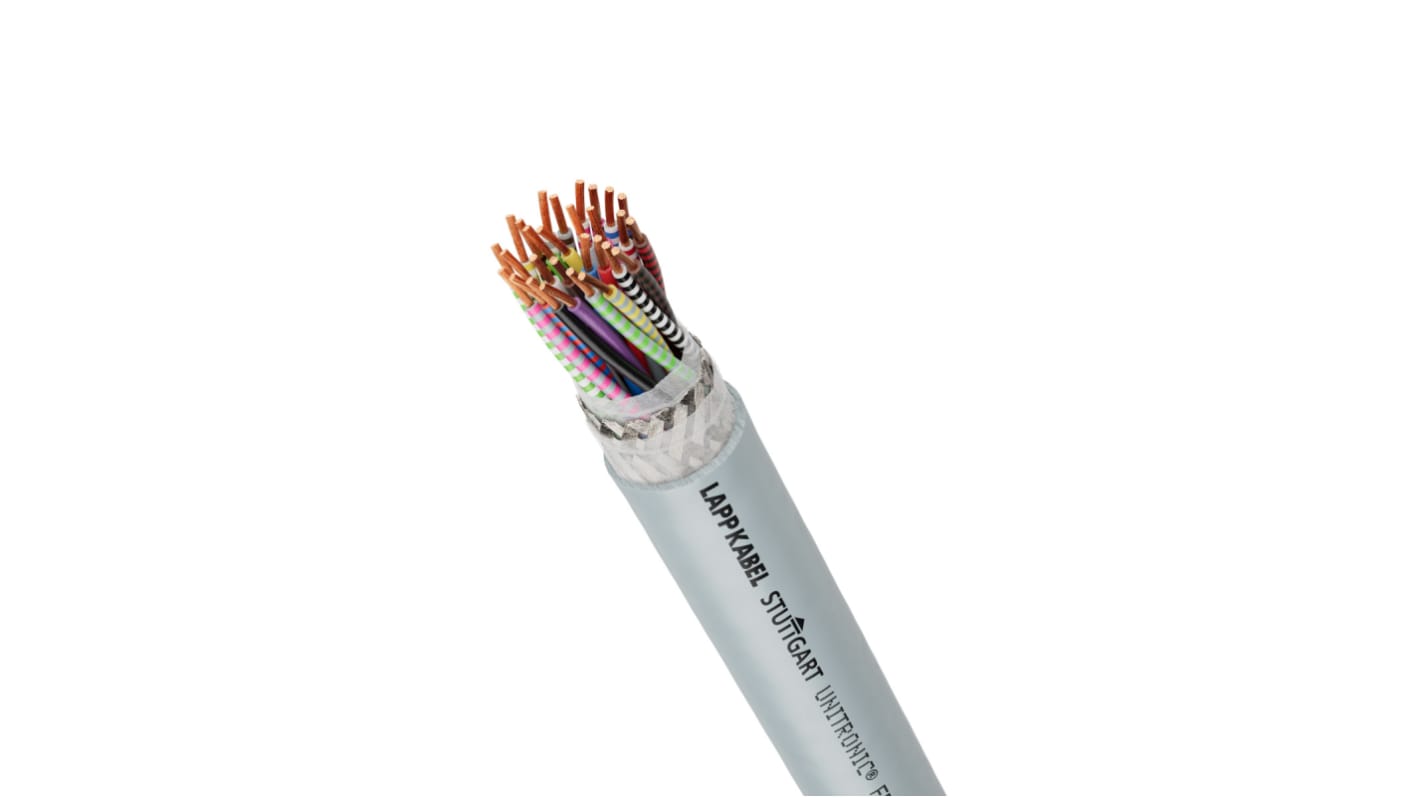

Lapp Data Cable, 6 Pairs, 0.25 mm², 100 m, Grey Sheath Polyurethane

RS庫存編號:: 280-2805
製造零件編號:: 11139512
製造商:: Lapp

Lapp Data Cable, 6 Pairs, 0.25 mm², 100 m, Grey Sheath Polyurethane

小計（1 卷，共 100 米）*

HK$9,348.08

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2026年7月08日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

卷	每卷	每米*
1 +	HK$9,348.08	HK$93.481

* 參考價格

RS庫存編號:: 280-2805
製造零件編號:: 11139512
製造商:: Lapp

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Lapp
	Number of Pairs	6
	Product Type	Data Cable
	Cross Sectional Area	0.25 mm²
	Cable Length	100m
	Jacket Colour	Grey
	Conductor Type	Stranded
	Jacket Material	Polyurethane
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Standards/Approvals	EN 50288-7, VD0812, DIN ISO 16016, UL AWM Styl11117 and 21576
	Fire Behaviour	Flame Retardant
	Conductor Material	Bare Copper

	選取全部
	品牌 Lapp
	Number of Pairs 6
	Product Type Data Cable
	Cross Sectional Area 0.25 mm²
	Cable Length 100m
	Jacket Colour Grey
	Conductor Type Stranded
	Jacket Material Polyurethane
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Standards/Approvals EN 50288-7, VD0812, DIN ISO 16016, UL AWM Styl11117 and 21576
	Fire Behaviour Flame Retardant
	Conductor Material Bare Copper

Datasheet - 11139512

The Lapp data cable is Suitable for use in measuring, control and regulating circuits, Linear robots, automated handling equipment. It has Sophisticated design for high-performance chain/ track use. It is used in chain or carrier. It is suitable for torsional applications which are typical for the loop in wind turbine generators (WTG).

Extra fine wire strand made of bare copper wires

Core insulation based on Polyolefin

TP structure

Non woven wrapping

Tinned copper braiding

Outer sheath made of special PUR compound

Outer sheath colour grey

Lapp Data Cable, 6 Pairs, 0.25 mm², 100 m, Grey Sheath Polyurethane
