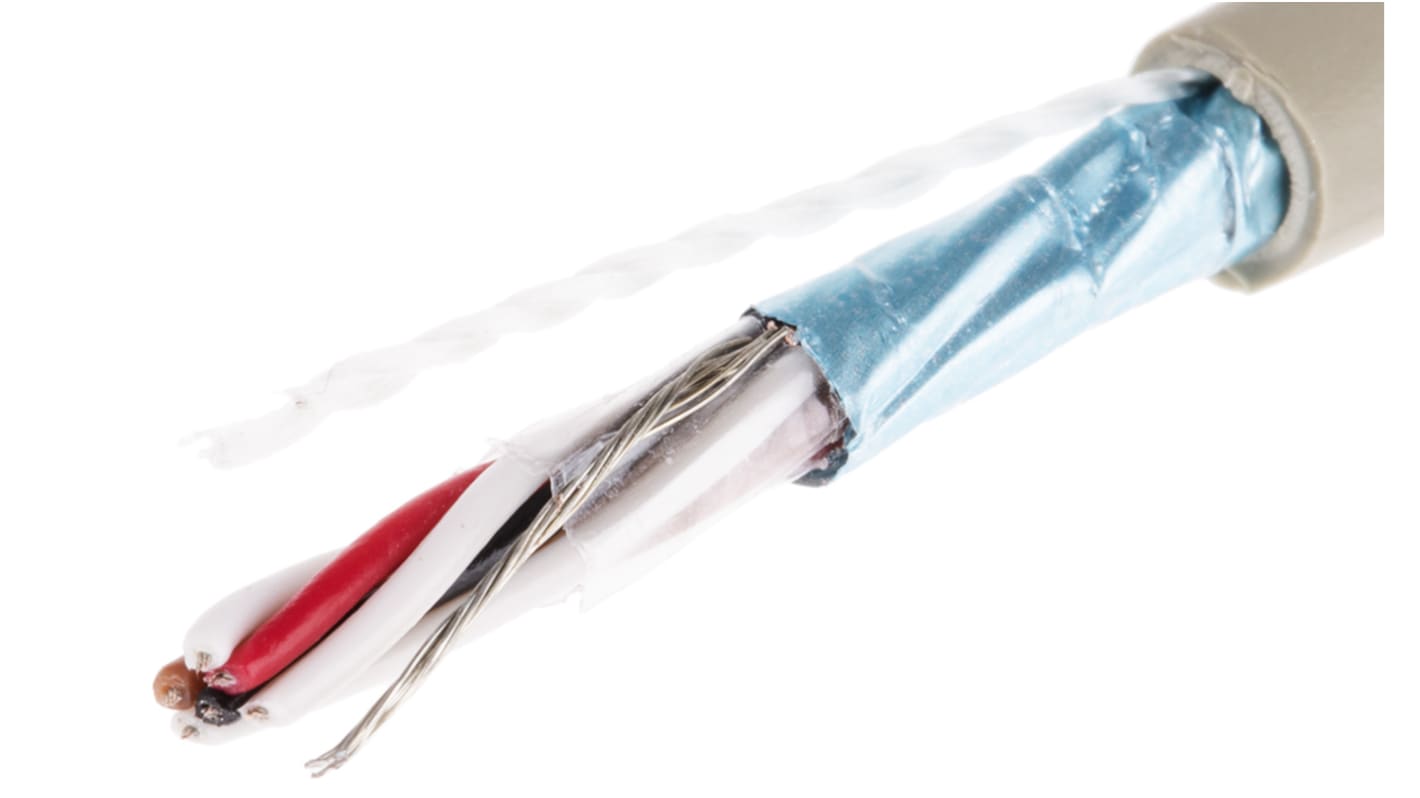

Alpha Wire Pro-Tekt Series Data Cable 3 Pairs 6 Cores 0.09 mm² 50 m Grey Sheath Polyvinyl Chloride
- RS庫存編號:
- 740-4793
- 製造零件編號:
- B961032 GE321
- 製造商:
- Alpha Wire
小計（1 卷，共 50 米）*
HK$3,316.80
訂單超過 HK$250.00 免費送貨
有庫存
- 4 件準備從其他地點送貨
- 加上 4 件從 2026年10月26日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$3,316.80 | HK$66.336 |
* 參考價格
- RS庫存編號:
- 740-4793
- 製造零件編號:
- B961032 GE321
- 製造商:
- Alpha Wire
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alpha Wire | |
| Product Type | Data Cable | |
| Number of Pairs | 3 | |
| Cross Sectional Area | 0.09mm² | |
| Number of Cores | 6 | |
| Cable Length | 50m | |
| Jacket Colour | Grey | |
| Outside Diameter | 4.95mm | |
| Minimum Operating Temperature | -30°C | |
| Conductor Type | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE, CSA Certified, UL | |
| Core Strands | 7 x 36AWG | |
| Size of Strands | 36AWG | |
| Number of Strands | 7 | |
| Fire Behaviour | Flame Retardant | |
| Conductor Material | Tin Copper Wire | |
| Series | Pro-Tekt | |
| Voltage | 300V | |
| 選取全部 | ||
|---|---|---|
品牌 Alpha Wire | ||
Product Type Data Cable | ||
Number of Pairs 3 | ||
Cross Sectional Area 0.09mm² | ||
Number of Cores 6 | ||
Cable Length 50m | ||
Jacket Colour Grey | ||
Outside Diameter 4.95mm | ||
Minimum Operating Temperature -30°C | ||
Conductor Type Copper | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE, CSA Certified, UL | ||
Core Strands 7 x 36AWG | ||
Size of Strands 36AWG | ||
Number of Strands 7 | ||
Fire Behaviour Flame Retardant | ||
Conductor Material Tin Copper Wire | ||
Series Pro-Tekt | ||
Voltage 300V | ||
Belden Pro-Tekt Series Data Cable, 50m Cable Length, 300V Voltage - B961032 GE321
This data cable is a 3-pair shielded communication cable designed for low-voltage industrial and automation signalling. It combines tin-plated multi-strand copper conductors and a PVC outer sheath to deliver dependable data transmission and Basic mechanical protection in electrical, electronics and mechanical system installations.
Features & Benefits
• 0.09mm² conductors provide Compact conductance and flexibility
• 7-strand copper construction enhances bendability under repeated flexing
• Alum/mylar overall foil with drain wire improves noise immunity
• Rated for 300V to suit low-voltage system requirements
• Flame retardant PVC jacket reduces flame propagation risk
• Temperature range -30°C to105°C supports varied ambient conditions
• 7-strand copper construction enhances bendability under repeated flexing
• Alum/mylar overall foil with drain wire improves noise immunity
• Rated for 300V to suit low-voltage system requirements
• Flame retardant PVC jacket reduces flame propagation risk
• Temperature range -30°C to105°C supports varied ambient conditions
**Applications**
• Suitable for industrial automation control signal routing
• Ideal for machine-to-machine communication links
• Used for cabinet internal wiring in electrical assemblies
• Can be used for instrumentation and sensor cable runs
• Used with low-voltage distribution and monitoring systems
• Ideal for machine-to-machine communication links
• Used for cabinet internal wiring in electrical assemblies
• Can be used for instrumentation and sensor cable runs
• Used with low-voltage distribution and monitoring systems
How is electromagnetic interference managed in this cable?
An overall aluminium/mylar foil shield with a dedicated drain conductor surrounds the cabled components to provide a return path and attenuate external interference.
What conductor and insulation construction is used for each pair?
Each conductor is a 7-strand tin-plated copper element sized to 0.09mm² with semi-rigid PVC insulation and pairs cabled with specified twist counts for controlled pair performance.
How does the cable handle mechanical installation stresses?
The multi-strand conductors and specified strand count provide improved flexibility, while a nominal PVC jacket and ripcord aid stripping and routing during installation.
What marking and regulatory information is present on the outer sheath?
The jacket is printed with manufacturer coding and temperature/voltage and includes identification consistent with recognised low-voltage and flame-behaviour standards.
