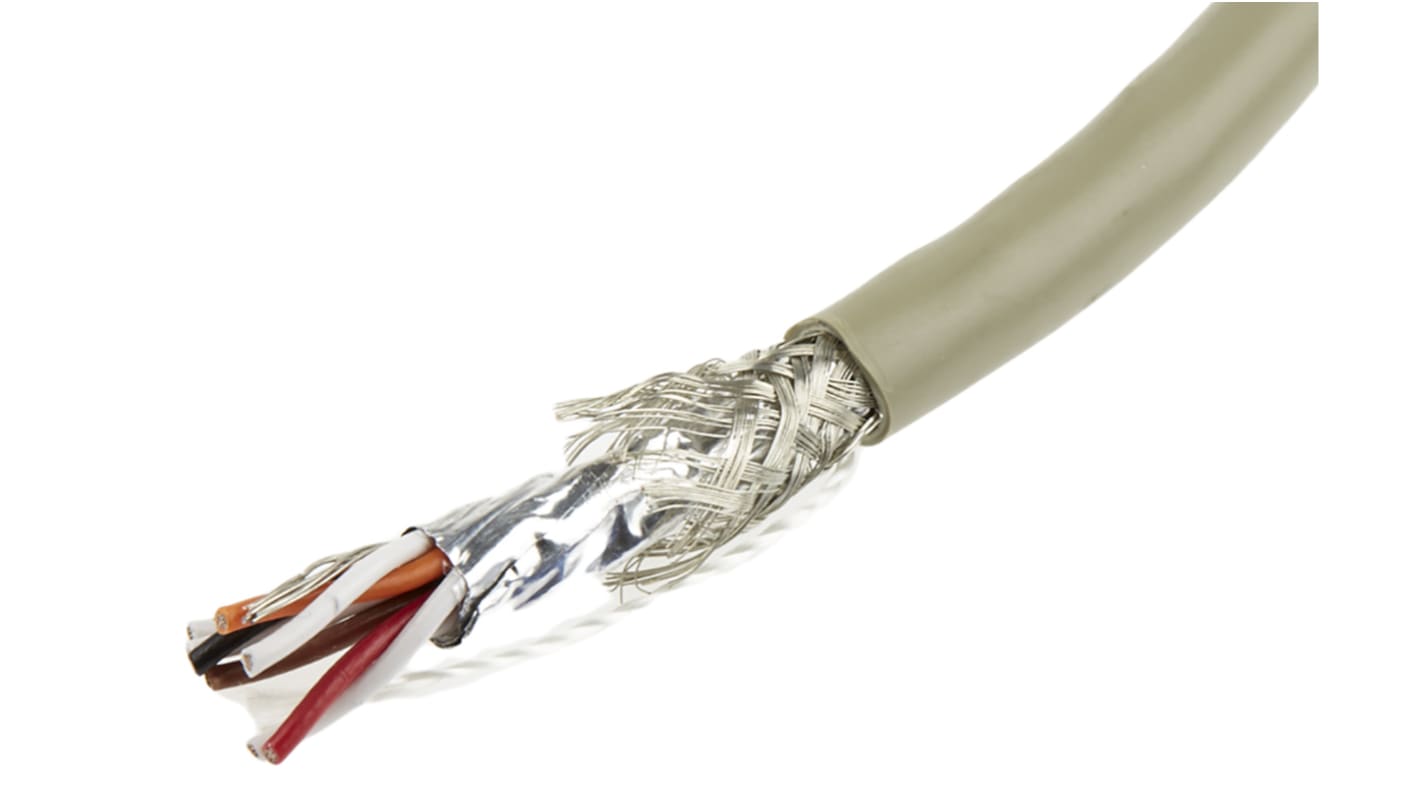

Alpha Wire ProTekt Series Data Cable, 4 Pairs, 8 Cores, 0.09 mm², Screened, 28 AWG, 50m, Foil and Braid Shield
- RS庫存編號:
- 740-4913
- 製造零件編號:
- B961044 GE321
- 製造商:
- Alpha Wire
小計(1 卷,共 50 米)**
HK$3,281.99
當前暫無庫存,可於2025/10/24發貨,3 工作日送達。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
卷 | 每卷 | 每米** |
---|---|---|
1 + | HK$3,281.99 | HK$65.64 |
** 參考價格
- RS庫存編號:
- 740-4913
- 製造零件編號:
- B961044 GE321
- 製造商:
- Alpha Wire
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
---|---|---|
品牌 | Alpha Wire | |
Number of Pairs | 4 | |
Cross Sectional Area | 0.09 mm² | |
Number of Cores | 8 | |
American Wire Gauge | 28 AWG | |
Screened/Unscreened | Screened | |
Length | 50m | |
Shield Type | Foil and Braid | |
Sheath Colour | Grey | |
Outer Diameter | 5.94mm | |
Outer Sheath Material | PVC | |
Cable Shape | Twisted Pair | |
Characteristic Impedance | 90 Ω | |
Standards Met | CE, CSA Certified, UL | |
Series | ProTekt | |
Fire Behaviour | Flame Retardant | |
Voltage Rating | 300 V | |
Core Strands | 7/36 AWG | |
選取全部 | ||
---|---|---|
品牌 Alpha Wire | ||
Number of Pairs 4 | ||
Cross Sectional Area 0.09 mm² | ||
Number of Cores 8 | ||
American Wire Gauge 28 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type Foil and Braid | ||
Sheath Colour Grey | ||
Outer Diameter 5.94mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 90 Ω | ||
Standards Met CE, CSA Certified, UL | ||
Series ProTekt | ||
Fire Behaviour Flame Retardant | ||
Voltage Rating 300 V | ||
Core Strands 7/36 AWG | ||
