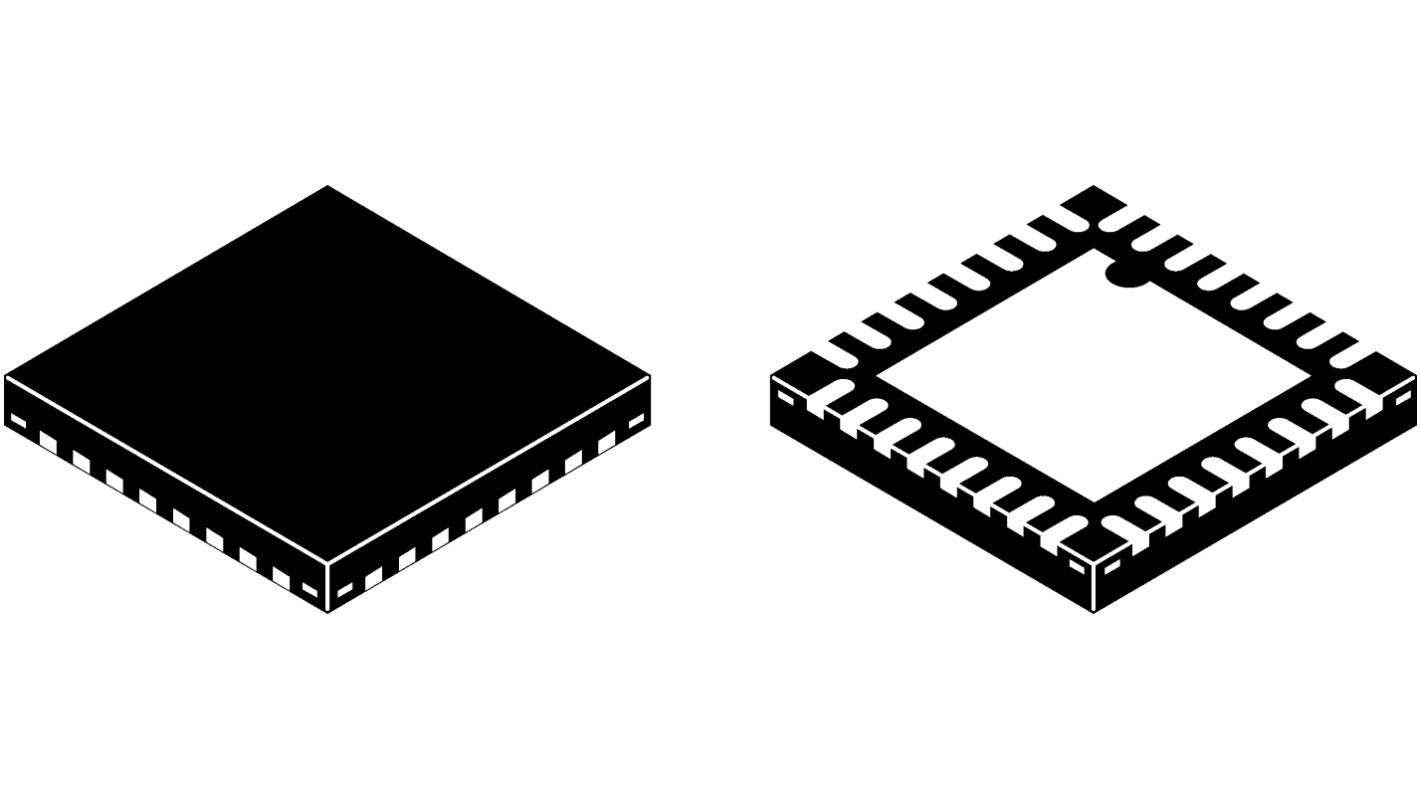

MaxLinear 1-Channel UART RS485 UART, RS422, RS232 32-Pin QFN
- RS庫存編號:
- 170-4470
- 製造零件編號:
- XR16M890IL32-F
- 製造商:
- MaxLinear
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 170-4470
- 製造零件編號:
- XR16M890IL32-F
- 製造商:
- MaxLinear
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | MaxLinear | |
| Number of Channels | 1 | |
| Product Type | UART | |
| Standard Supported | RS485 UART, RS422, RS232 | |
| Transmit FIFO | 128bit | |
| Receive FIFO | 128bit | |
| Maximum Data Rate | 24Mbps | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 32 | |
| Maximum Supply Voltage | 3.63V | |
| Minimum Supply Voltage | 1.8V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1mm | |
| Length | 6.1mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 MaxLinear | ||
Number of Channels 1 | ||
Product Type UART | ||
Standard Supported RS485 UART, RS422, RS232 | ||
Transmit FIFO 128bit | ||
Receive FIFO 128bit | ||
Maximum Data Rate 24Mbps | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 32 | ||
Maximum Supply Voltage 3.63V | ||
Minimum Supply Voltage 1.8V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1mm | ||
Length 6.1mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Universal Asynchronous Receiver/Transmitter (UART), EXAR
Exar offer a variety of UARTs (Universal Asynchronous Receiver Transmitter) with a broad range of first in, first out (FIFO) depths, while supporting popular central processing unit (CPU) bus Interface such as 8-bit VLIO.
A Universal Asynchronous Receiver/Transmitter, abbreviated (UART) and universal synchronous/asynchronous receiver/transmitter (USART) are commonly used in conjunction with communication standards such as EIA, RS-232, RS-422 or RS-485. It takes bytes of data and transmits or receives the individual bits in a sequential fashion. Modem (Modulator-Demodulator) that modulates an analogue carrier signal to encode digital information and demodulates the signal to decode the transmitted information includes the UART function for transmission over telephone lines.
