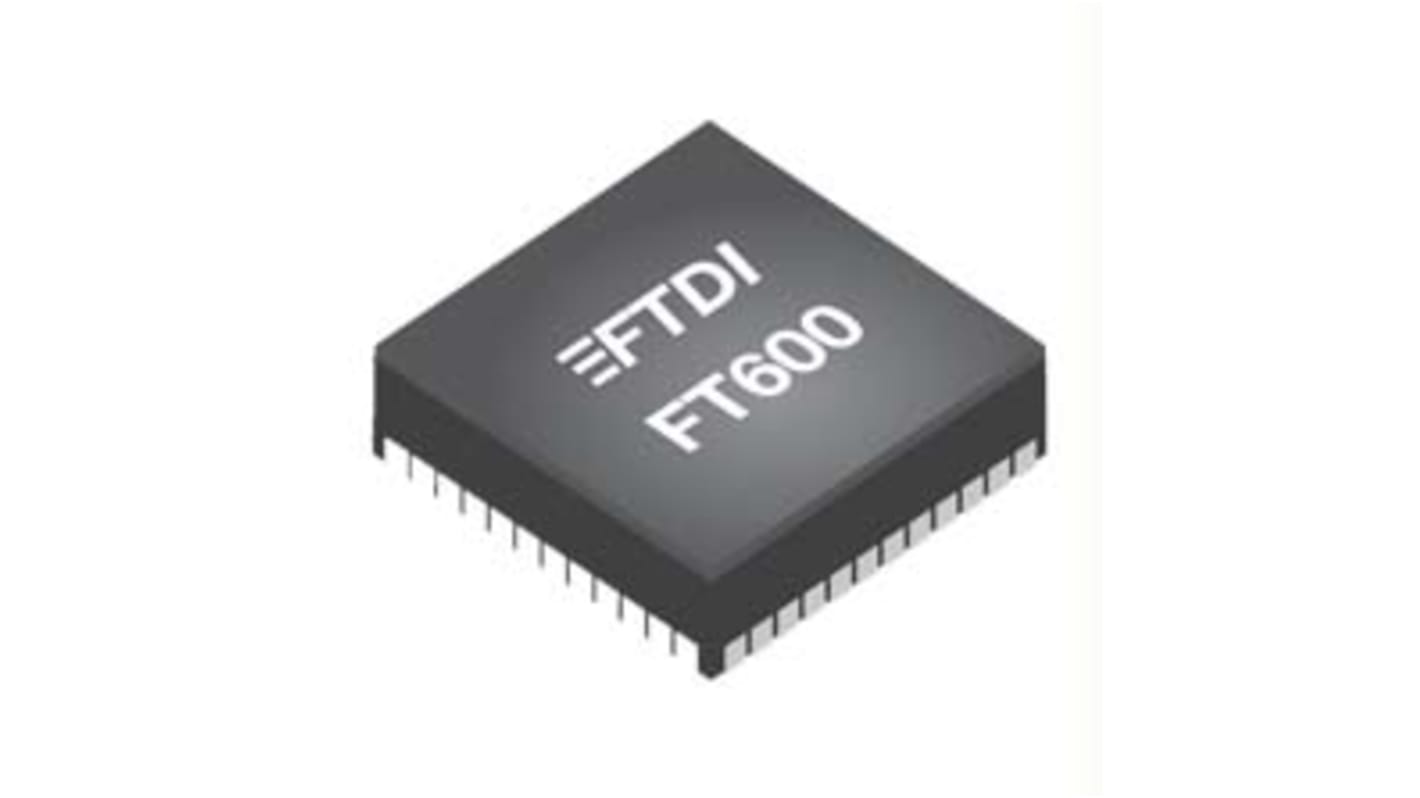

FTDI Chip FT600Q-B-T, USB Bridge IC, 2-Channel, 480 Mbps, 5Gbit/s, USB 2.0, USB 3.0, 3.3 V, 56-Pin QFN
- RS庫存編號:
- 146-6838
- 製造零件編號:
- FT600Q-B-T
- 製造商:
- FTDI Chip
672 現貨庫存,可於3工作日發貨。
單價 个
HK$63.62
單位 | 每單位 |
---|---|
1 - 64 | HK$63.62 |
65 - 129 | HK$62.35 |
130 + | HK$61.10 |
- RS庫存編號:
- 146-6838
- 製造零件編號:
- FT600Q-B-T
- 製造商:
- FTDI Chip
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Enabling faster and higher volume data transfers than ever before, the FT600 and FT601 Super Speed USB3.0 ICs offer USB access to a wider range of data intensive imaging and data acquisition applications. The series incorporates two vendor class USB devices supported by our D3xx driver. The FT600 and FT601 function as Super Speed USB3.0 to FIFO bridges, providing up to 5Gbps of bandwidth. devices - the FT600 and FT601, which function as Super Speed USB3.0 to FIFO bridges, providing up to 5Gbps of bandwidth.
16bit/32bit wide parallel FIFO interface.
Supports 2 parallel slave FIFO bus protocols, with data bursting rate up to 400MBps.
Supports multi channel FIFO interface.
Up to 8 configurable endpoints (pipes).
Built-in 16kB FIFO data buffer RAM.
Supports multi voltage I/O: 1.8V, 2.5V and 3.3V.
Configurable GPIO support.
Supports Remote Wakeup capability.
Provides USB Battery Charger Detection.
Integrated power-on-reset circuit.
Supports 2 parallel slave FIFO bus protocols, with data bursting rate up to 400MBps.
Supports multi channel FIFO interface.
Up to 8 configurable endpoints (pipes).
Built-in 16kB FIFO data buffer RAM.
Supports multi voltage I/O: 1.8V, 2.5V and 3.3V.
Configurable GPIO support.
Supports Remote Wakeup capability.
Provides USB Battery Charger Detection.
Integrated power-on-reset circuit.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
---|---|
Number of Transceivers | 2 |
Data Rate | 480 Mbps, 5Gbit/s |
IC Type | Transceiver IC |
Protocols Supported | USB 2.0, USB 3.0 |
Power Supply Type | Single |
ESD Protection | Yes |
Typical Single Supply Voltage | 3.3 V |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 56 |
Dimensions | 7.1 x 7.1 x 0.69mm |
Height | 0.69mm |
Length | 7.1mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 7.1mm |
