	品牌	STMicroelectronics
	Kit Classification	Evaluation Kit
	Product Type	Communication & Wireless Development Tool
	For Use With	SPC58 MCU
	Featured Device	SPC58EC80E5, STUSB1702

	選取全部
	品牌 STMicroelectronics
	Kit Classification Evaluation Kit
	Product Type Communication & Wireless Development Tool
	For Use With SPC58 MCU
	Featured Device SPC58EC80E5, STUSB1702

Datasheet AEKD-USBTYPEC1

COO (Country of Origin):: IT

The AEKD-USBTYPEC1 evaluation kit is designed to let you test the USB Power Delivery protocol stack implemented on the ASIL-B 32-bit Power Architecture® microcontroller SPC58 C (Chorus) line (from 1 to 10 MB flash, single or multi-core, including ISO CAN FD and Ethernet peripherals).

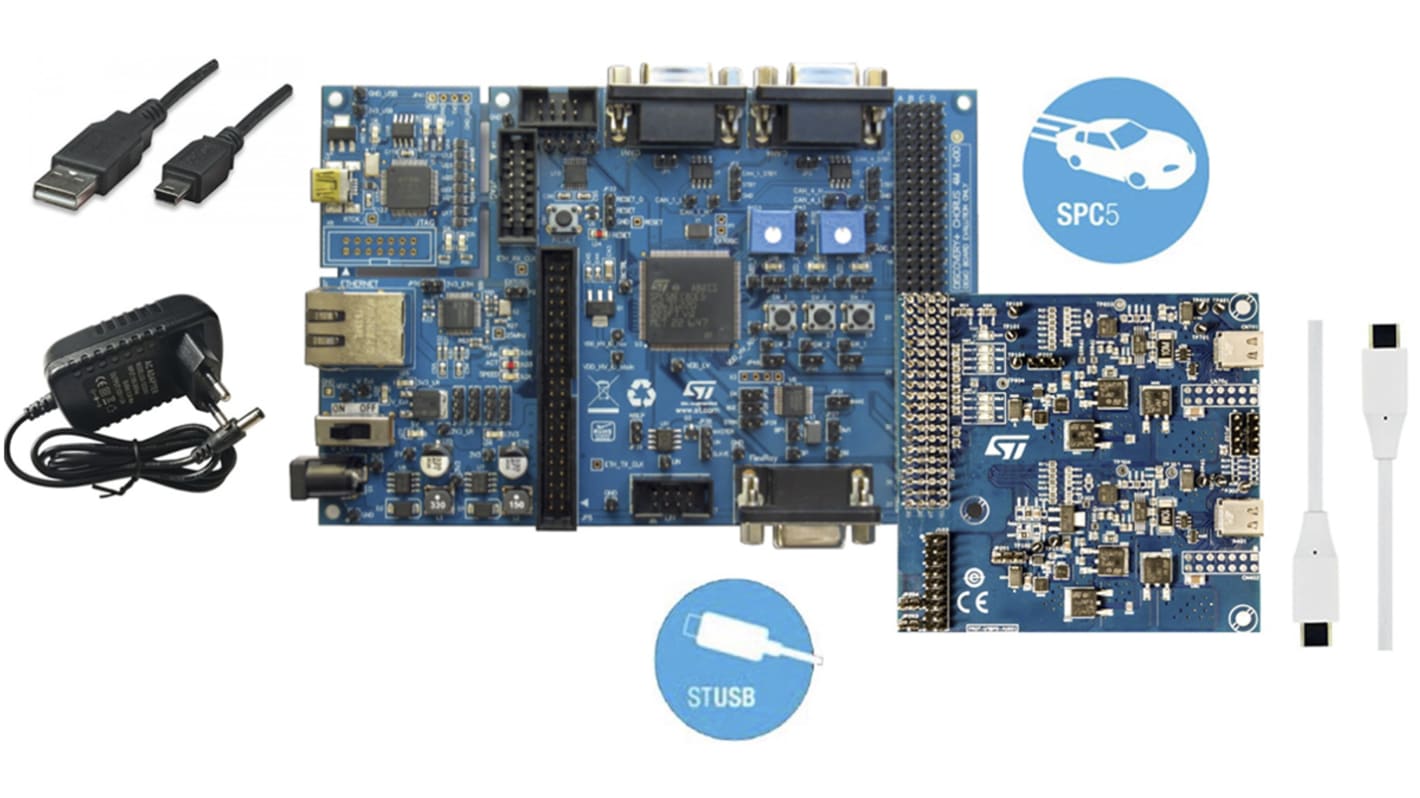

Kit consisting of two boards:

Dual-port USB Type-C function board

SPC58 Chorus discovery board

USB Power Delivery software stack pre-loaded on SPC58 discovery board

Power board connector on USB function board

Power Data Objects (PDO)

5 V 500 mA available without external power board

other PDOs possible if a compatible power board (not included) is connected

Downloadable compiled flash image firmware

Portion of connector on SPC58 Chorus discovery board available for extensions as part of the AutoDevKit development initiative

STMicroelectronics SPC58EC80E5, STUSB1702 Evaluation Kit for SPC58 MCU AEKD-USBTYPEC1
