Fluke 1587 FC Insulation Tester, 50 V Min, 1000 V Max, 2 GΩ CAT IV, CAT III

RS庫存編號:: 905-5920
Distrelec 貨號:: 300-47-586
製造零件編號:: FLUKE-1587 FC
製造商:: Fluke

Fluke 1587 FC Insulation Tester, 50 V Min, 1000 V Max, 2 GΩ CAT IV, CAT III

小計（1 件）*

HK$10,248.30

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2026年7月03日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$10,248.30

* 參考價格

RS庫存編號:: 905-5920
Distrelec 貨號:: 300-47-586
製造零件編號:: FLUKE-1587 FC
製造商:: Fluke

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Fluke
	Product Type	Insulation Tester
	Model Number	1587 FC
	Tester Type	Insulation Tester
	Minimum Test Voltage	50V
	Maximum Test Voltage	1000V
	Display Type	LCD Backlight
	Test Current	1mA
	Battery Life	1000h
	Power Source	Battery
	Battery Type	AA NEDA
	Insulation Testing Resistance	2GΩ
	Minimum Operating Temperature	-20°C
	Safety Category Voltage	1000V
	Maximum Operating Temperature	55°C
	Safety Category Level	CAT IV, CAT III
	Length	203mm
	Height	50mm
	Width	100mm
	Standards/Approvals	CE, CSA
	Weight	550g

	選取全部
	品牌 Fluke
	Product Type Insulation Tester
	Model Number 1587 FC
	Tester Type Insulation Tester
	Minimum Test Voltage 50V
	Maximum Test Voltage 1000V
	Display Type LCD Backlight
	Test Current 1mA
	Battery Life 1000h
	Power Source Battery
	Battery Type AA NEDA
	Insulation Testing Resistance 2GΩ
	Minimum Operating Temperature -20°C
	Safety Category Voltage 1000V
	Maximum Operating Temperature 55°C
	Safety Category Level CAT IV, CAT III
	Length 203mm
	Height 50mm
	Width 100mm
	Standards/Approvals CE, CSA
	Weight 550g

豁免

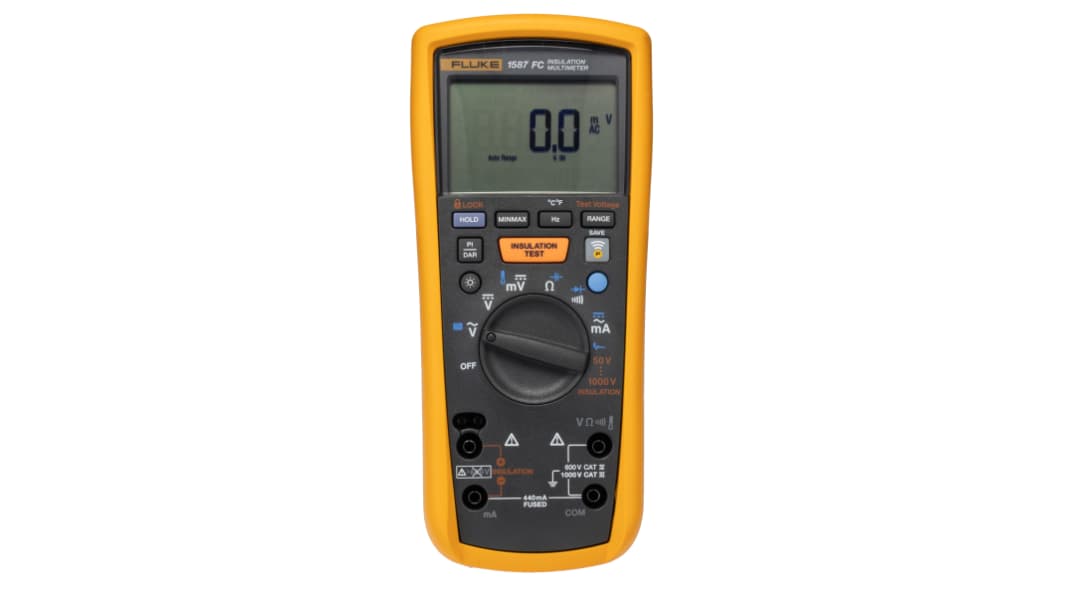

Fluke Insulation Tester, 0.01MΩ to 2GΩ Insulation Testing Resistance, 1000V Maximum Test Voltage - FLUKE-1587 FC

This insulation tester is a handheld, battery-powered instrument that combines insulation measurement with multimeter functions for field diagnostics and maintenance in electrical, automation and mechanical settings. It performs insulation resistance testing up to very high values, applies selectable test voltages for diverse systems, and includes features for safe live-circuit detection and Rapid discharge of capacitive voltage for on-site use.

Features & Benefits

• 0.01MΩ to 2GΩ measurement range provides high-accuracy insulation readings
• Selectable 50V–1000V test voltages suit multiple installation voltages
• Live-circuit inhibit prevents testing when greater than 30V is present for safety
• 1mA test current delivers consistent, standardised insulation stress
• AA battery operation gives extended field use with 1000 h meter life
• LCD backlight display improves readability in dim environments

Applications

• Suitable for fault-finding on motor windings and drive systems using VFD measurements
• Ideal for insulation verification on switchgear and high-voltage cabling
• Used for preventive maintenance and asset trending in industrial plants
• Can be used for insulation checks on control panels and distribution boards
• Suitable for site surveys where portable CAT IV/CAT III measurement is required

How does the instrument protect against charged capacitors after testing?

It performs an automatic discharge with a typical release time under 0.5 s for capacitors of 1 μF or less.

What environmental conditions permit normal operation?

Operating temperature range is −20°C to 55°C with non‑condensing humidity limits up to 95% at 10°C–30°C, reducing at higher temperatures.

What measurement category and voltage ratings apply for on-site safety?

It is rated for both CAT IV 600V and CAT III 1000V measurement environments and accepts a maximum Terminal voltage of 1000 V.

What data and connectivity options are available for diagnostics?

The unit supports wireless data transfer, timed PI/DAR ratio logging, trend graphing and remote memory storage when used with the companion measurements app.

Supplied with

The Fluke 1587 FC Insulation Multimeter comes with a remote probe, test leads, alligator clips, K-type thermocouple, hard case and user documentation.
