Texas Instruments CD4093BF, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin CDIP
- RS庫存編號:
- 178-5478
- 製造零件編號:
- CD4093BF
- 製造商:
- Texas Instruments

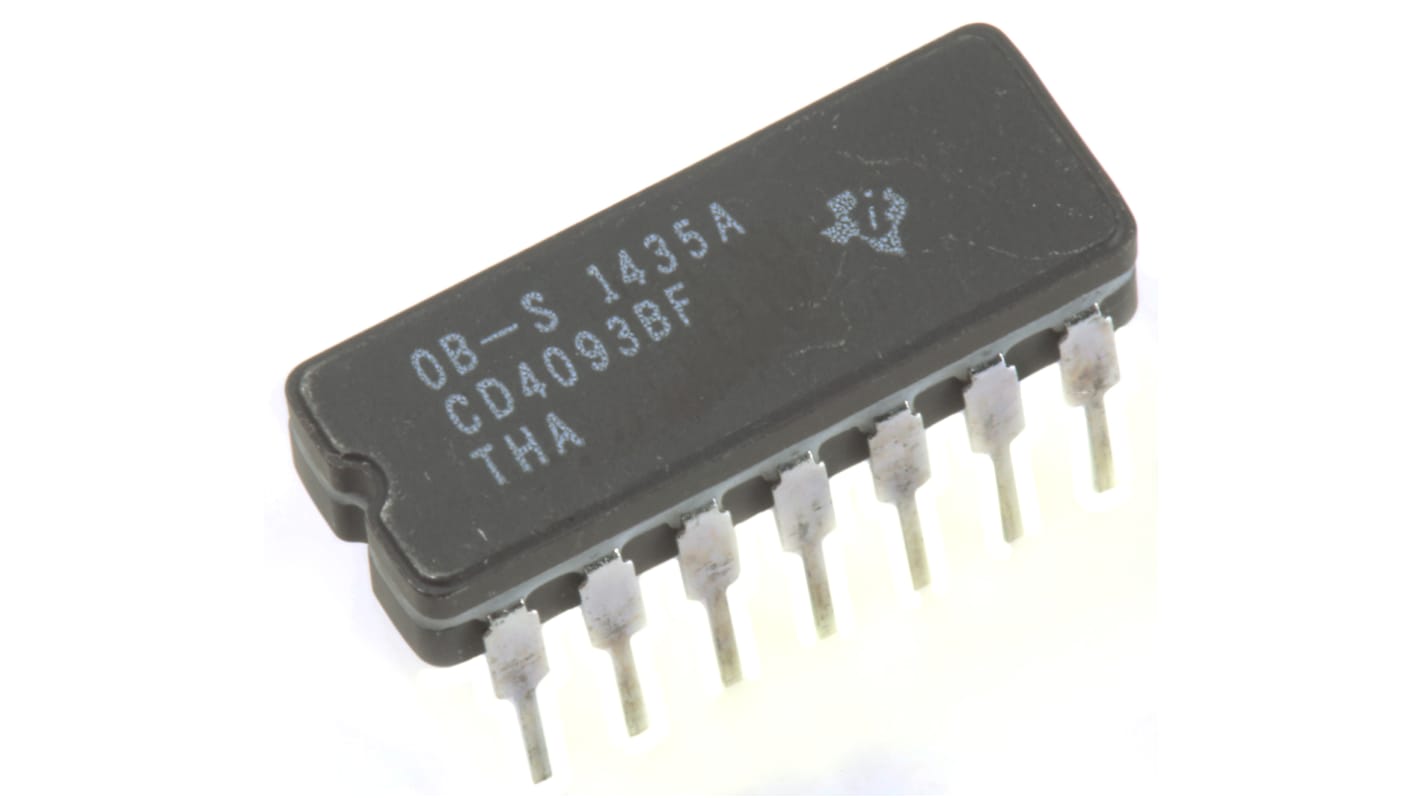

此圖片僅供參考，請參閲產品詳細資訊及規格
享受批量購買折扣
額外添加20件可節省HK$109.80
查看批量定價選項小計（1 管，共 10 件）*
HK$2,526.70
訂單超過 HK$250.00 免費送貨
有庫存
- 80 件準備從其他地點送貨
- 加上 100 件從 2026年11月11日 起發貨
- 加上 80 件從 2027年1月21日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每管* | 節省 |
|---|---|---|---|
| 10 - 10 | HK$252.67 | HK$2,526.70 | - |
| 20 - 30 | HK$247.18 | HK$2,471.80 | HK$109.80 |
| 40 + | HK$241.68 | HK$2,416.80 | HK$439.60 |
* 參考價格
- RS庫存編號:
- 178-5478
- 製造零件編號:
- CD4093BF
- 製造商:
- Texas Instruments
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Texas Instruments | |
| Product Type | Logic Gate | |
| Logic Function | NAND | |
| Mount Type | Through Hole | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | Yes | |
| Package Type | CDIP | |
| Pin Count | 14 | |
| Logic Family | 4000 | |
| Input Type | CMOS | |
| Maximum Propagation Delay Time @ CL | 130ns | |
| Minimum Operating Temperature | -55°C | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Operating Temperature | 125°C | |
| Height | 3.56mm | |
| Minimum Supply Voltage | 3V | |
| Series | CD40 | |
| Maximum Supply Voltage | 18V | |
| Standards/Approvals | No | |
| Length | 19.94mm | |
| Maximum Low Level Output Current | 4.2mA | |
| Automotive Standard | No | |
| Output Type | CMOS | |
| 選取全部 | ||
|---|---|---|
品牌 Texas Instruments | ||
Product Type Logic Gate | ||
Logic Function NAND | ||
Mount Type Through Hole | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input Yes | ||
Package Type CDIP | ||
Pin Count 14 | ||
Logic Family 4000 | ||
Input Type CMOS | ||
Maximum Propagation Delay Time @ CL 130ns | ||
Minimum Operating Temperature -55°C | ||
Maximum High Level Output Current -4.2mA | ||
Maximum Operating Temperature 125°C | ||
Height 3.56mm | ||
Minimum Supply Voltage 3V | ||
Series CD40 | ||
Maximum Supply Voltage 18V | ||
Standards/Approvals No | ||
Length 19.94mm | ||
Maximum Low Level Output Current 4.2mA | ||
Automotive Standard No | ||
Output Type CMOS | ||
4000 Series Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
