STMicroelectronics MCU Development Kit STM32L496G-DISCO

RS庫存編號:: 135-7973
製造零件編號:: STM32L496G-DISCO
製造商:: STMicroelectronics

STMicroelectronics MCU Development Kit STM32L496G-DISCO

可享批量折扣

HK$716.70

3 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$850.00 即可享受免費送貨服務

單位	每單位
1 - 4	HK$716.70
5 +	HK$702.40

RS庫存編號:: 135-7973
製造零件編號:: STM32L496G-DISCO
製造商:: STMicroelectronics

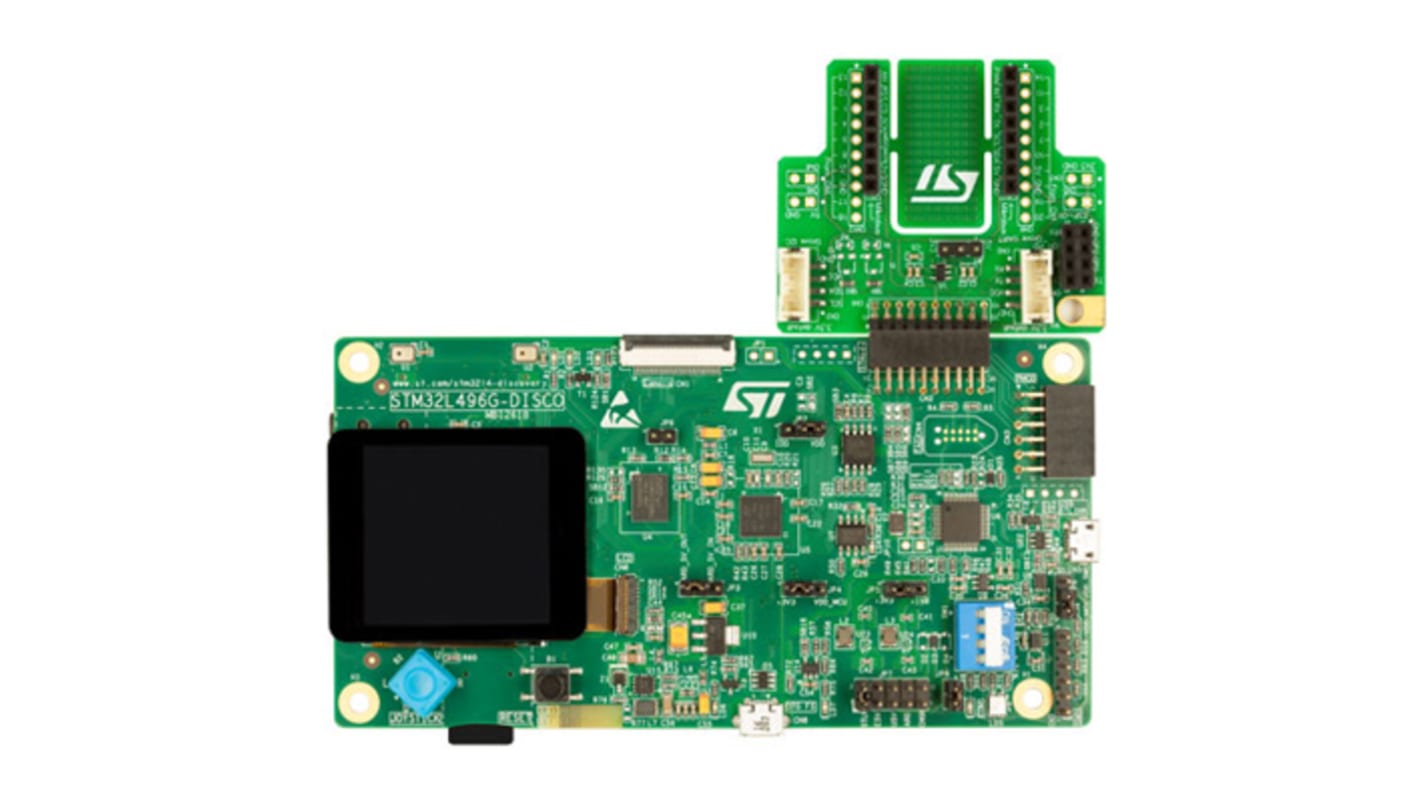

Discovery Kit for STM32L496AG Microcontroller

The STM32L496G-DISCO Discovery kit allows easy evaluation of the 32-bit ARM Cortex-M4F STM32L496 ultra-low power microcontrollers.

• 80MHz STM32L496AGI6 Cortex-M4F MCU with 1MB Flash memory, 320KB RAM (64KB parity checked)

• Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory

• Real-Time Clock with HW calendar, alarms and calibration

• 4 x Digital Filters for Sigma-Delta modulator

• True random number generator

• CRC calculation unit

• 96-bit unique ID

• On-board MX25R6435FM2IL0 64Mbit quad-SPI Flash memory

• On-board IS66WV51216EBLL-70BLI 8Mbit PSRAM memory

• On-board ST-LINK/V2-1 supporting a USB port

• USB supported: Virtual COM port, Mass storage, Debug port

• TAG connector for programming/debug

• On-board 1.54in 240 x 240pixel TFT colour LCD

• On-board CS42L51-CNZ stereo audio CODEC

• On-board 2 x MP34DT01 MEMS microphones

• I_DD current measurement unit

• 5 x Status LEDs

• 2 x User LEDs

• Reset pushbutton

• 4-way Thumb Joystick

• USB OTG FS with micro-AB connector

• 3.5mm stereo audio output and microphone input jack socket

• Camera module connector

• Arduino v3 format Shield headers

• Pmod™ 12-pin expansion connector

• STMod+ 20-pin expansion connector

• Power supply options: ST-LINK/V2-1, USB FS, VIN from Arduino connector, +5V from Arduino connector

• ARM mbed-Enabled (mbed.org)

• Comprehensive free software including a variety of examples, part of STM32Cube package

Supplied with

Fanout Expansion Board for mikroBUS click, ESP-01 and Grove modules.

STM32L4 Series 32-Bit ARM® Cortex®-M4 Microcontrollers, STMicroelectronics

The STM32L4 series of ultra-low-power microcontrollers deliver 100DMIPS based on its ARM® Cortex®-M4 core with Floating Point Unit (FPU) and ST ART Accelerator™ at 80MHz.
STM32L4 microcontrollers offer dynamic voltage scaling to balance power consumption with processing demand, low-power peripherals available in Stop mode, safety and security features.

Up to 1MB Flash Memory
LCD 8x40 or 4x44 with step-up converter
USB OTG 2.0 full-speed

Attribute	Value
Classification	Development Kit
Technology	MCU
Device Core	ARM Cortex M4F
Processor Family Name	STM
Processor Part Number	STM32L496AGI6
Processor Type	MCU
