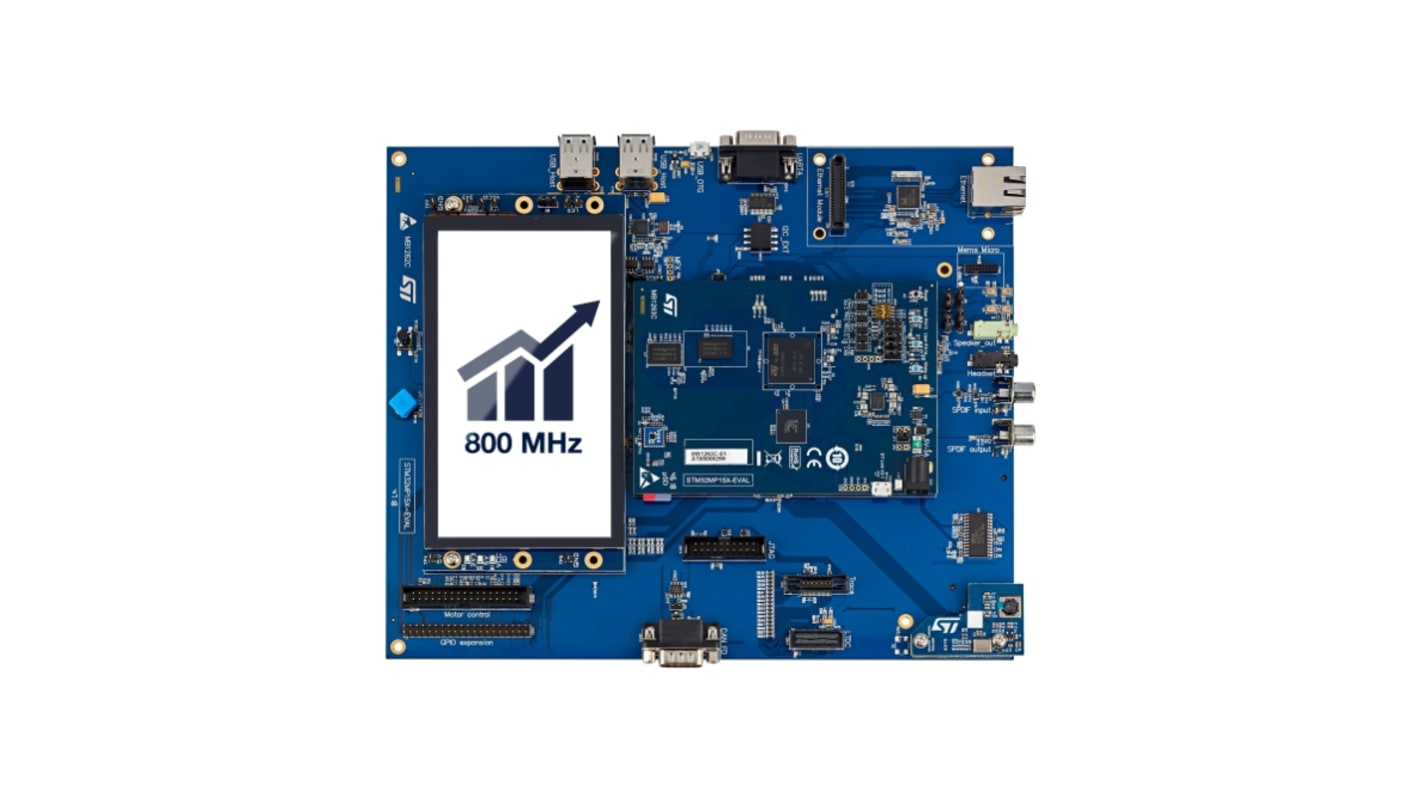

STMicroelectronics Evaluation board with STM32MP157F MPU 32 bit Evaluation Board STM32MP157F-EV1

查看此類別
可享批量折扣

小計（1 件）*

HK$4,425.10

Add to Basket
選擇或輸入數量
供應短缺
  • 加上 1 件從 2025年12月08日 起發貨
我們目前的可售庫存有限，並且我們的供應商預計會出現供應短缺的狀況。
單位
每單位
1 - 4HK$4,425.10
5 +HK$4,336.60

* 參考價格

RS庫存編號:
204-4103
製造零件編號:
STM32MP157F-EV1
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Classification

Evaluation Board

Kit Name

Evaluation board with STM32MP157F MPU

Technology

32 bit

Device Core

ARM 32-bit Cortex-M4

Processor Family Name

Cortex A7, Cortex M4

COO (Country of Origin):
IT
The STM32MP157D-EV1 and STM32MP157F-EV1 Evaluation boards are the full-feature demonstration and development platforms for STMicroelectronics increased-frequency 800 MHz Arm®-based dual Cortex®-A7 32 bits and Cortex®-M4 32 bits MPUs in the STM32MP1 Series. They leverage the capabilities of STM32MP1 Series microprocessors to allow users develop applications using STM32 MPU OpenSTLinux Distribution software for the main processor and STM32CubeMP1 software for the co-processor.

They include an ST-LINK embedded debug tool, LEDs, push-buttons, one joystick, 1-Gbps Ethernet, CAN FD, one USB OTG Micro-AB connector, four USB Host Type-A connectors, LCD display with touch panel, camera, stereo headset jack with analog microphone input, four digital microphones, one SPDIF Rx/Tx, smartcard, microSD™ card, and eMMC, NOR and NAND Flash memories.

To expand the functionality of the STM32MP157D-EV1 and STM32MP157F-EV1 Evaluation boards, two GPIO expansion connectors are also available for motor control and Raspberry Pi® shields.

￮ STM32MP157 Arm®-based dual Cortex®-A7 800 MHz 32 bits + Cortex®-M4 32 bits MPU in LFBGA448 package
￮ ST PMIC STPMIC1
￮ 2 x 4-Gbit DDR3L, 16 bits, 533 MHz
￮ 2 x 512-Mbit Quad-SPI Flash memory
￮ 32-Gbit eMMC v5.0
￮ 8-Gbit SLC NAND, 8 bits, 8-bit ECC, 4-KB PS
￮ 1-Gbit/s Ethernet (RGMII) compliant with IEEE-802.3ab
￮ USB Host 4-port hub
￮ USB OTG HS
￮ CAN FD
￮ 5.5 TFT 720x1280 pixels with LED backlight, MIPI DSISM interface, and capacitive touch panel
￮ SAI audio codec
￮ 5-megapixel, 8-bit camera
￮ 4 x ST-MEMS digital microphones
￮ Smartcard
￮ microSD™ card
￮ 2 user LEDs
￮ 2 user and reset push-buttons, 1 wake-up button
￮ 4-direction joystick with selection button
￮ 5 V / 4 A power supply
￮ Board connectors:
  • Ethernet RJ45

  • 4 x USB Host Type-A

  • USB OTG Micro-AB

  • SPDIF RCA input and output

  • CAN FD

  • Stereo headset jack including analog microphone input

  • Audio jack for external speakers

  • Motor control

  • External I2C

  • LTDC

  • Trace, JTAG, RS-232

  • GPIO expansion connector (Raspberry Pi® shields capability)

  • MEMS-microphone daughterboard expansion connector

￮ On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: Virtual COM port and debug port
￮ STM32CubeMP1 and full mainline open-source Linux® STM32 MPU OpenSTLinux Distribution (such as STM32MP1Starter) software and examples
￮ Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
