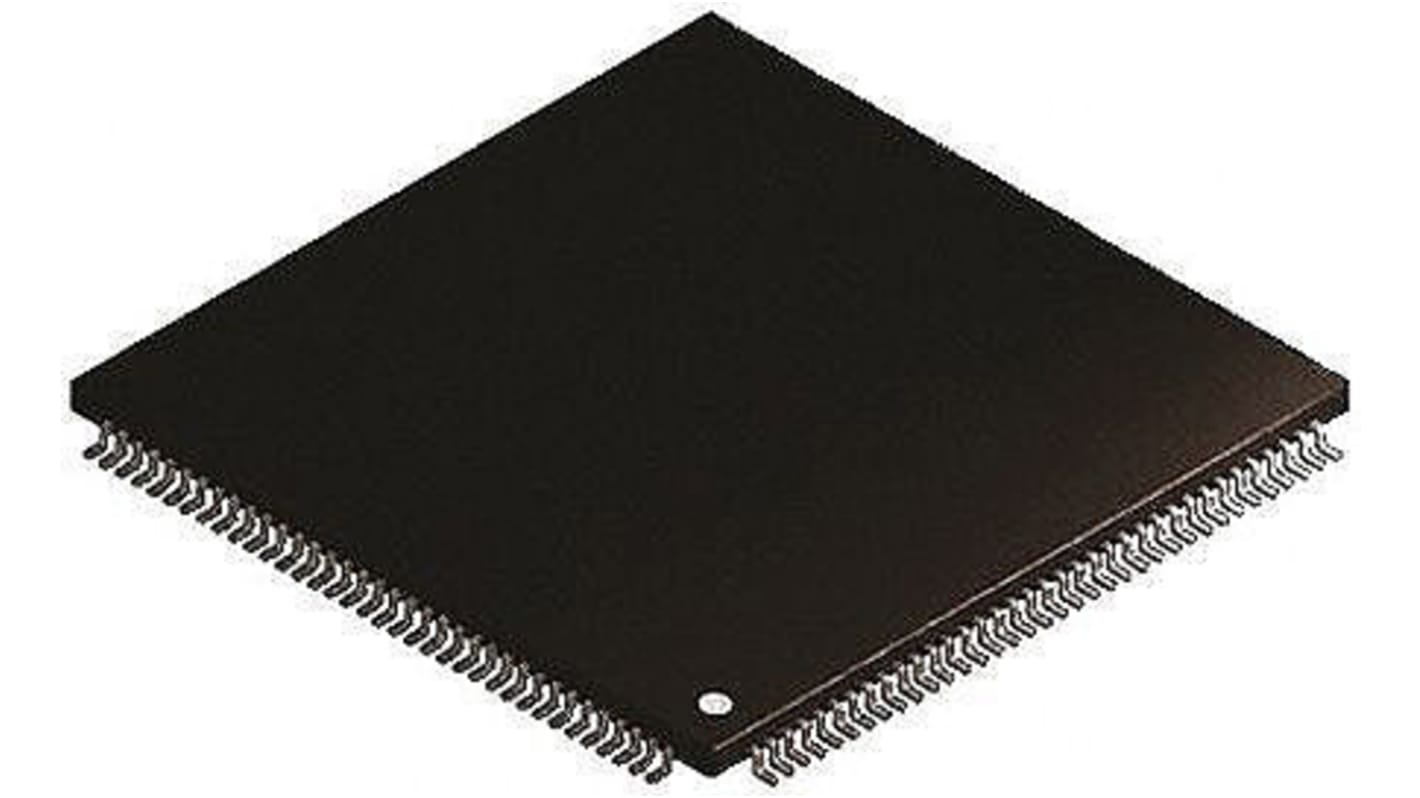

STMicroelectronics, 32bit ARM Cortex M7, STM32F7 Microcontroller, 216MHz, 512 kB Flash, 144-Pin LQFP

查看所有Microcontrollers
可享批量折扣

小計（1 件）*

HK$106.00

Add to Basket
選擇或輸入數量
有庫存
  • 355 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 14HK$106.00
15 - 29HK$103.70
30 +HK$101.40

* 參考價格

包裝方式：
RS庫存編號:
135-8234
製造零件編號:
STM32F723ZET6
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Family Name

STM32F7

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

144

Device Core

ARM Cortex M7

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

216MHz

RAM Size

256 kB

USB Channels

1

Number of SPI Channels

5

Number of I2C Channels

3

Number of UART Channels

4

Number of USART Channels

4

Typical Operating Supply Voltage

1.7 → 3.6 V

Number of CAN Channels

1

Program Memory Type

Flash

Dimensions

20.2 x 20.2 x 1.45mm

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

DSP

ADCs

3 x 12 bit

Length

20.2mm

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Height

1.45mm

Number of LIN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

Width

20.2mm

STM32F7 Series Microcontrollers, STMicroelectronics


The STM32F7xx microcontrollers are based on the high-performance ARM Cortex-M7 32-bit RISC core.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



The STM32F7 microcontrollers feature ST’s ART Accelerator™ as well as an L1 cache and deliver the maximum theoretical performance of the ARM Cortex-M7 core, regardless if code is executed from embedded Flash or external memory. Typical performance figures: 1082 CoreMark / 462 DMIPS at 216MHz clock frequency.


AXI and multi-AHB bus matrixes for interconnecting core, peripherals and memories
Double-Precision Floating-Point maths unit on some variants
Up to 16KB +16KB of I-cache and D-cache
Up to 2MB of embedded Flash memory, with Read-While-Write capability on certain devices
Up to 512KB of data memory, including up to 128KB of Tightly-Coupled Memory for Data (DTCM) for Stacks, Heaps
16KB of Tightly-Coupled Memory for Instructions (ITCM) for time-critical routines
4KB of backup SRAM to keep data in the lowest power modes
Peripheral speed is independent from CPU speed (dual clock support)
Protected code execution feature (PC-ROP) on some variants
Power Efficiency: 7 CoreMark/mW at +1.8Vdc
