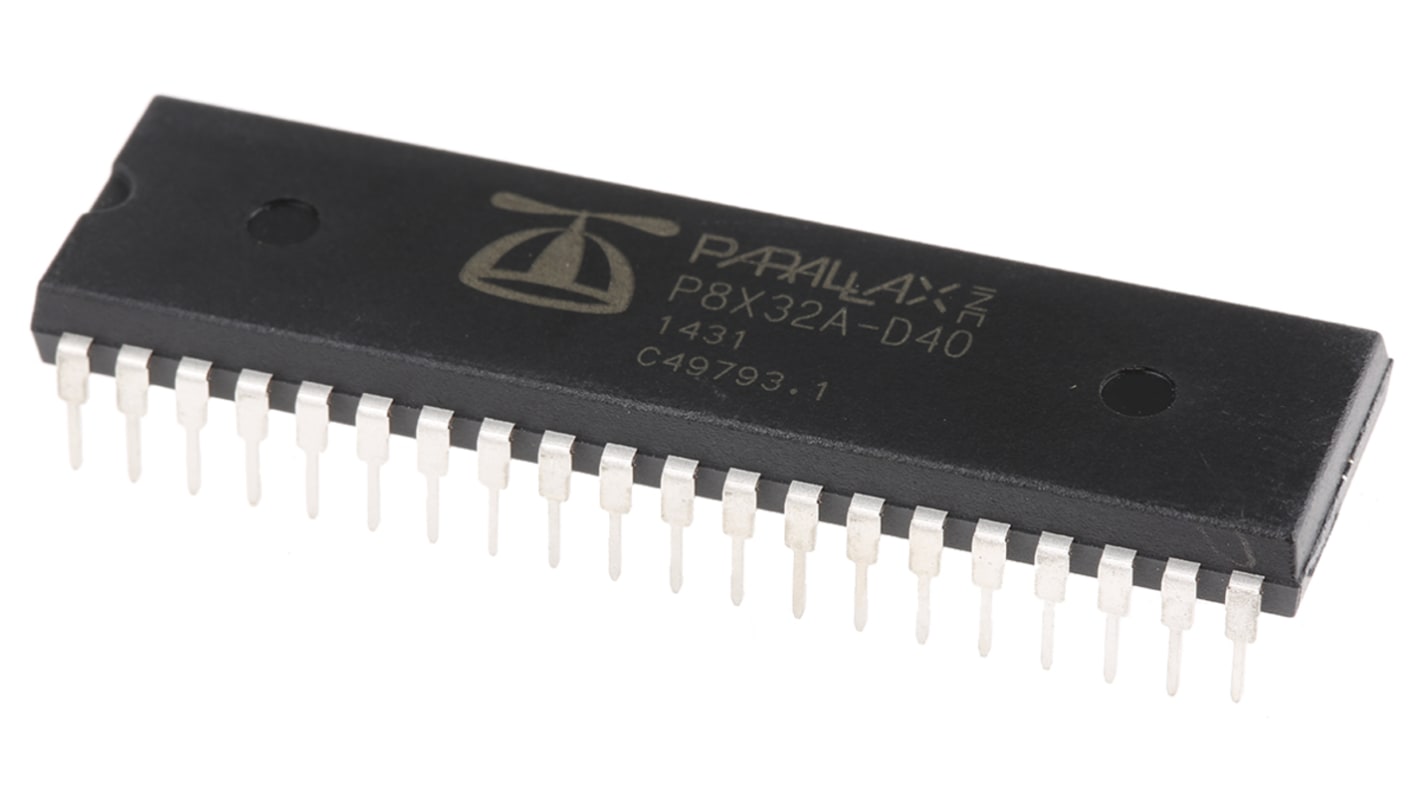

Parallax Inc, 32bit P8X32A, Propeller Microcontroller, 80MHz, 64 kB ROM, 40-Pin PDIP

RS庫存編號:: 171-1687
製造零件編號:: P8X32A-D40
製造商:: Parallax Inc

Parallax Inc, 32bit P8X32A, Propeller Microcontroller, 80MHz, 64 kB ROM, 40-Pin PDIP

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 管，共 10 件）*

HK$893.10

訂單超過 HK$250.00 免費送貨

有庫存

30 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
10 - 10	HK$89.31	HK$893.10
20 - 30	HK$87.52	HK$875.20
40 +	HK$85.77	HK$857.70

* 參考價格

RS庫存編號:: 171-1687
製造零件編號:: P8X32A-D40
製造商:: Parallax Inc

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Parallax Inc
	Family Name	Propeller
	Package Type	PDIP
	Mounting Type	Through Hole
	Pin Count	40
	Device Core	P8X32A
	Data Bus Width	32bit
	Program Memory Size	64 kB
	Maximum Frequency	80MHz
	RAM Size	32.768 kB
	USB Channels	1 x Device
	Number of SPI Channels	0
	Typical Operating Supply Voltage	2.7 → 3.6 V
	Number of UART Channels	0
	Number of USART Channels	0
	Number of I2C Channels	0
	Number of CAN Channels	0
	Instruction Set Architecture	RISC
	Width	13.72mm
	Minimum Operating Temperature	-55 °C
	Dimensions	52.32 x 13.72 x 3.81mm
	Program Memory Type	ROM
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Number of LIN Channels	0
	Height	3.81mm
	Maximum Number of Ethernet Channels	0
	Length	52.32mm
	Maximum Operating Temperature	+125 °C

	選取全部
	品牌 Parallax Inc
	Family Name Propeller
	Package Type PDIP
	Mounting Type Through Hole
	Pin Count 40
	Device Core P8X32A
	Data Bus Width 32bit
	Program Memory Size 64 kB
	Maximum Frequency 80MHz
	RAM Size 32.768 kB
	USB Channels 1 x Device
	Number of SPI Channels 0
	Typical Operating Supply Voltage 2.7 → 3.6 V
	Number of UART Channels 0
	Number of USART Channels 0
	Number of I2C Channels 0
	Number of CAN Channels 0
	Instruction Set Architecture RISC
	Width 13.72mm
	Minimum Operating Temperature -55 °C
	Dimensions 52.32 x 13.72 x 3.81mm
	Program Memory Type ROM
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Number of LIN Channels 0
	Height 3.81mm
	Maximum Number of Ethernet Channels 0
	Length 52.32mm
	Maximum Operating Temperature +125 °C

COO (Country of Origin):: CN

Propeller 1 Microcontrollers

The Parallax P8X32A (Propeller) is an 8-core 32-bit microprocessor designed to provide high-speed processing for embedded systems.It is available in two package formats: 40-pin DIP and 44-pin QFP SMT. Ideal for real-time control applications because the task switching between cores is fully deterministic.

Clock frequency: up to 80MHz

Performance: up to 160MIPS

No of cores (COGs): 8

Global ROM: 32KB

Global RAM: 32KB

COG RAM: 2KB each

32 x GPIO pins

2 x multi-function counters/COG

1 x Video generator/COG

Power supply: +2.7 to +3.6Vdc

Operating temperature range: -55 to +125°C

RS Product Codes

405-597 P8X32A-D40 Propeller, DIP40

405-626 P8X32A-Q44 Propeller, QFP44

The Propeller™ 1 microprocessor chip makes it easy to rapidly develop embedded applications. Its eight 32-bit processors (COGs) can operate simultaneously, either independently or cooperatively, sharing common resources through a central hub. The developer has full control over how and when each cog is employed; there is no compiler-driven or operating system-driven splitting of tasks among multiple cogs. A shared system clock keeps each cog on the same time reference, allowing for true deterministic timing and synchronization. Two programming languages are available: the easy-to-learn high-level Spin, and Propeller Assembly which can execute at up to 160 MIPS (20 MIPS per COG).
