產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	S3A1
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	144
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1 MB
	Maximum Frequency	48MHz
	RAM Size	192 kB
	USB Channels	1
	Number of PWM Units	0
	Number of SPI Channels	2
	Number of USART Channels	0
	Number of I2C Channels	3
	Number of UART Channels	1
	Typical Operating Supply Voltage	1.6 → 5.5 V
	Number of CAN Channels	1
	Number of ADC Units	1
	ADCs	28 x 14 bit
	Length	20.1mm
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	DSP
	Number of PCI Channels	0
	Maximum Operating Temperature	+105 °C
	Program Memory Type	Flash
	Width	20.1mm
	Dimensions	20.1 x 20.1 x 1.55mm
	Minimum Operating Temperature	-40 °C
	Height	1.55mm
	Number of LIN Channels	0
	Number of Ethernet Channels	0

	選取全部
	品牌 Renesas Electronics
	Family Name S3A1
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 144
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1 MB
	Maximum Frequency 48MHz
	RAM Size 192 kB
	USB Channels 1
	Number of PWM Units 0
	Number of SPI Channels 2
	Number of USART Channels 0
	Number of I2C Channels 3
	Number of UART Channels 1
	Typical Operating Supply Voltage 1.6 → 5.5 V
	Number of CAN Channels 1
	Number of ADC Units 1
	ADCs 28 x 14 bit
	Length 20.1mm
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture DSP
	Number of PCI Channels 0
	Maximum Operating Temperature +105 °C
	Program Memory Type Flash
	Width 20.1mm
	Dimensions 20.1 x 20.1 x 1.55mm
	Minimum Operating Temperature -40 °C
	Height 1.55mm
	Number of LIN Channels 0
	Number of Ethernet Channels 0

synergy-s3a1-datasheet

The MCU integrates multiple series of software- and pin-compatible Arm®-based 32-bit MCUs that share a common set of Renesas peripherals to facilitate design scalability and efficient platform-based product development. The MCU provides an optimal combination of low-power, high-performance Arm Cortex®-M4 core running up to 48 MHz,

1-MB code flash memory
192-KB SRAM
Segment LCD Controller (SLCDC)
Capacitive Touch Sensing Unit (CTSU)
USB 2.0 Full-Speed Module (USBFS)
14-bit A/D Converter (ADC14)
12-bit D/A Converter (DAC12)
Security features.

單位	每單位
1 - 6	HK$138.00
7 - 12	HK$135.00
13 +	HK$132.10

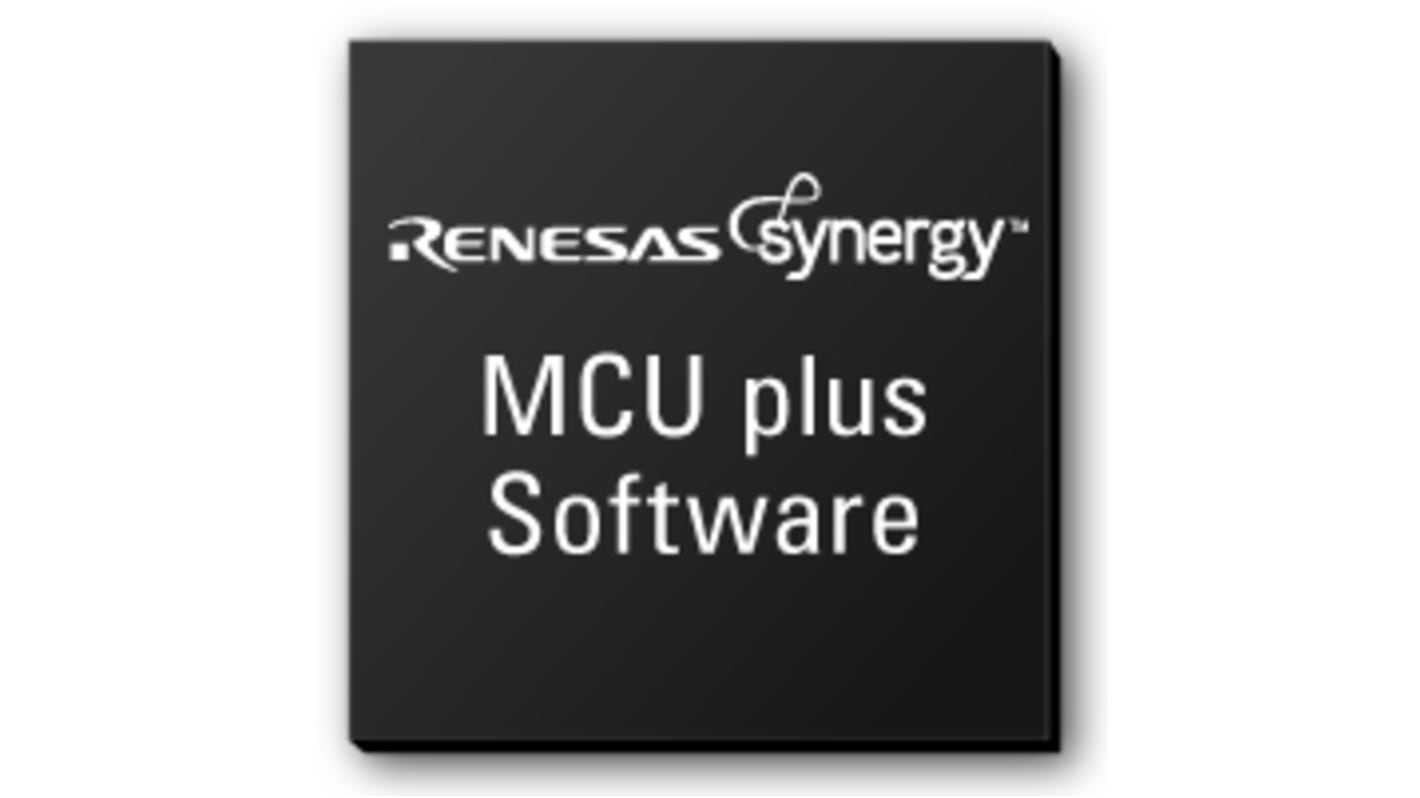

Renesas Electronics, 32bit ARM Cortex M4, S3A1 Microcontroller, 48MHz, 1 MB Flash, 144-Pin LQFP

訂單超過 HK$250.00 免費送貨

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
