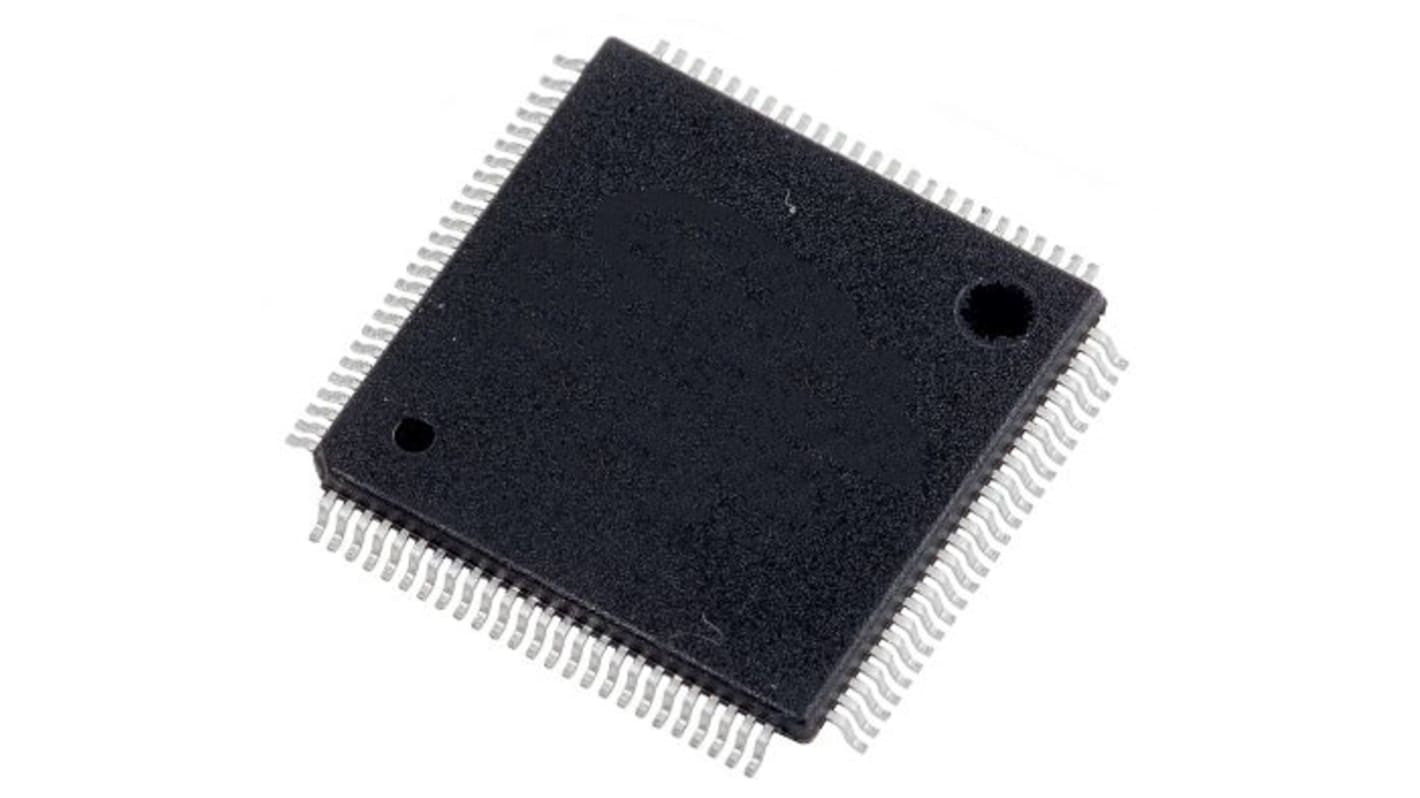

Renesas Electronics, 32bit ARM Cortex M4, S3A1 Microcontroller, 48MHz, 1 MB Flash, 100-Pin LQFP

RS庫存編號:: 176-9706
製造零件編號:: R7FS3A17C3A01CFP#AA0
製造商:: Renesas Electronics

Renesas Electronics, 32bit ARM Cortex M4, S3A1 Microcontroller, 48MHz, 1 MB Flash, 100-Pin LQFP

可享批量折扣

小計（1 件）*

HK$107.50

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 75 個，準備發貨

單位	每單位
1 - 6	HK$107.50
7 - 12	HK$105.20
13 +	HK$102.90

* 參考價格

RS庫存編號:: 176-9706
製造零件編號:: R7FS3A17C3A01CFP#AA0
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	S3A1
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1 MB
	Maximum Frequency	48MHz
	RAM Size	192 kB
	USB Channels	1
	Number of SPI Channels	2
	Number of CAN Channels	1
	Number of UART Channels	1
	Number of I2C Channels	2
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of USART Channels	0
	Number of Ethernet Channels	0
	Height	1.55mm
	Dimensions	14.1 x 14.1 x 1.55mm
	Width	14.1mm
	Number of PCI Channels	0
	Number of LIN Channels	0
	Length	14.1mm
	Maximum Number of Ethernet Channels	0
	Maximum Operating Temperature	+105 °C
	Program Memory Type	Flash
	Instruction Set Architecture	DSP
	Minimum Operating Temperature	-40 °C
	Number of ADC Units	1
	ADCs	25 x 14 bit

	選取全部
	品牌 Renesas Electronics
	Family Name S3A1
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1 MB
	Maximum Frequency 48MHz
	RAM Size 192 kB
	USB Channels 1
	Number of SPI Channels 2
	Number of CAN Channels 1
	Number of UART Channels 1
	Number of I2C Channels 2
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of USART Channels 0
	Number of Ethernet Channels 0
	Height 1.55mm
	Dimensions 14.1 x 14.1 x 1.55mm
	Width 14.1mm
	Number of PCI Channels 0
	Number of LIN Channels 0
	Length 14.1mm
	Maximum Number of Ethernet Channels 0
	Maximum Operating Temperature +105 °C
	Program Memory Type Flash
	Instruction Set Architecture DSP
	Minimum Operating Temperature -40 °C
	Number of ADC Units 1
	ADCs 25 x 14 bit

Datasheet

The MCU integrates multiple series of software- and pin-compatible Arm®-based 32-bit MCUs that share a common set of Renesas peripherals to facilitate design scalability and efficient platform-based product development. The MCU provides an optimal combination of low-power, high-performance Arm Cortex®-M4 core running up to 48 Mhz.

1-MB code flash memory
192-KB SRAM
Segment LCD Controller (SLCDC)
Capacitive Touch Sensing Unit (CTSU)
USB 2.0 Full-Speed Module (USBFS)
14-bit A/D Converter (ADC14)
12-bit D/A Converter (DAC12)
Security features
