製造零件編號

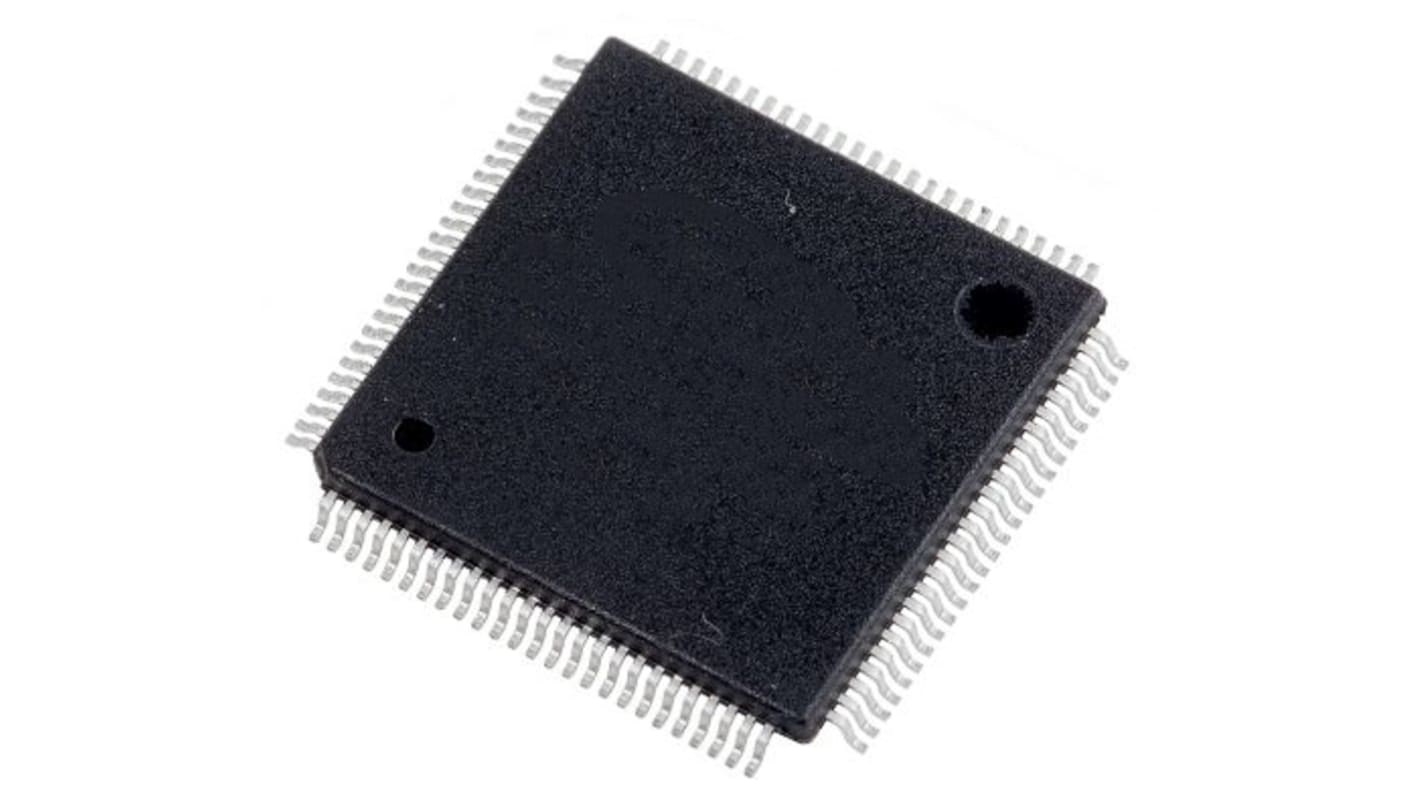

Renesas Electronics, 32bit ARM Cortex M4, S3A1 Microcontroller, 48MHz, 1 MB Flash, 100-Pin LQFP

RS庫存編號:: 176-9645
製造零件編號:: R7FS3A17C3A01CFP#AA0
製造商:: Renesas Electronics

Renesas Electronics, 32bit ARM Cortex M4, S3A1 Microcontroller, 48MHz, 1 MB Flash, 100-Pin LQFP

可享批量折扣

小計（1 托盤，共 25 件）*

HK$2,087.40

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 75 個，準備發貨

單位	每單位	每托盤*
25 - 100	HK$83.496	HK$2,087.40
125 +	HK$75.148	HK$1,878.70

* 參考價格

RS庫存編號:: 176-9645
製造零件編號:: R7FS3A17C3A01CFP#AA0
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	S3A1
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1 MB
	Maximum Frequency	48MHz
	RAM Size	192 kB
	USB Channels	1
	Number of SPI Channels	2
	Number of USART Channels	0
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of I2C Channels	2
	Number of UART Channels	1
	Number of CAN Channels	1
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+105 °C
	Number of ADC Units	1
	Length	14.1mm
	Maximum Number of Ethernet Channels	0
	ADCs	25 x 14 bit
	Instruction Set Architecture	DSP
	Number of LIN Channels	0
	Dimensions	14.1 x 14.1 x 1.55mm
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Height	1.55mm
	Program Memory Type	Flash
	Width	14.1mm

	選取全部
	品牌 Renesas Electronics
	Family Name S3A1
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1 MB
	Maximum Frequency 48MHz
	RAM Size 192 kB
	USB Channels 1
	Number of SPI Channels 2
	Number of USART Channels 0
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of I2C Channels 2
	Number of UART Channels 1
	Number of CAN Channels 1
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +105 °C
	Number of ADC Units 1
	Length 14.1mm
	Maximum Number of Ethernet Channels 0
	ADCs 25 x 14 bit
	Instruction Set Architecture DSP
	Number of LIN Channels 0
	Dimensions 14.1 x 14.1 x 1.55mm
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Height 1.55mm
	Program Memory Type Flash
	Width 14.1mm

Datasheet

The MCU integrates multiple series of software- and pin-compatible Arm®-based 32-bit MCUs that share a common set of Renesas peripherals to facilitate design scalability and efficient platform-based product development. The MCU provides an optimal combination of low-power, high-performance Arm Cortex®-M4 core running up to 48 Mhz.

1-MB code flash memory
192-KB SRAM
Segment LCD Controller (SLCDC)
Capacitive Touch Sensing Unit (CTSU)
USB 2.0 Full-Speed Module (USBFS)
14-bit A/D Converter (ADC14)
12-bit D/A Converter (DAC12)
Security features

Renesas Electronics, 32bit ARM Cortex M4, S3A1 Microcontroller, 48MHz, 1 MB Flash, 100-Pin LQFP

訂單超過 HK$250.00 免費送貨

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
