選取全部	屬性	值
	品牌	Microchip
	Series	PIC16F18425
	Product Type	Microcontroller
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	14
	Device Core	PIC
	Data Bus Width	12bit
	Interface Type	EUSART, SPI, I2C
	Program Memory Size	14kB
	Maximum Clock Frequency	32MHz
	RAM Size	1kB
	Maximum Supply Voltage	5.5V
	Analogue Comparators	2
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	800mW
	DACs	1 x 5 Bit
	Number of Programmable I/Os	12
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	Width	3.9 mm
	Height	1.25mm
	Length	8.65mm
	Minimum Supply Voltage	1.8V
	Instruction Set Architecture	RISC
	Automotive Standard	No
	ADCs	11 x 12 Bit
	Program Memory Type	FLASH
	Number of Timers	8

	選取全部
	品牌 Microchip
	Series PIC16F18425
	Product Type Microcontroller
	Package Type SOIC
	Mount Type Surface
	Pin Count 14
	Device Core PIC
	Data Bus Width 12bit
	Interface Type EUSART, SPI, I2C
	Program Memory Size 14kB
	Maximum Clock Frequency 32MHz
	RAM Size 1kB
	Maximum Supply Voltage 5.5V
	Analogue Comparators 2
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 800mW
	DACs 1 x 5 Bit
	Number of Programmable I/Os 12
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	Width 3.9 mm
	Height 1.25mm
	Length 8.65mm
	Minimum Supply Voltage 1.8V
	Instruction Set Architecture RISC
	Automotive Standard No
	ADCs 11 x 12 Bit
	Program Memory Type FLASH
	Number of Timers 8

Datasheet

COO (Country of Origin):: US

The PIC16(L)F184xx 8-bit product family features high resolution Analog, Core Independent Peripherals (CIPs) and communication along with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. The family offers a 12-bit ADC with computation (ADC2), multiple communications interfaces, a temperature sensor, along with memory features like Memory Access Partition (MAP) and Device Information Area (DIA).

Enhanced Mid-range Core with 48 Instruction, 16 Stack Levels

Memory Access Partition (MAP)

Device Information Area (DIA)

Complementary Waveform Generator (CWG)

Numerically Controlled Oscillator (NCO)

Hardware Limit Timer (HLT)

Signal Measurement Timer (SMT)

4 x Configurable Logic Controller (CLC)

Data Signal Modulator (DSM)

Zero Cross Detect (ZCD)

Windowed Watchdog Timer (WWDT)

eXtreme Low Power (XLP)

單位	每單位	每包*
10 - 10	HK$10.16	HK$101.60
20 +	HK$9.96	HK$99.60

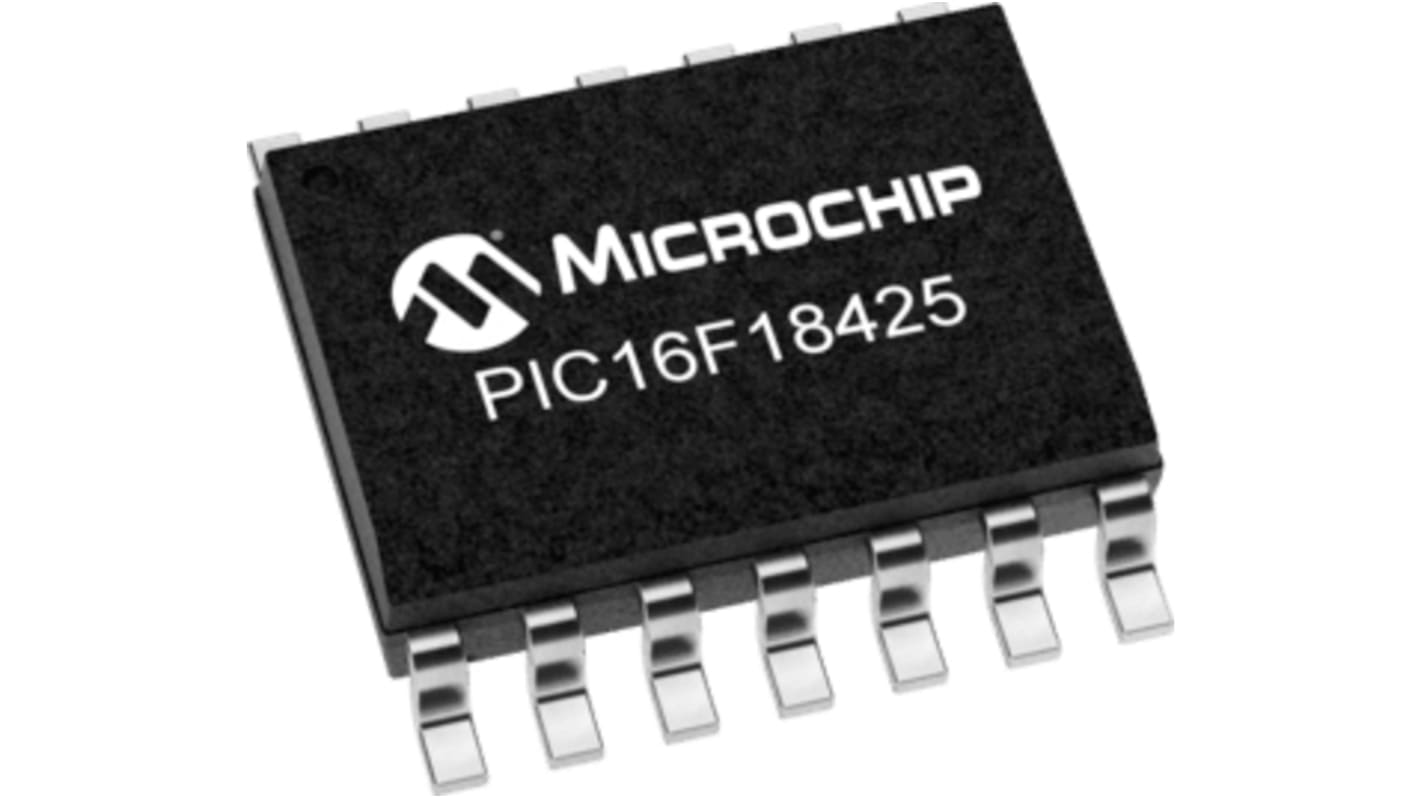

Microchip, 12 bit PIC, PIC16F18425 Microcontroller, 32 MHz, 14kB FLASH, 14-Pin SOIC
