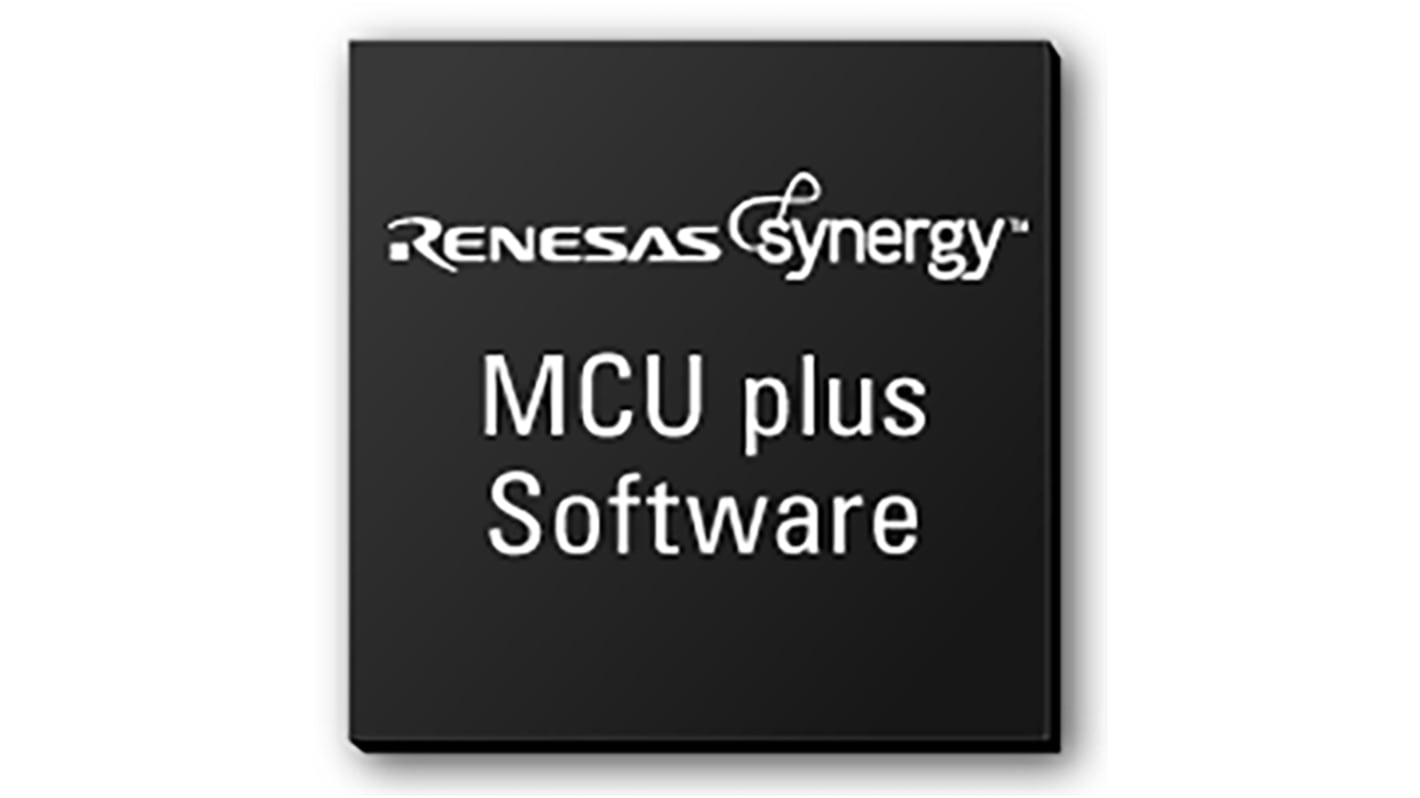

Name: Renesas Electronics R7FS1JA783A01CFM#AA0, 32 bit ARM Cortex M23, S1JA Microcontroller, 48 MHz, 256kB FLASH, 64-Pin PLQP
Brand: Renesas Electronics
SKU: 181-2319
Price: 47.60 HKD
Availability: InStock

Renesas Electronics Microcontroller

The Renesas Electronics S1JA family type, PLQP package, surface mount, 64-pin 32-bit arm cortex-M23 core microcontroller has a maximum voltage rating of 5.5V. The microcontroller operates at a maximum speed of 48MHz and features 256kb ISP flash program memory, 32kb of SRAM. It has error correction code (ECC), flash area protection, ADC self-diagnosis function, clock frequency accuracy measurement circuit (CAC) and cyclic redundancy check (CRC) calculator safety features.

Features and Benefits

• 12-bit D/A converter

• 16-bit resolution A/D converter

• 2 4-bit Sigma-Delta A/D converter

• 8-bit D/A converter

• Capacitive touch sensing unit

• Data transfer modes such as single chip mode, USB boot mode

• General PWM timer 32-bit (GPT32)

• High speed on-chip oscillator

• On-chip power-on-reset (POR), voltage detector (LVD) and key interrupt function (KIF)

• One watchdog timer

• Operation temperature ranges between -40°C and 85°C

• Operational amplifier with configurable switches

• Serial interfaces - 4-channel CAN, 3-channel UART and 2-channel I2C

• Six general PWM timer 16-bit (GPT16)

• USB 2.0 full speed module

Applications

• Electronic equipment

• Low power

• Temperature sensor

單位	每單位
1 - 4	HK$47.60
5 - 9	HK$45.70
10 +	HK$43.90

選取全部	屬性	值
	品牌	Renesas Electronics
	Product Type	Microcontroller
	Series	S1JA
	Package Type	PLQP
	Mount Type	Surface
	Pin Count	64
	Device Core	ARM Cortex M23
	Data Bus Width	32bit
	Program Memory Size	256kB
	Maximum Clock Frequency	48MHz
	RAM Size	32kB
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	105°C
	DACs	2 x 8 Bit
	Analogue Comparators	2
	Maximum Operating Temperature	-40°C
	Length	10.1mm
	Height	1.55mm
	Width	10.1 mm
	Standards/Approvals	No
	Minimum Supply Voltage	2.4V
	Automotive Standard	No
	ADCs	17 x 16 Bit
	Program Memory Type	FLASH
	Number of Timers	2
