Renesas Electronics R7FS3A77C3A01CFP#AA1, 32 bit ARM Cortex M4, S3A7 Microcontroller, 48 MHz, 1MB FLASH, 100-Pin LQFP

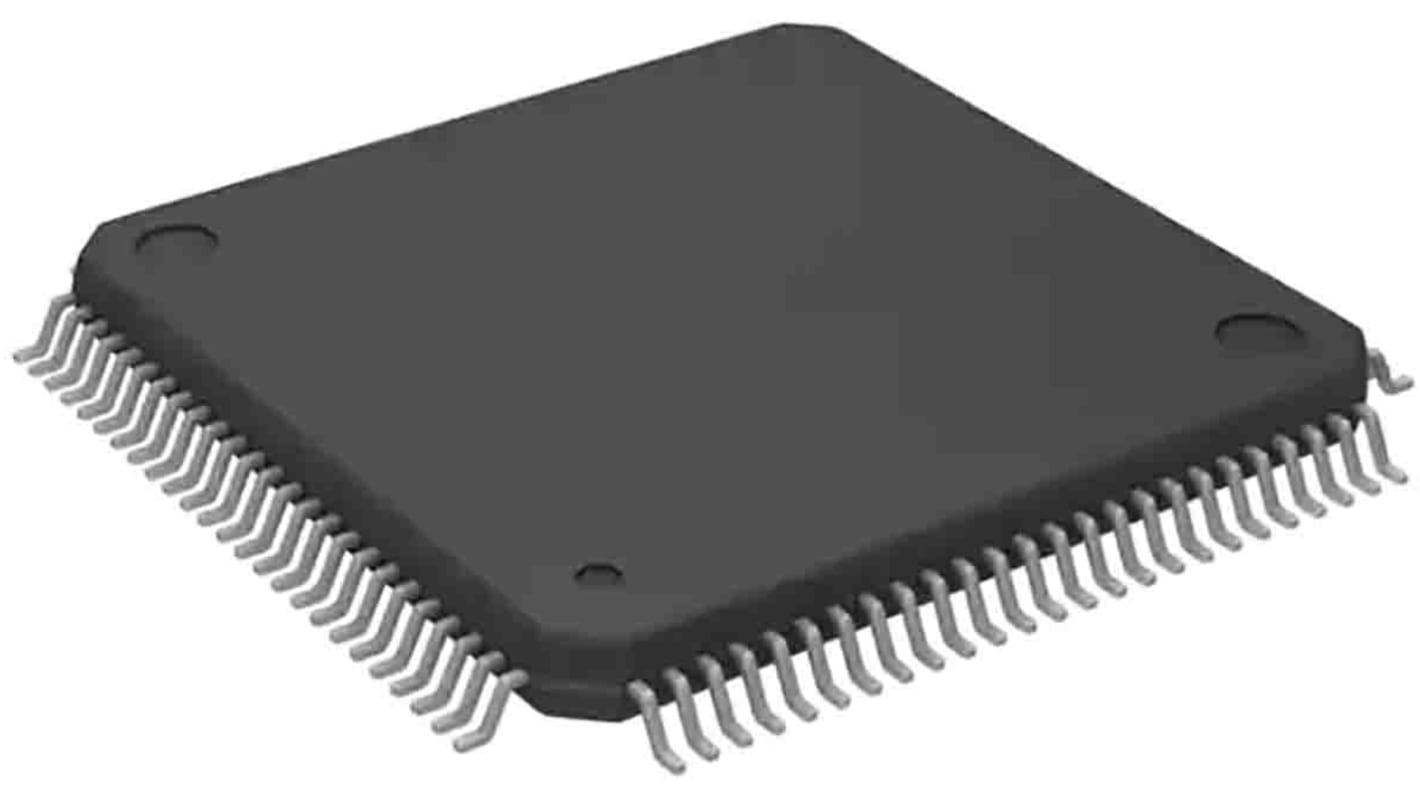

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Microcontrollers
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
包裝方式：
RS庫存編號:
192-8159
製造零件編號:
R7FS3A77C3A01CFP#AA1
製造商:
Renesas Electronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Renesas Electronics

Product Type

Microcontroller

Series

S3A7

Package Type

LQFP

Mount Type

Surface

Pin Count

100

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

1MB

Maximum Clock Frequency

48MHz

RAM Size

192kB

Maximum Supply Voltage

5.5V

Analogue Comparators

4

DACs

2 x 12 Bit

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Length

14.1mm

Height

1.4mm

Standards/Approvals

No

Width

14.1mm

Minimum Supply Voltage

1.6V

Program Memory Type

FLASH

Instruction Set Architecture

DSP

Number of Timers

10

ADCs

25 x 14 Bit

Automotive Standard

No

Ideal for monitoring applications that may require ongoing feature upgrades for multiple services, the S3A7 MCU Group offers ample room for expansion and the optimal combination of low power and high performance, with an Arm® Cortex®-M4 CPU core running up to 48MHz, 1 MB of flash memory and 192 KB of SRAM. It includes an additional 12bit D/A Converter as well as multiple 32bit General PWM timers and serial communications interfaces.
