產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32L031F6
	Package Type	TSSOP
	Mount Type	Surface
	Pin Count	20
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	32kB
	Maximum Clock Frequency	32MHz
	RAM Size	1kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	6.6mm
	Analogue Comparators	2
	Height	1.05mm
	Maximum Power Dissipation Pd	333mW
	Width	4.5 mm
	Number of Programmable I/Os	38
	Standards/Approvals	No
	Minimum Supply Voltage	1.65V
	Distrelec Product Id	304-38-761
	Number of Timers	1
	Program Memory Type	FLASH
	ADCs	10 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32L031F6
	Package Type TSSOP
	Mount Type Surface
	Pin Count 20
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 32kB
	Maximum Clock Frequency 32MHz
	RAM Size 1kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 6.6mm
	Analogue Comparators 2
	Height 1.05mm
	Maximum Power Dissipation Pd 333mW
	Width 4.5 mm
	Number of Programmable I/Os 38
	Standards/Approvals No
	Minimum Supply Voltage 1.65V
	Distrelec Product Id 304-38-761
	Number of Timers 1
	Program Memory Type FLASH
	ADCs 10 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC

STM32L031F6P6 Datasheet

COO (Country of Origin):: PH

The access line ultra-low-power STM32L031x4/6 family incorporates the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, high-speed embedded memories (up to 32 Kbytes of Flash program memory, 1 Kbytes of data EEPROM and 8 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.

The STM32L031x4/6 devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.

The STM32L031x4/6 devices offer several Analogue features, one 12-bit ADC with hardware oversampling, two ultra-low-power comparators, several timers, one low-power timer (LPTIM), three general-purpose 16-bit timers, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock.

單位	每單位	每包*
5 - 15	HK$16.16	HK$80.80
20 - 30	HK$15.80	HK$79.00
35 +	HK$15.32	HK$76.60

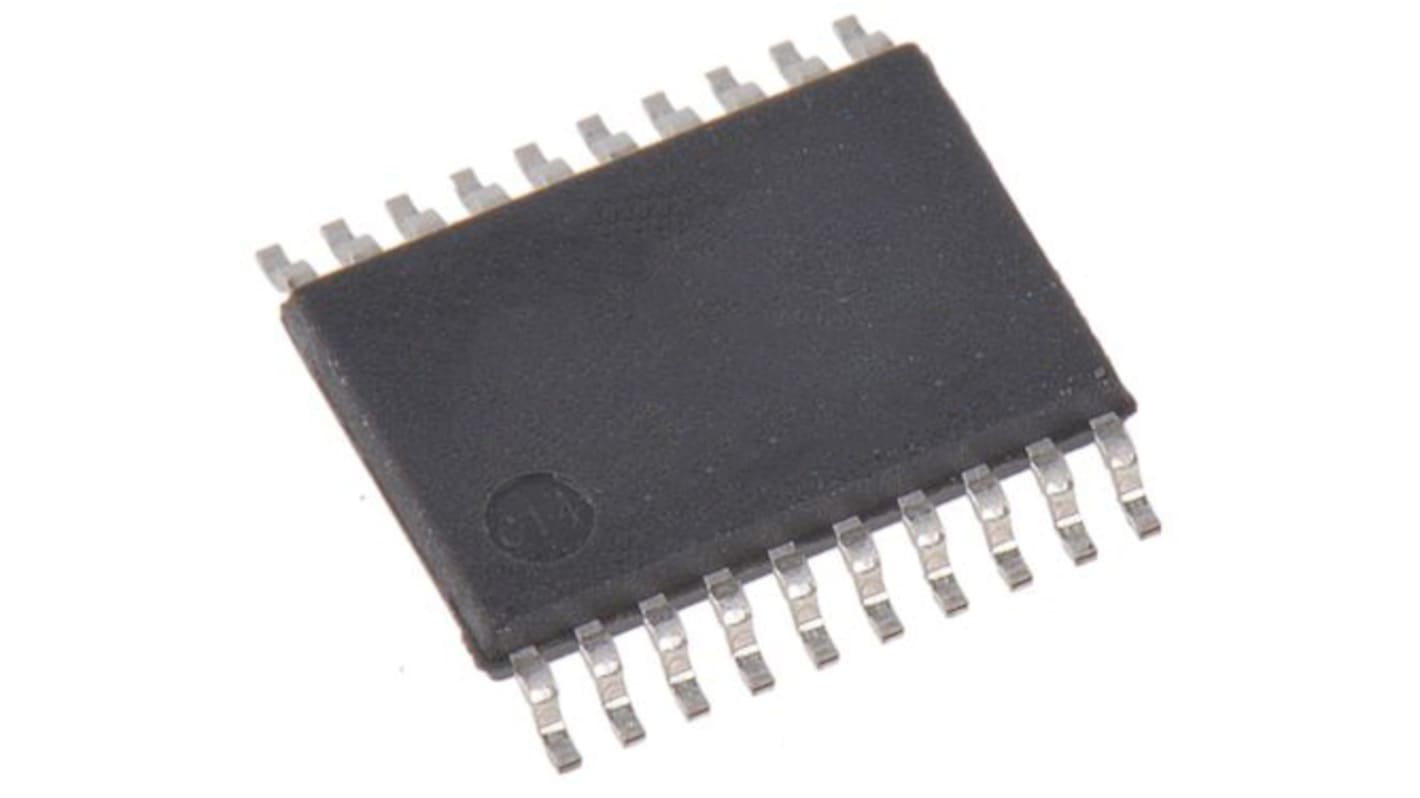

STMicroelectronics STM32L031F6P6, 32 bit ARM Cortex M0+, STM32L031F6 Microcontroller, 32 MHz, 32kB FLASH, 20-Pin TSSOP
