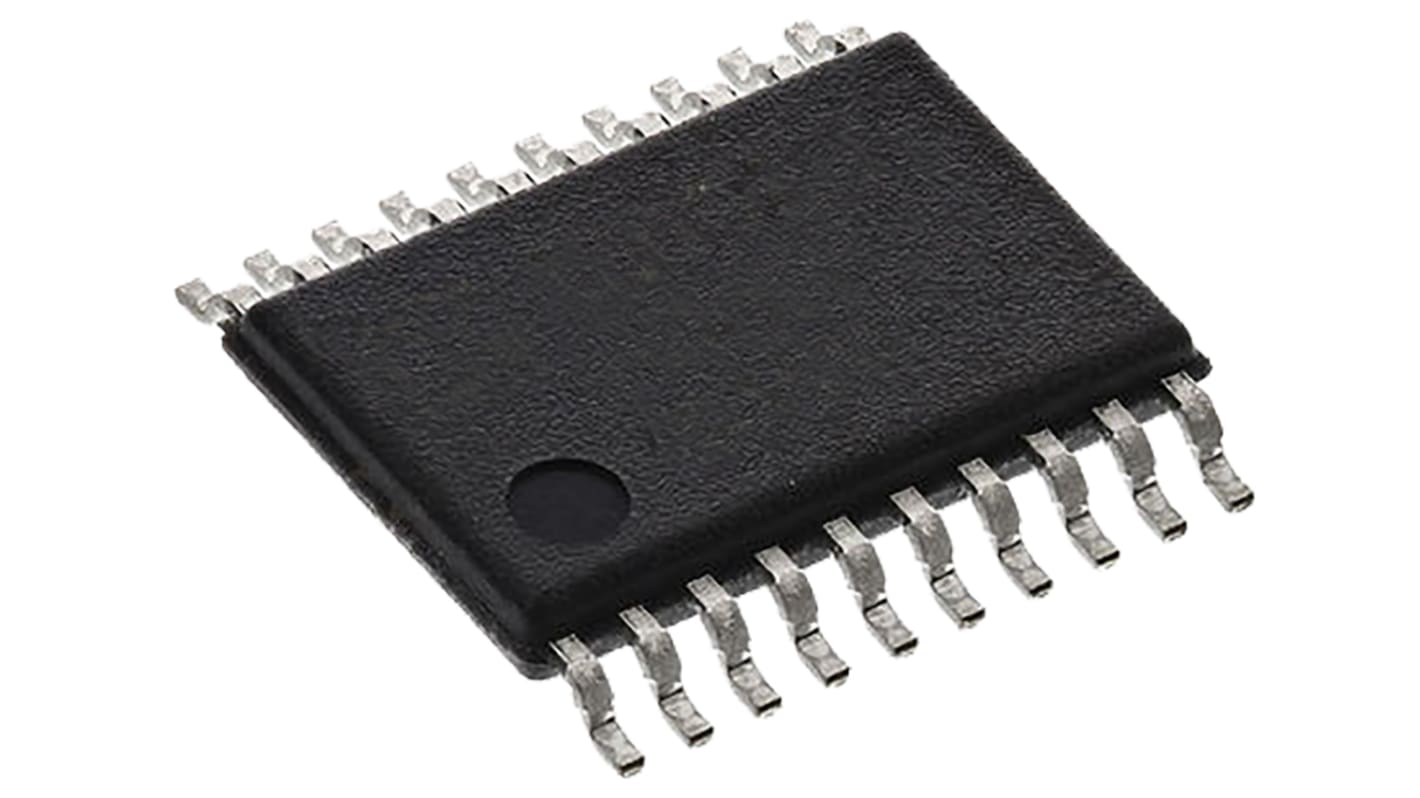

STMicroelectronics, 8bit STM8, STM8L Microcontroller, 16MHz, 4 kB Flash, 20-Pin TSSOP

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Microcontrollers
可享批量折扣

小計（1 包，共 2 件）*

HK$19.80

Add to Basket
選擇或輸入數量
有庫存
  • 184 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每包*
2 - 18HK$9.90HK$19.80
20 - 36HK$9.70HK$19.40
38 +HK$9.45HK$18.90

* 參考價格

包裝方式：
RS庫存編號:
724-9839
製造零件編號:
STM8L101F2P6
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Family Name

STM8L

Package Type

TSSOP

Mounting Type

Surface Mount

Pin Count

20

Device Core

STM8

Data Bus Width

8bit

Program Memory Size

4 kB

Maximum Frequency

16MHz

RAM Size

1.5 kB

USB Channels

0

Number of PWM Units

2 x 16 bit

Number of SPI Channels

1

Number of UART Channels

0

Number of USART Channels

1

Typical Operating Supply Voltage

1.65 → 3.6 V

Number of I2C Channels

1

Number of CAN Channels

0

Instruction Set Architecture

CISC

Length

6.6mm

Maximum Operating Temperature

+85 °C

Width

4.5mm

Minimum Operating Temperature

-40 °C

Dimensions

6.6 x 4.5 x 1.05mm

Pulse Width Modulation

2(2 x 16 bit)

Program Memory Type

Flash

Number of Ethernet Channels

0

Number of LIN Channels

0

Number of PCI Channels

0

Height

1.05mm

STM8L Series Ultra-Low Power 8-Bit Microcontrollers, STMicroelectronics


The STM8L is based on the 8-bit STM8 core

Ultra-low power consumption with the lowest power mode of 0.35μA

STM8L101: Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz

STM8L151/152: Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz

STM8 8-Bit Microcontrollers, STMicroelectronics


The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
