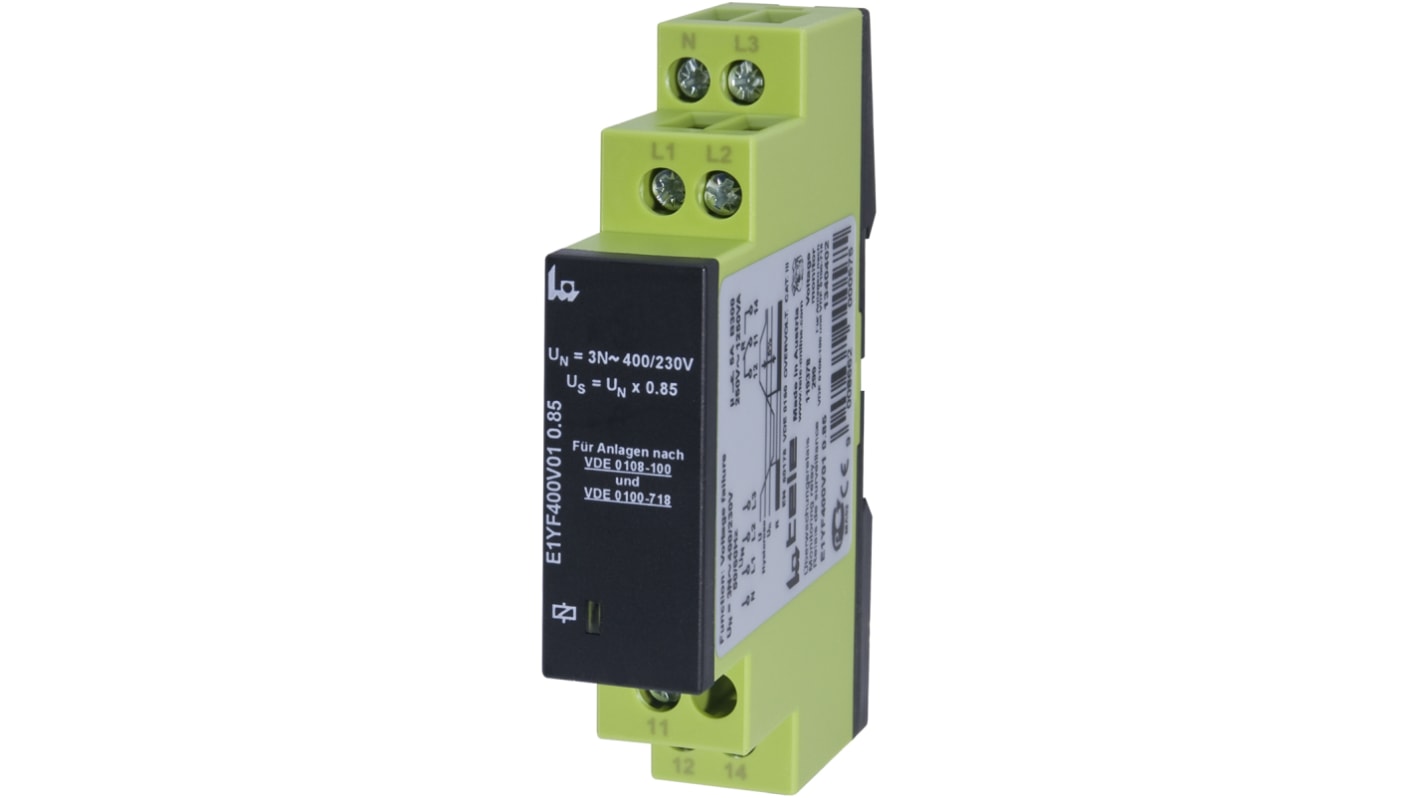

Tele Voltage Monitoring Relay, 3 Phase, SPDT, DIN Rail
- RS庫存編號:
- 182-9993
- 製造零件編號:
- E1YF400V01 0.85
- 製造商:
- Tele
查看所有Monitoring Relays
- RS庫存編號:
- 182-9993
- 製造零件編號:
- E1YF400V01 0.85
- 製造商:
- Tele
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- AT
產品詳細資訊
Voltage monitoring 3-phase against N, Voltage failure monitoring, 400V, 1 CO, fixed threshold voltage Us=195,5V
Monitoring relays - ENYA series
Undervoltage monitoring
Supply voltage = measured voltage
1 change over contact
Width 17.5 mm
Installation design
Undervoltage monitoring
Supply voltage = measured voltage
1 change over contact
Width 17.5 mm
Installation design
規格
Attribute | Value |
|---|---|
| Monitoring Application | Voltage |
| Electrical Phase | 3 |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Undervoltage |
| Mounting Type | DIN Rail |
| Time Delay | 200ms |
| Frequency Sensing Range | 48 → 63Hz |
| Series | ENYA |
| Maximum Operating Temperature | +55°C |
| Width | 17.5mm |
| Height | 87mm |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | +55°C |
| Dimensions | 65 x 17.5 x 87mm |
| Length | 65mm |
| Maximum Frequency Sensed | 63Hz |
| Minimum Frequency Sensed | 48Hz |
