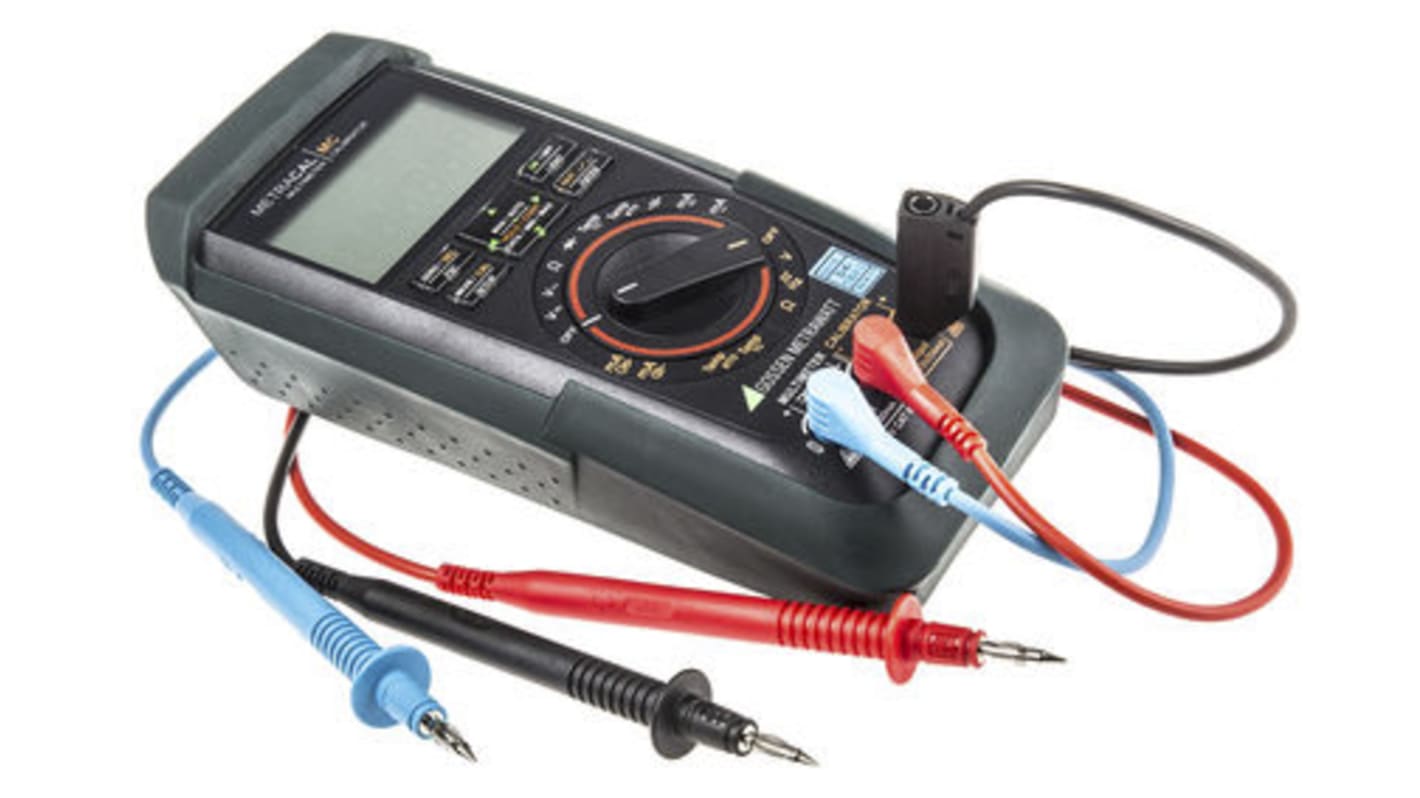

Gossen Metrawatt METRACAL MC Multi-Function Calibrator, 300 mA, 300V 200 mm 45 mm 87mm

RS庫存編號:: 699-5229
Distrelec 貨號:: 176-49-622
製造零件編號:: M245A
製造商:: Gossen Metrawatt

Gossen Metrawatt METRACAL MC Multi-Function Calibrator, 300 mA, 300V 200 mm 45 mm 87mm

此圖片僅供參考，請參閲產品詳細資訊及規格

小計（1 件）*

HK$30,904.70

訂單超過 HK$250.00 免費送貨

有庫存

加上 6 件從 2026年11月09日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$30,904.70

* 參考價格

RS庫存編號:: 699-5229
Distrelec 貨號:: 176-49-622
製造零件編號:: M245A
製造商:: Gossen Metrawatt

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Gossen Metrawatt
	Product Type	Multi-Function Calibrator
	Maximum Voltage Measurement	300V
	Accuracy	±1 %
	Port Connections	USB
	Battery Life	70h
	Maximum Current Measurement	300mA
	Battery Type	AA
	Power Source	Battery
	Safety Category Level	CAT II, CAT IV
	Safety Category Voltage	600V
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, CE, DAkkS Calibration Certificate
	Length	45mm
	Height	200mm
	Hazardous Area Certification	No
	Weight	430g
	Width	87mm
	Model Number	METRACAL MC
	Resolution	0.1 s

	選取全部
	品牌 Gossen Metrawatt
	Product Type Multi-Function Calibrator
	Maximum Voltage Measurement 300V
	Accuracy ±1 %
	Port Connections USB
	Battery Life 70h
	Maximum Current Measurement 300mA
	Battery Type AA
	Power Source Battery
	Safety Category Level CAT II, CAT IV
	Safety Category Voltage 600V
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, CE, DAkkS Calibration Certificate
	Length 45mm
	Height 200mm
	Hazardous Area Certification No
	Weight 430g
	Width 87mm
	Model Number METRACAL MC
	Resolution 0.1 s

不適用

COO (Country of Origin):: DE

Gossen-Metrawatt Multi-Function Calibrator, 300V Maximum Voltage, 300mA Maximum Current - M245A

This multi-function calibrator provides portable electrical measurement and sourcing for field and workshop environments. It is battery powered with a rechargeable lithium‑ion cell that supports extended operation and connects via USB for data exchange. The unit operates across a broad ambient range suitable for many industrial settings and carries multiple standards/approvals and a DAkkS calibration certificate for traceable results.

Features and Benefits:

• *Made in Germany - including DAkkS calibration certificate
• 0.1s resolution enables precise timing measurements and verification
• ±1% accuracy ensures consistent measurement conformity
• 70h battery life permits prolonged field usage without recharge
• Safety rating CAT II and CAT IV reduces risk in varied installations
• ANSI and BS EN approvals support ESD and electrical measurement protocols

Applications

• Suitable for on‑site verification of control system signals
• Ideal for maintenance of voltage and current sensing equipment
• Used for calibration tasks requiring traceable DAkkS certification
• Can be used for electrical testing up to 300V in distribution panels
• Appropriate for time‑critical functional testing in workshops

What environmental range can it tolerate for field use?

It operates between -10°C and 50°C enabling use in cold stores and heated plant rooms.

How is data transfer handled during calibrations?

A USB port provides a direct connection for logging and configuration with compatible tools.

What are the unit’s physical dimensions and weight?

The instrument measures 87mm x 200mm x 45mm and weighs 430g for easy transport.

What certification supports its electrostatic discharge handling?

It conforms to ANSI/ESD S20.20:2014 and BS EN 61340‑5‑1:2007 for ESD control.

What power source does it use and how long does it run?

It uses a rechargeable lithium‑ion battery and delivers approximately 70 hours of operation.
