Jumo di 308 LCD Multi-Function Panel Meters for Current, Pressure, Voltage, Temperature, 48 mm x 96 mm
- RS庫存編號:
- 467-030
- Distrelec 貨號:
- 304-01-012
- 製造零件編號:
- 701550/181-000-23/000
- 製造商:
- Jumo
小計（1 件）*
HK$3,878.70
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 18 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 + | HK$3,878.70 |
* 參考價格
- RS庫存編號:
- 467-030
- Distrelec 貨號:
- 304-01-012
- 製造零件編號:
- 701550/181-000-23/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Product Type | Multi-Function Panel Meters | |
| Properties Measured | Current, Pressure, Voltage, Temperature | |
| Display Type | LCD | |
| Cutout Height | 48mm | |
| Depth | 105mm | |
| Number of Digits | 5 | |
| Cutout Width | 96mm | |
| Digit Height | 18mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | cULus | |
| Maximum Measurement | 600 °C | |
| Meter Type | Digital | |
| Series | di 308 | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Product Type Multi-Function Panel Meters | ||
Properties Measured Current, Pressure, Voltage, Temperature | ||
Display Type LCD | ||
Cutout Height 48mm | ||
Depth 105mm | ||
Number of Digits 5 | ||
Cutout Width 96mm | ||
Digit Height 18mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals cULus | ||
Maximum Measurement 600 °C | ||
Meter Type Digital | ||
Series di 308 | ||
豁免
- COO (Country of Origin):
- DE

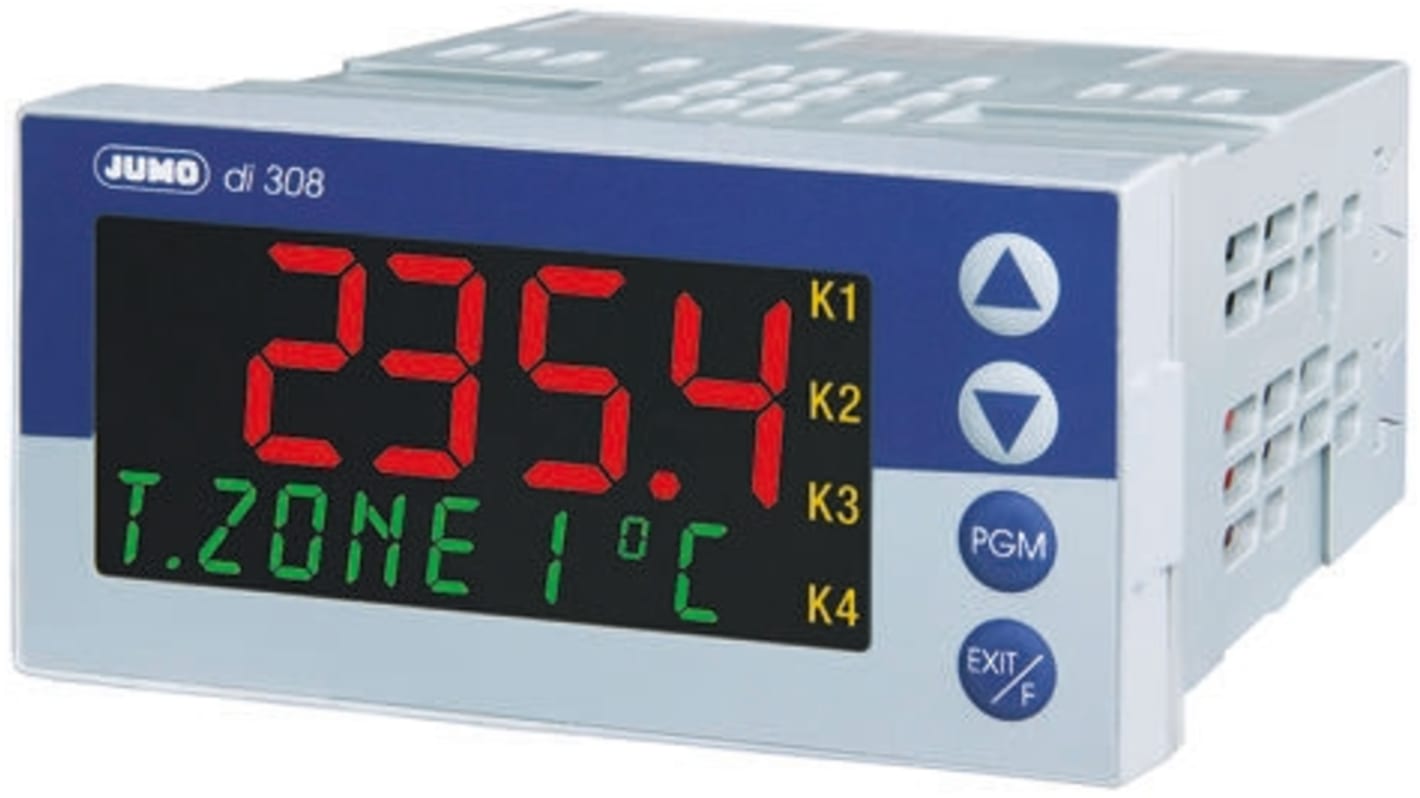

Jumo Digital Indicator
The Jumo digital indicator is shows temperatures in units like °C or °F and standard signals in plain text. It has 3 expansion slots that can be filled with additional inputs, outputs and interfaces. The high-contrast, multicolour LCD is used for presenting measurements and for operator prompting. It consists of a 5-digit, 7-segment display (for the measurement or for setting parameters) and an 8-character, 16-segment display with colour changeover (for the value, parameter name, channel name, process/alarm text as a running text of maximum 24 characters, or a pseudo bar graph). An RS422/485 or a PROFIBUS-DP interface can be used to integrate the instrument into a data network.
Features and Benefits
Configurable process display text, maximum 24 character ticker
Universal input for analogue signals
Can be expanded with optional modules
Setup programme for quick and easy configuration
4 switch status indicators for the binary outputs
4 limit comparators
Supply voltage rating is 110VAC to 240VAC
Fast and convenient configuration through setup program
Cut-out height of 48mm, width of 96mm and depth of 105mm
Three option slots
Electrical connection is made at the back via screw terminals
DIN installation housing
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
cRUus certified
EN 61010, Part 1
EN 61326-1 Class B
IP65 rated (front)
IP20 rated (back )
