產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Lumel
	Properties Measured	Standard Current, Standard Voltage
	Display Type	LED
	Cutout Height	92mm
	Cutout Width	45mm
	Number of Digits	4
	Depth	64mm
	Digit Height	20 mm
	Minimum Temperature	-10°C
	Maximum Temperature	+55°C
	Measurement Range	-0.5 → 11 V, -1 → 22 mA, -11 → 11 V, -11 → 66 mV, 3.6 → 26 mA, -66 → 66 mV
	Minimum Measurement	-66 mV, -11 mV, -11 V, -1 mA, -0.5 V, 3.6 mA
	Series	N24
	Meter Type	Digital
	Approvals	CE Certified

	選取全部
	品牌 Lumel
	Properties Measured Standard Current, Standard Voltage
	Display Type LED
	Cutout Height 92mm
	Cutout Width 45mm
	Number of Digits 4
	Depth 64mm
	Digit Height 20 mm
	Minimum Temperature -10°C
	Maximum Temperature +55°C
	Measurement Range -0.5 → 11 V, -1 → 22 mA, -11 → 11 V, -11 → 66 mV, 3.6 → 26 mA, -66 → 66 mV
	Minimum Measurement -66 mV, -11 mV, -11 V, -1 mA, -0.5 V, 3.6 mA
	Series N24
	Meter Type Digital
	Approvals CE Certified

Datasheet

COO (Country of Origin):: PL

Indicators of N24 series are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. Current

4-digit LED display, digits of 20 mm high,
Possible configuration of parameters through the PD14 programmer and the free delivered LPConfig program,
precision of displayed results (decimal point),
measurement averaging time,
recounting of indications (individual characteristic),
automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
Supply: 85…253 V a.c./d.c. or 20…24 V a.c./d.c., 110 V a.c., 230 V a.c.
Overall dimensions: 96 x 48 x 64 mm

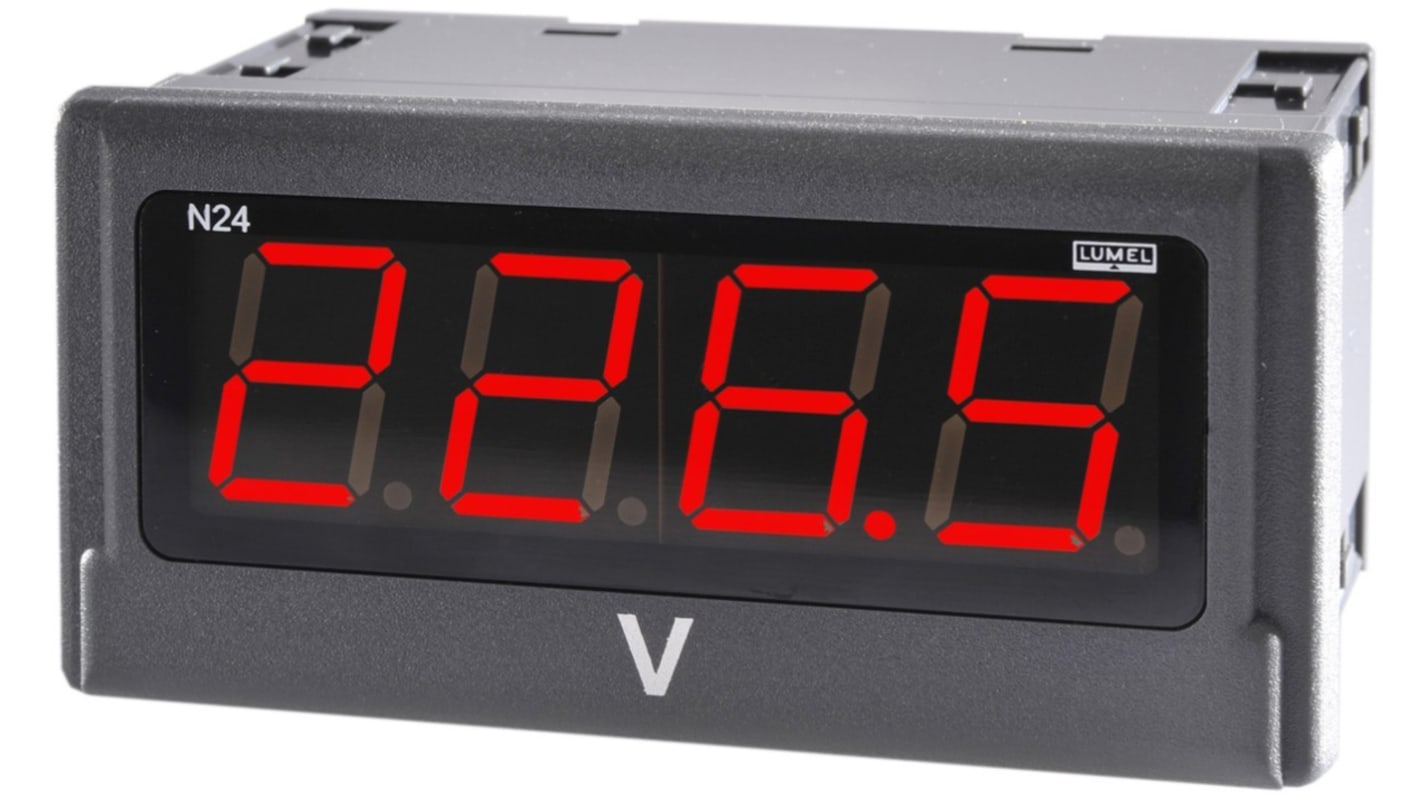

Lumel N24 LED Digital Panel Multi-Function Meter, 92mm x 45mm
