Martindale ET5 Multifunction Tester
- RS庫存編號:
- 788-4580
- 製造零件編號:
- ET5
- 製造商:
- Martindale
8 現貨庫存,可於3工作日發貨。
單價 个
HK$1,420.89
單位 | 每單位 |
---|---|
1 + | HK$1,420.89 |
- RS庫存編號:
- 788-4580
- 製造零件編號:
- ET5
- 製造商:
- Martindale
不適用
- COO (Country of Origin):
- TW

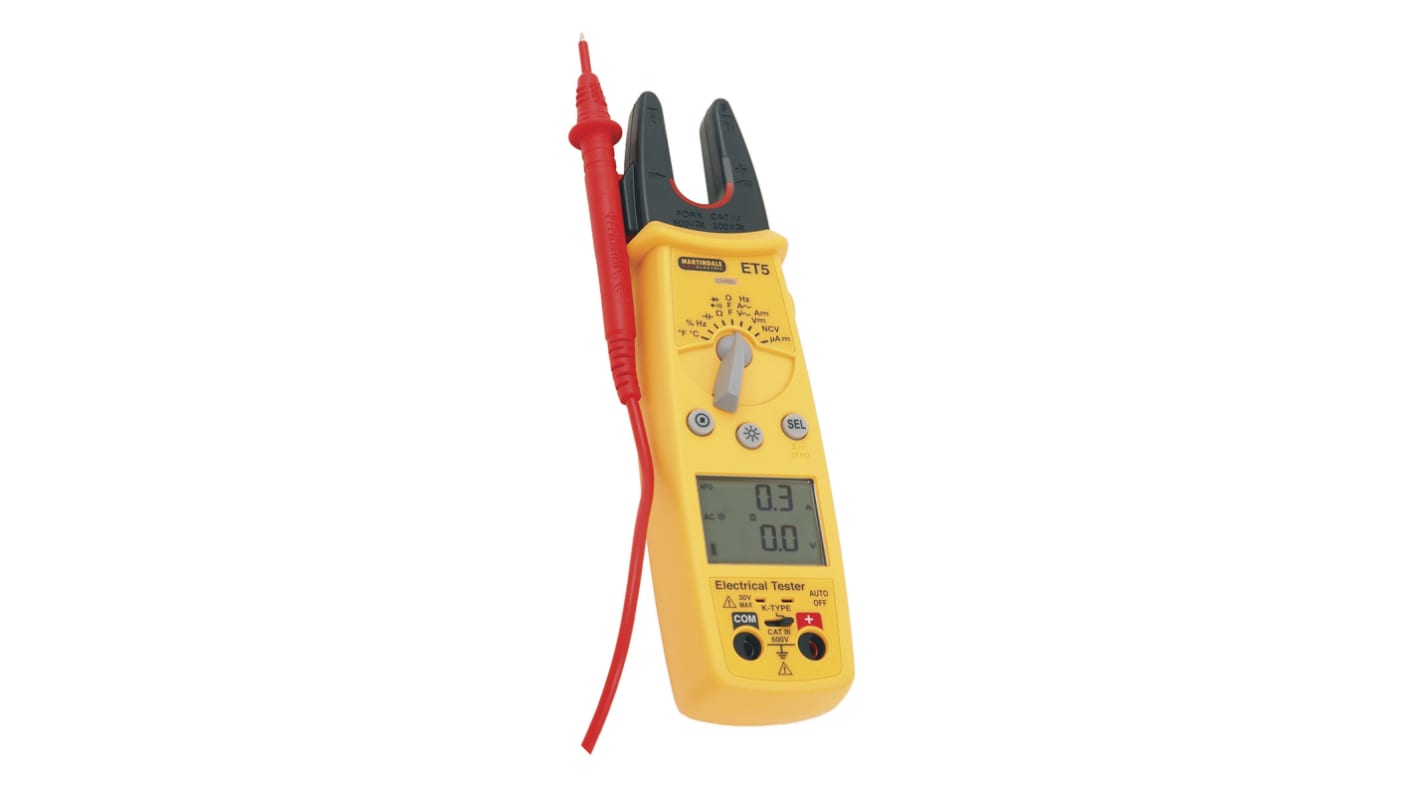

ET5 Electrical Tester
The Martindale ET5 is a compact electrical tester for measuring voltage, resistance and current. The electrical tester has all of the same useful functions as the ET4 but with the additional features of capacitance, temperature and duty cycle.
Features include:
AC / DC Current: 0.1A to 200A
AC / DC Voltage: 0.1mV to 600V
Resistance: 0.1Ω to 50MΩ
Frequency: 30Hz to 400Hz
Continuity: 0.1Ω to 500Ω, buzz at <30Ω
Diode Test: 1mV to 2V
Non-Contact Voltage Indicator: 70V to 600V
Temperature Measurement: -35°C to +500°C
Duty Cycle
Capcitance
Fork maximum conductor size: 15mm diameter
Power: 9V PP3 Alkaline (included)
Dimensions: 202 x 51 x 44 mm
Weight: 200g (battery included)
AC / DC Voltage: 0.1mV to 600V
Resistance: 0.1Ω to 50MΩ
Frequency: 30Hz to 400Hz
Continuity: 0.1Ω to 500Ω, buzz at <30Ω
Diode Test: 1mV to 2V
Non-Contact Voltage Indicator: 70V to 600V
Temperature Measurement: -35°C to +500°C
Duty Cycle
Capcitance
Fork maximum conductor size: 15mm diameter
Power: 9V PP3 Alkaline (included)
Dimensions: 202 x 51 x 44 mm
Weight: 200g (battery included)
SAFETY
Conforms to BS EN 61010-1, BS EN 61010-2-032, CAT III 600 V
Class II, Double Insulation
Pollution Degree 2, indoor use
Class II, Double Insulation
Pollution Degree 2, indoor use
EMC
Conforms to BS EN 61326-1
Supplied with
TL17 test leads, 9V battery, K type thermocouple and instructions
Attribute | Value |
---|---|
Model Number p | ET5 |
Maximum Voltage Measurement | 600V ac |
Test Type | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature |
Dimensions | 202.5 x 51 x 44mm |
Minimum Operating Temperature | 0°C |
Length | 202.5mm |
Maximum Operating Temperature | +40°C |
Power Source | Battery |
Width | 51mm |
Display Type | LCD |
Weight | 200g |
Safety Category Level | CAT III |
Safety Category Voltage | 600V |
Battery Type | 9V |
Height | 44mm |
Safety Category | CAT III 600V |
