Infineon EVAL-M1-6ED2230-B1 IGBT Gate Driver for FP15R12W1T4, 6ED2230S12T for Industrial drives, Compressors

查看此類別
可享批量折扣

小計（1 件）*

HK$5,807.50

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
1 - 2HK$5,807.50
3 - 4HK$5,691.30
5 +HK$5,577.50

* 參考價格

RS庫存編號:
234-2102
製造零件編號:
EVALM16ED2230B1TOBO1
製造商:
Infineon
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Infineon

Product Type

Evaluation Board

Power Management Function

IGBT Gate Driver

For Use With

Industrial drives, Compressors

Kit Classification

Evaluation Board

Featured Device

FP15R12W1T4, 6ED2230S12T

Kit Name

EVAL-M1-6ED2230-B1

Standards/Approvals

RoHS

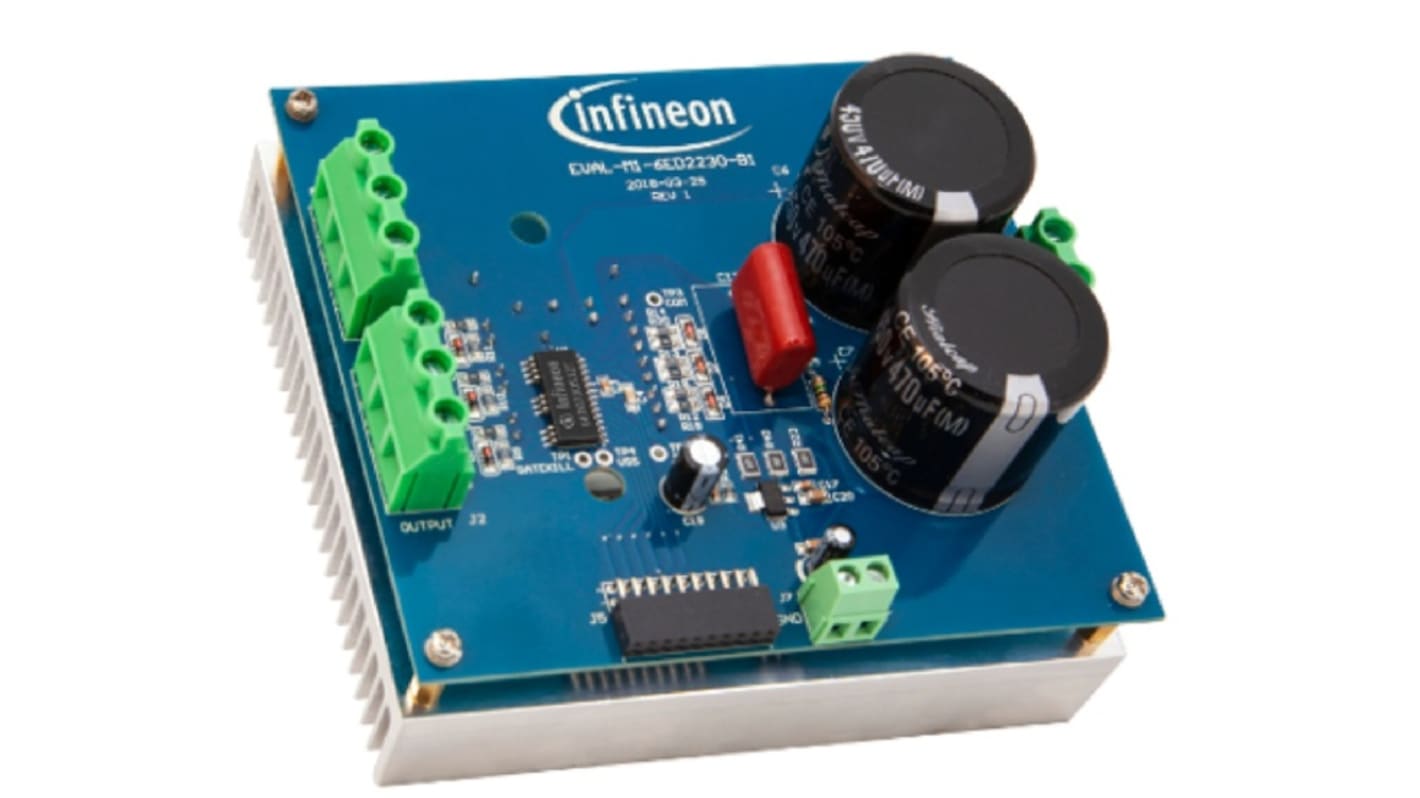

Evaluation Board for 1200 V Three-Phase SOI Gate Driver and EasyPIM™ IGBT modules


The EVAL-M1-6ED2230-B1 is a complete power evaluation board including a 1200 V three phase gate driver 6ED2230S12T and a EasyPIM™1B 1200 V three-phase module FP15R12W1T4. Designed for supporting motor drive applications with a power range up to 2 kW.

It provides AC and DC inputs as well as a 3-phase power output, offers a single emitter shunt for current sensing and a voltage divider for DC-link voltage measurement.

This power board is compatible with the iMOTION™ MADK (Modular Application Design Kit), such as Eval-M1- 099M-C for motor control.

Summary of Features


Infineon Thin-Film-SOI technology

Fully operational to +1200 V

Integrated Ultra‐fast Bootstrap Diode and OCP

Floating channel designed for bootstrap operation

Output source/sink current capability +0.35 A/‐0.65 A

Tolerant to negative transient voltage up to -100 V (Pulse width is up 700 ns) given by SOI-technology

Undervoltage lockout for both channels

3.3 V, 5 V, and 15 V input logic compatible

Over current protection with ±5% ITRIP threshold

Fault reporting, automatic Fault clear and Enable function on the same pin (RFE)

Matched propagation delay for all channels

Integrated 460 ns deadtime protection

Shoot-through (cross-conduction) protection

Benefits


1200 V, 15 A three phase input rectifier PIM (Power Integrated Modules) IGBT module

Fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC

Low switching losses

VCEsat with positive temperature coefficient

Low VCEsat

Al2O3substrate with low thermal restistance

Compact design

Solder contact technology

Rugged mounting due to integrated mounting clamps
