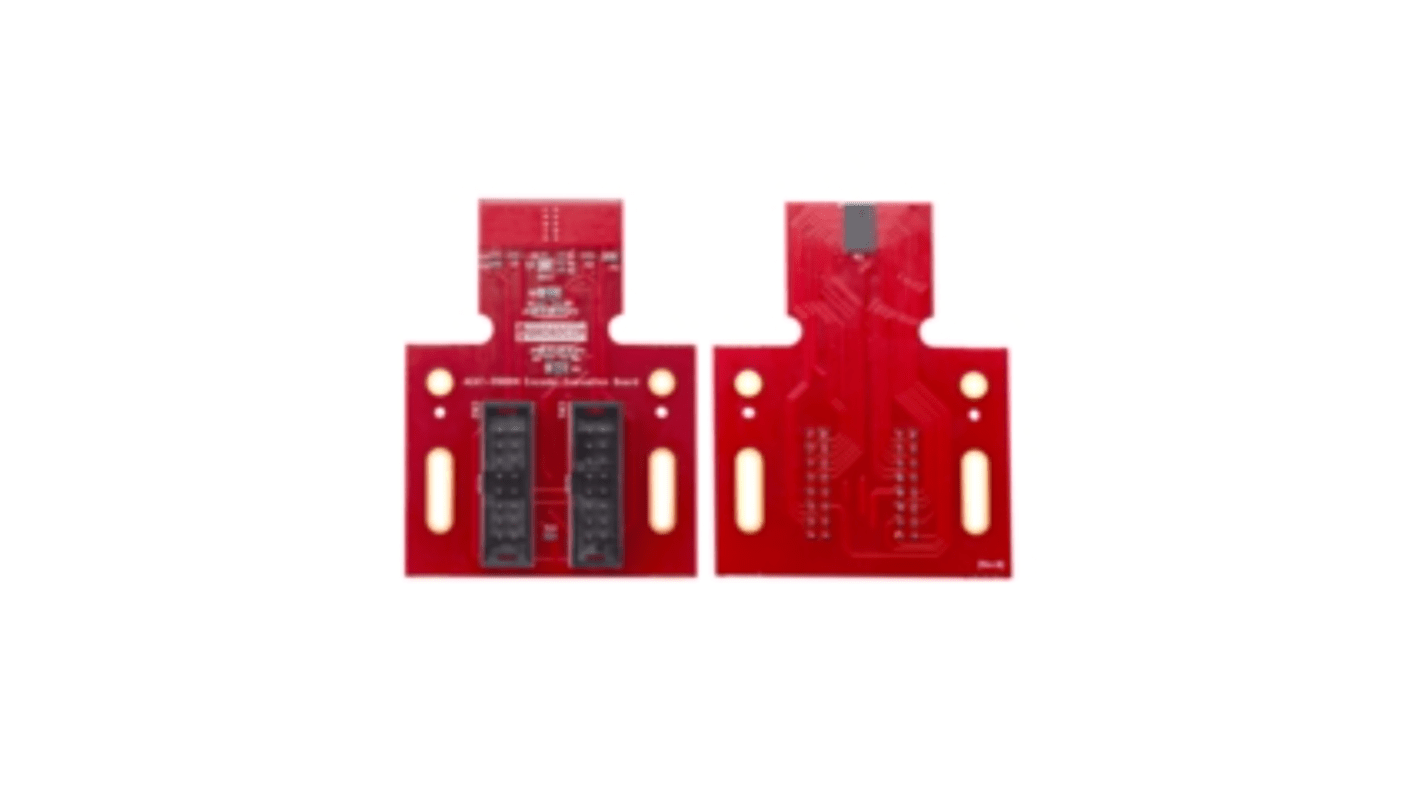

Broadcom Rotary Angle Sensor Evaluation Board for AEAT-9988M AEAT-9988M

查看所有Sensor Development Tools

小計（1 件）*

HK$1,175.30

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年3月27日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$1,175.30

* 參考價格

RS庫存編號:
266-401
製造零件編號:
HEDS-9988MEVB
製造商:
Broadcom
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Broadcom

Product Type

Sensor Development Tool

Sensor Technology

Rotary Angle Sensor

Featured Device

AEAT-9988M

For Use With

AEAT-9988M

Kit Classification

Evaluation Board

Standards/Approvals

No

COO (Country of Origin):
MY
The Broadcom Encoder Evaluation Board has a built-in multi-turn counter with battery backup power-off mode operation. The multi-turn resolution is programmable from 10 bits to 16 bits. Users can choose to receive the absolute angle position in PWM-encoded output signals. Incremental positions are transmitted on ABI and UVW signals with wide user configurable resolutions.

5V operating voltage

Operating temperature from -40 degree C to 125 degree C

500 micro A current consumption in Sleep Mode

RS 485 2.5 or 5 or 10 Mb per s

SSI 3 wire up to 10 MHz

SPI 4 wire up to 20 MHz

Programmable function to external hardware pin
