    Renesas Electronics US082-ZMOD4410EVZ Gas Sensor Evaluation Module for ZMOD4410 ZMOD4410

    Renesas Electronics
    RS庫存編號:
    233-9196
    製造零件編號:
    US082-ZMOD4410EVZ
    製造商:
    Renesas Electronics
    查看所有Sensor Development Tools
    26 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    HK$526.80

    單位Per unit
    1 - 4HK$526.80
    5 +HK$474.11
    RS庫存編號:
    233-9196
    製造零件編號:
    US082-ZMOD4410EVZ
    製造商:
    Renesas Electronics

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

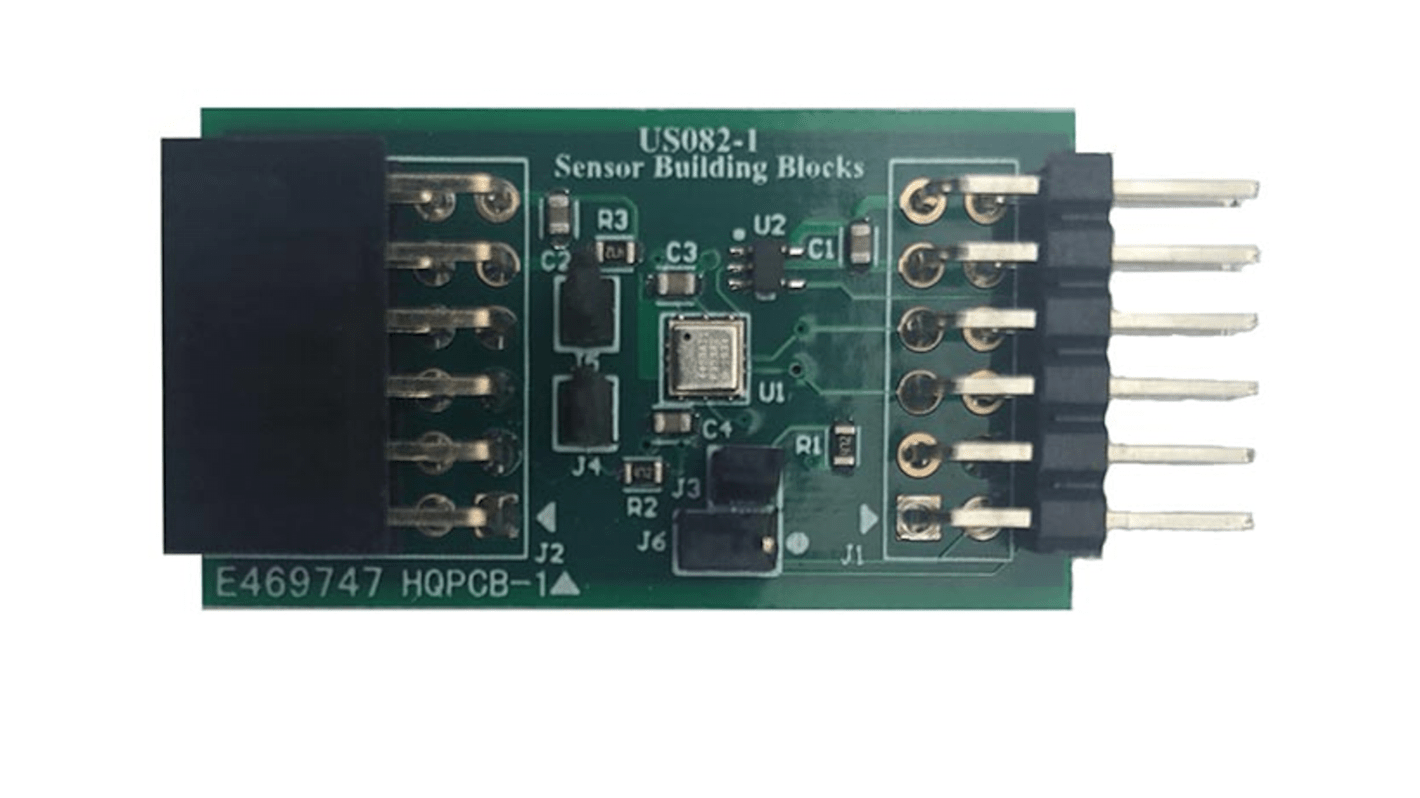

    The Renesas Electronics US082-ZMOD4410EVZ board enables quick prototyping of the ZMOD4410 gas sensor module for indoor air quality in a custom system design. The board provides a standard Pmod Type 6A (Extended I²C) connection for the on-board sensor to plug into any required MCU evaluation kit with a matching connector. The board features Pmod connectors on both sides of the board to allow additional Type 6/6A boards to be connected in a daisy-chained solution with multiple sensors on the same MCU Pmod connector. Software support present in the Renesas IDE (e² studio) provides code generation to connect the sensor and the MCU significantly reducing development time. Because of the standard connector and software support, this board is the best choice to rapidly create an IoT system.

    Measurement of total organic compounds (TVOC) concentrations and IAQ
    Module algorithm estimates carbon dioxide level (eCO₂)
    Algorithm to discriminate sulphur-based odors
    Standardized Type 6A Pmod connector supports I²C Extended interface
    Dual connectors allow pass-through signals for daisy-chained solutions
    Software support in e² studio minimizes development time with one-click code generation

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    規格

    AttributeValue
    Sensor TechnologyGas Sensor
    Featured DeviceZMOD4410
    For Use WithZMOD4410
    Kit ClassificationEvaluation Module
    Kit NameUS082-ZMOD4410EVZ
