Silicon Labs EFR32MG21A020F1024IM32-B ARM Cortex M33 System-On-Chip 32-Pin QFN
- RS庫存編號:
- 196-3318
- 製造零件編號:
- EFR32MG21A020F1024IM32-B
- 製造商:
- Silicon Labs

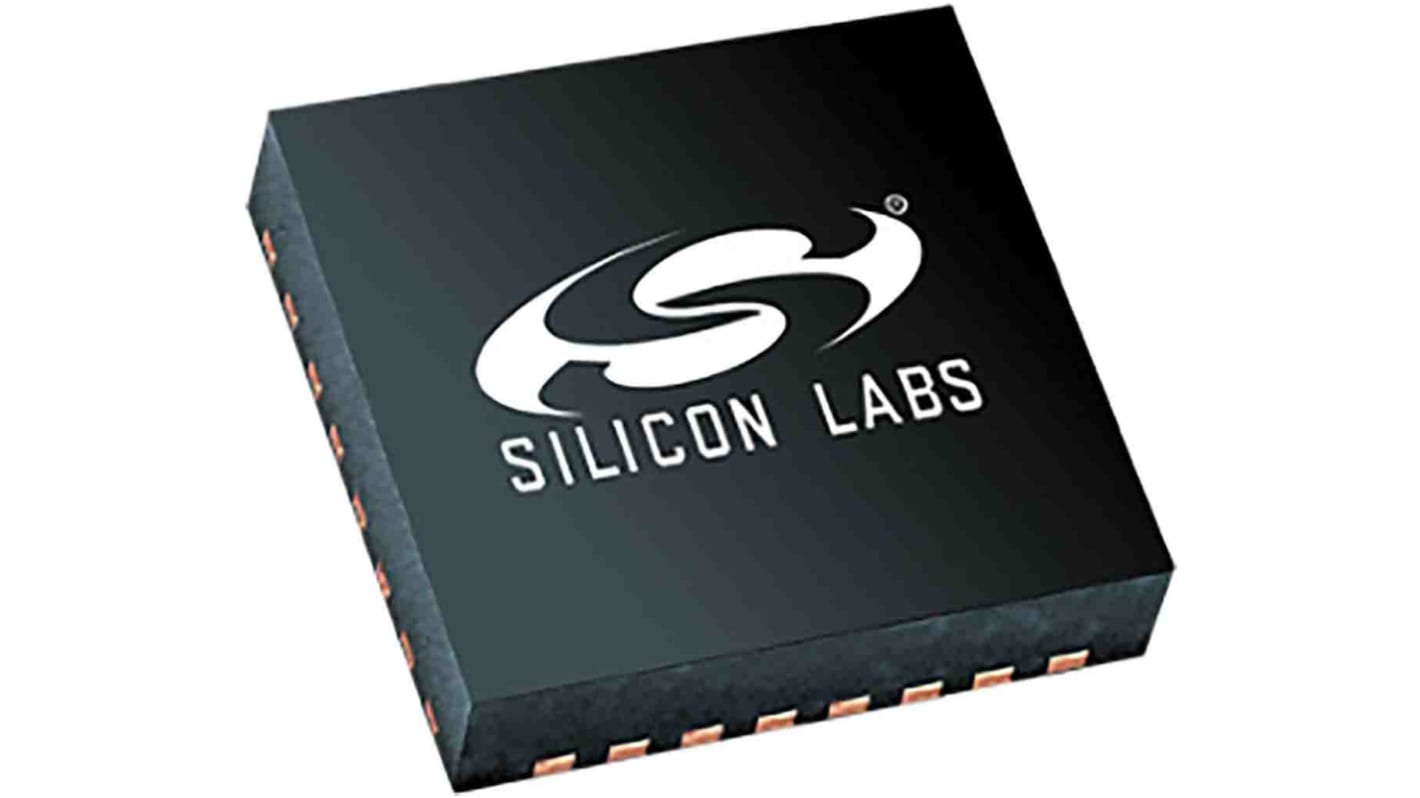

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 包，共 2 件）*
HK$89.80
訂單超過 HK$250.00 免費送貨
有庫存
- 114 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 2 - 18 | HK$44.90 | HK$89.80 |
| 20 - 36 | HK$43.75 | HK$87.50 |
| 38 + | HK$43.10 | HK$86.20 |
* 參考價格
- RS庫存編號:
- 196-3318
- 製造零件編號:
- EFR32MG21A020F1024IM32-B
- 製造商:
- Silicon Labs
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Silicon Labs | |
| Product Type | System-On-Chip | |
| Processing Unit | Microcontroller | |
| Technology | ARM Cortex M33 | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Clock Frequency | 38.4MHz | |
| Pin Count | 32 | |
| Program Memory Size | 1024kB | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 3.8V | |
| Data RAM Size | 96kB | |
| Minimum Operating Temperature | -40°C | |
| Data RAM Type | RAM | |
| Number of I/Os | 20 | |
| Maximum Operating Temperature | 125°C | |
| Height | 850μm | |
| Series | Mighty Gecko | |
| Width | 4.1mm | |
| Standards/Approvals | No | |
| Length | 4.1mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Silicon Labs | ||
Product Type System-On-Chip | ||
Processing Unit Microcontroller | ||
Technology ARM Cortex M33 | ||
Mount Type Surface | ||
Package Type QFN | ||
Clock Frequency 38.4MHz | ||
Pin Count 32 | ||
Program Memory Size 1024kB | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 3.8V | ||
Data RAM Size 96kB | ||
Minimum Operating Temperature -40°C | ||
Data RAM Type RAM | ||
Number of I/Os 20 | ||
Maximum Operating Temperature 125°C | ||
Height 850μm | ||
Series Mighty Gecko | ||
Width 4.1mm | ||
Standards/Approvals No | ||
Length 4.1mm | ||
Automotive Standard No | ||
EFR32MG21A020F1024IM32 EFR32MG21 Series 2 wireless SoCs include a 80 MHz ARM Cortex-M33 core, providing plenty of processing capability while a dedicated security core provides faster encryption, secure boot loading and debug access control. The device includes 1024 Flash, 96 RAM and is available in a QFN32 package. With up to + 20 dBm maximum power output and excellent receive sensitivity of -104 (250 kbps O-QPSK DSSS) dBm, the EFR32MG21A020F1024IM32 provides a robust RF link for reliable communications for Zigbee, Thread and multiprotocol applications and enables greater range and reliable RF communications. EFR32MG21A020F1024IM32 uses the same tools as EFR32MG Series 1, providing easy migration and fast time-to-market with development kits, SDKs, mobile apps and our patented network analyzer.
