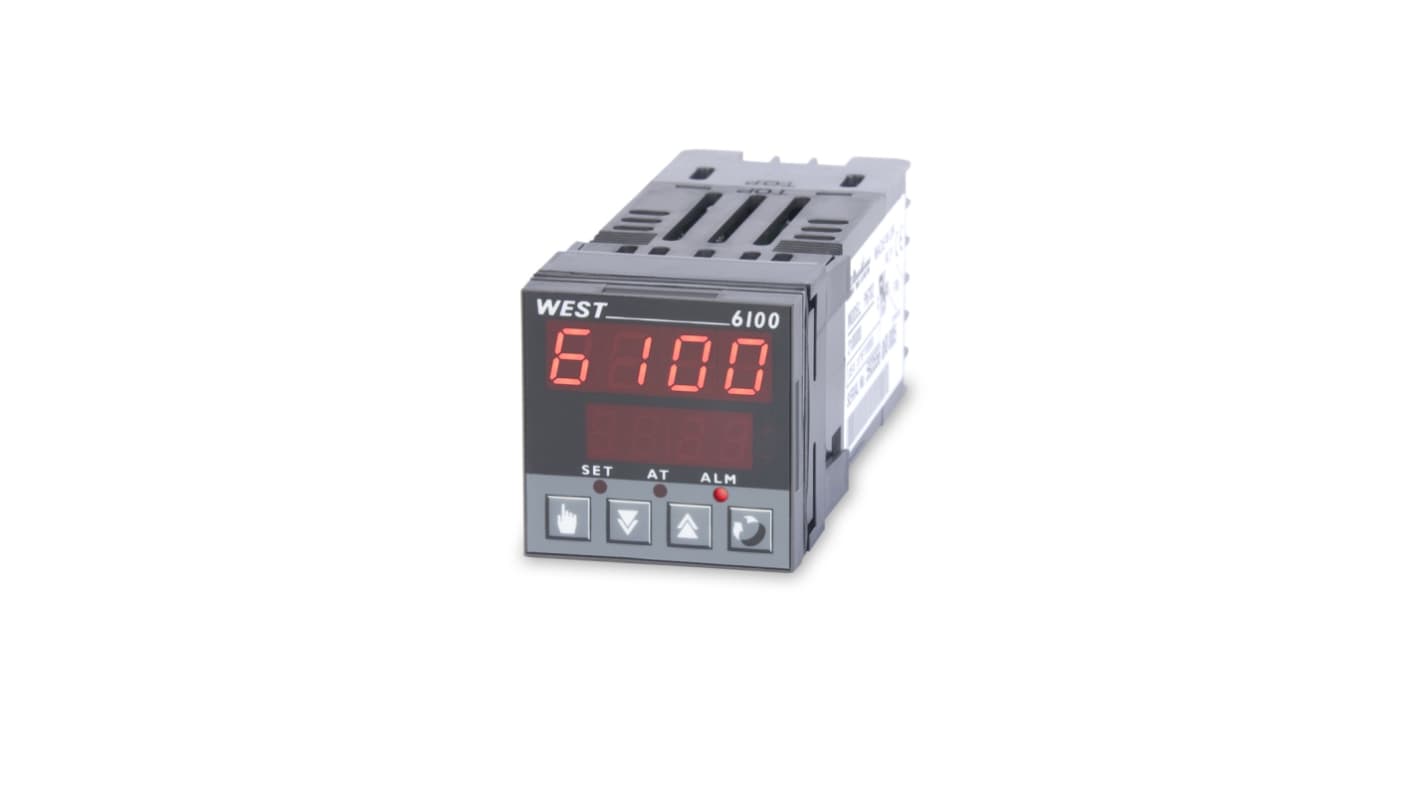

West Instruments P6100 Temperature Control Module, 3 Output Linear 240V PID Controller

查看所有Temperature Controllers

小計（1 件）*

HK$4,294.98

Add to Basket
選擇或輸入數量
暫時缺貨
  • 2 件從 2026年3月23日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$4,294.98

* 參考價格

RS庫存編號:
328-796
製造零件編號:
P6100-1110000
製造商:
West Instruments
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

West Instruments

Output Type

Linear

Product Type

Temperature Control Module

Number of Outputs

3

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-20°C

Control Type

PID Controller

Maximum Supply Voltage

240V

Digital Comms

RS485

Maximum Voltage

280Vrms

Display Type

LED

IP Rating

IP66

Width

48 mm

Standards/Approvals

UL & ULC, CE, RoHS

Series

P6100

Input Type

Thermocouple

Panel Depth

10mm

COO (Country of Origin):
GB
The West Instruments Temperature And Process Controller offers versatile control types, including Full PID with Pre-tune, Self-tune, manual tuning, or On-Off control. It supports heat only or heat and cool applications. The controller features Auto/Manual selection, which can be chosen from the front panel or via digital input, with bumpless transfer for smooth operation. It provides up to 3 output configurations, which can be used for control, alarm, 24VDC transmitter power supply, or retransmission of process values or setpoints. The controller offers high accuracy of ±0.1% of the input range and ±1 LSD, with T/C CJC accuracy better than 1°C.

Jumperless configuration

Auto detected hardware

Process and loop alarms

Modbus and ASCII protocol

IP66 rated for front panel protection

CE and UL recognised
