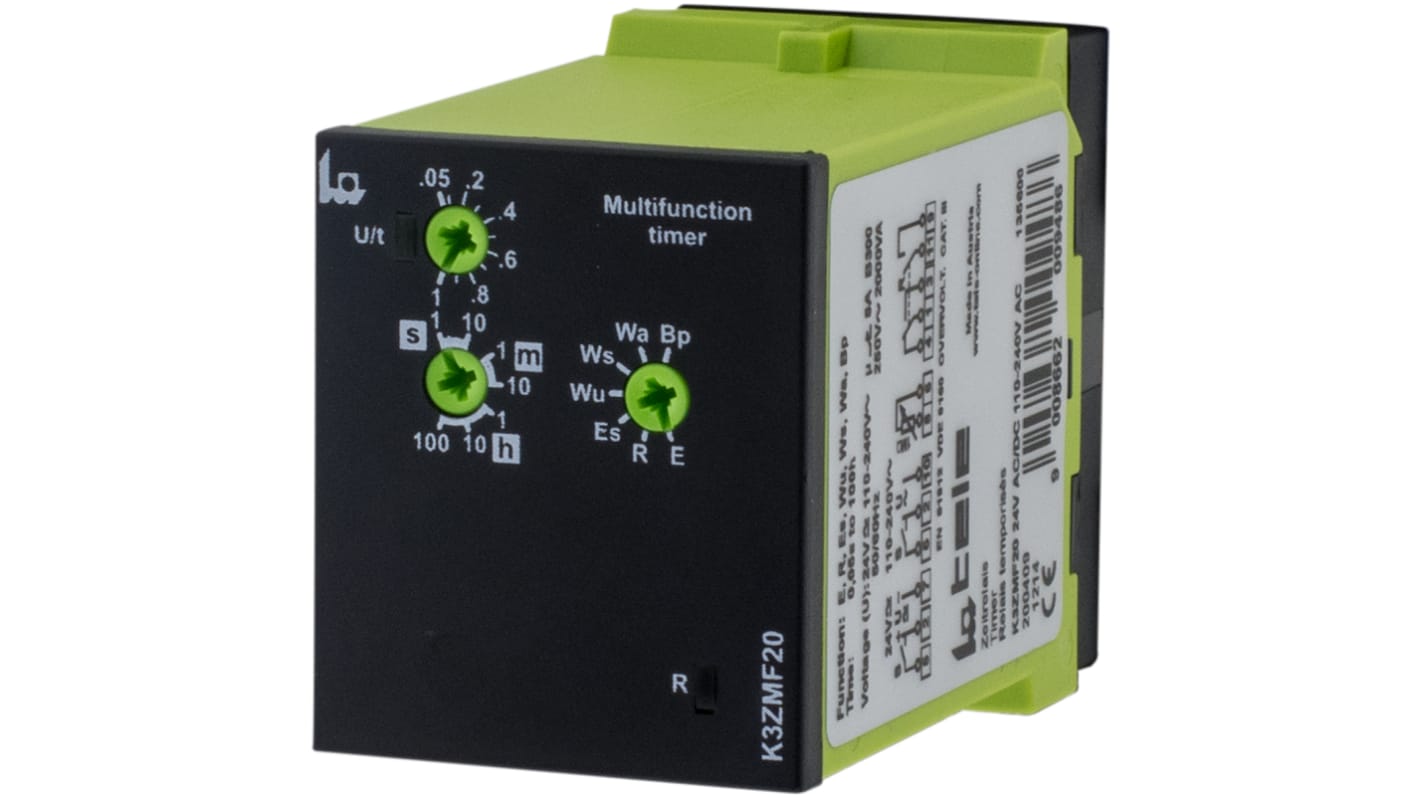

Tele K3ZMF20 Series Plug In Timer Relay, 110 → 240 V ac, 24V ac/dc, 2-Contact, 1 s → 100h
- RS庫存編號:
- 123-9740
- 製造零件編號:
- K3ZMF20 24V AC/DC 110-240VAC
- 製造商:
- Tele
查看所有Timer Relays
- RS庫存編號:
- 123-9740
- 製造零件編號:
- K3ZMF20 24V AC/DC 110-240VAC
- 製造商:
- Tele
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- AT
產品詳細資訊
KAPPA Series- K3ZMF20
KAPPA series K3ZMF20 is a multi function time delay relay that has a modern design used for traditional 11-pole sockets.
Features and Benefits
• 7 Functions
• 7 Time ranges
• 1 Change-over contact, 1 normal open contact
• 24 V ac/dc and 110-240 V ac supply voltage
• 38 mm width
• 7 Time ranges
• 1 Change-over contact, 1 normal open contact
• 24 V ac/dc and 110-240 V ac supply voltage
• 38 mm width
規格
| Attribute | Value |
| Supply Voltage | 110 → 240 V ac, 24V ac/dc |
| Mounting Type | Plug In |
| Mode of Operation | Flash Pause First, OFF Delay, ON Delay, ON Delay with Control Contact, One Shot Leading Edge Voltage Controlled, One Shot Leading Edge with Control Contact, One Shot Trailing Edge with Control Contact |
| Time Range | 1 s → 100h |
| Number of Contacts | 2 |
| Number of Timer Functions | Multi Function |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | 8A |
| Maximum Voltage | 240V ac |
| Terminal Type | Screw |
| Width | 67mm |
| Power Supply | External |
| Minimum Voltage | 24 V ac/dc, 110V ac |
| Series | K3ZMF20 |
| Maximum Operating Temperature | +55°C |
| Length | 38mm |
| Depth | 51mm |
| Time Delay | (Reset) 100ms |
| Contact Material | Silver Nickel |
| Minimum Operating Temperature | -25°C |
