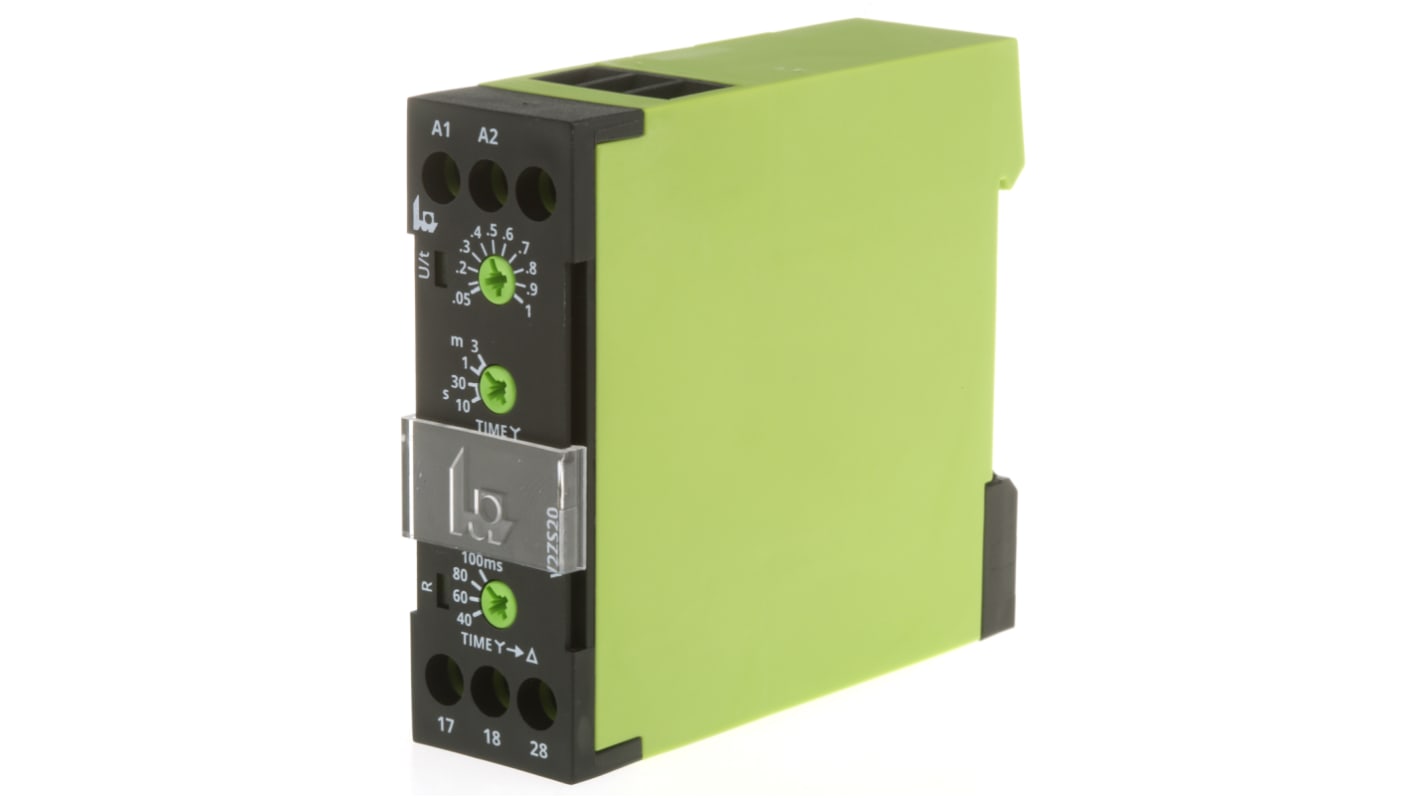

Tele V2ZS20 Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 0.5 → 10s, 1-Function, SPST
- RS庫存編號:
- 798-3527
- 製造零件編號:
- V2ZS20 12-240V AC/DC
- 製造商:
- Tele
查看所有Timer Relays
- RS庫存編號:
- 798-3527
- 製造零件編號:
- V2ZS20 12-240V AC/DC
- 製造商:
- Tele
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- AT
產品詳細資訊
VEO V2ZS20 - Star-Delta-Timer
VEO series V2ZS20 is a star-delta-timer for DIN rail mounting.
Star-delta-timer
4 time ranges
4 transition times
Wide-range input for supply voltage
Relay contact (2 N/O)
LED status indication
Screw terminal
Width 22,5mm
DIN rail mounting
4 time ranges
4 transition times
Wide-range input for supply voltage
Relay contact (2 N/O)
LED status indication
Screw terminal
Width 22,5mm
DIN rail mounting
規格
Attribute | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | Interval |
| Time Range | 0.5 → 10 s, 1.5 → 30 s, 3 → 60 s, 9 → 180s |
| Number of Contacts | 2 |
| Number of Timer Functions | Single |
| Contact Configuration | SPST |
| Maximum Current | (DC-13) 0.1 A, (AC-15) 0.75 A, (AC-1) 3 A, (DC-12) 5A |
| Terminal Type | Screw |
| Power Supply | Internal |
| Width | 22.5mm |
| Depth | 67mm |
| Maximum Operating Temperature | +60°C |
| Length | 76mm |
| Series | V2ZS20 |
| Contact Material | Silver Alloy |
| Time Delay | > 200ms |
| Minimum Operating Temperature | -25°C |
