Lovato Electric TM Series DIN Rail Timer Relay, 2-Contact, 24 → 48 V dc 24V ac, 240 V ac, 0.1 s → 10 min,
- RS庫存編號:
- 905-3476
- 製造零件編號:
- TMST
- 製造商:
- Lovato Electric
可享批量折扣
查看批量定價選項小計（1 件）*
HK$984.70
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 17 件從 2026年10月19日 起發貨
- 加上 7 件從 2026年10月29日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$984.70 |
| 5 - 9 | HK$945.30 |
| 10 + | HK$906.10 |
* 參考價格
- RS庫存編號:
- 905-3476
- 製造零件編號:
- TMST
- 製造商:
- Lovato Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Lovato Electric | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Valve | |
| Time Range | 0.1 s → 10 min | |
| Number of Contacts | 2 | |
| Switching Voltage | 400V ac | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPST | |
| IP Rating | IP40 | |
| Supply AC Voltage | 24V ac, 240V ac | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 24 → 48 V dc | |
| Maximum Operating Temperature | 60°C | |
| Mode | Star-Delta | |
| Terminal Type | Screw | |
| Height | 64.9mm | |
| Width | 104.7mm | |
| Standards/Approvals | IEC/EN 60028-2-61, IEC/EN 60068-2-6, EAC, UL 508, IEC/EN 60068-2-27, CSA C22.2 N°14, cULus, IEC/EN 61000-6-4, IEC/EN 61812-1, IEC/EN 61000-6-2 | |
| Length | 17.5mm | |
| Series | TM | |
| 選取全部 | ||
|---|---|---|
品牌 Lovato Electric | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Valve | ||
Time Range 0.1 s → 10 min | ||
Number of Contacts 2 | ||
Switching Voltage 400V ac | ||
Number of Timer Functions 1 | ||
Contact Configuration DPST | ||
IP Rating IP40 | ||
Supply AC Voltage 24V ac, 240V ac | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 24 → 48 V dc | ||
Maximum Operating Temperature 60°C | ||
Mode Star-Delta | ||
Terminal Type Screw | ||
Height 64.9mm | ||
Width 104.7mm | ||
Standards/Approvals IEC/EN 60028-2-61, IEC/EN 60068-2-6, EAC, UL 508, IEC/EN 60068-2-27, CSA C22.2 N°14, cULus, IEC/EN 61000-6-4, IEC/EN 61812-1, IEC/EN 61000-6-2 | ||
Length 17.5mm | ||
Series TM | ||
不適用
- COO (Country of Origin):
- IT

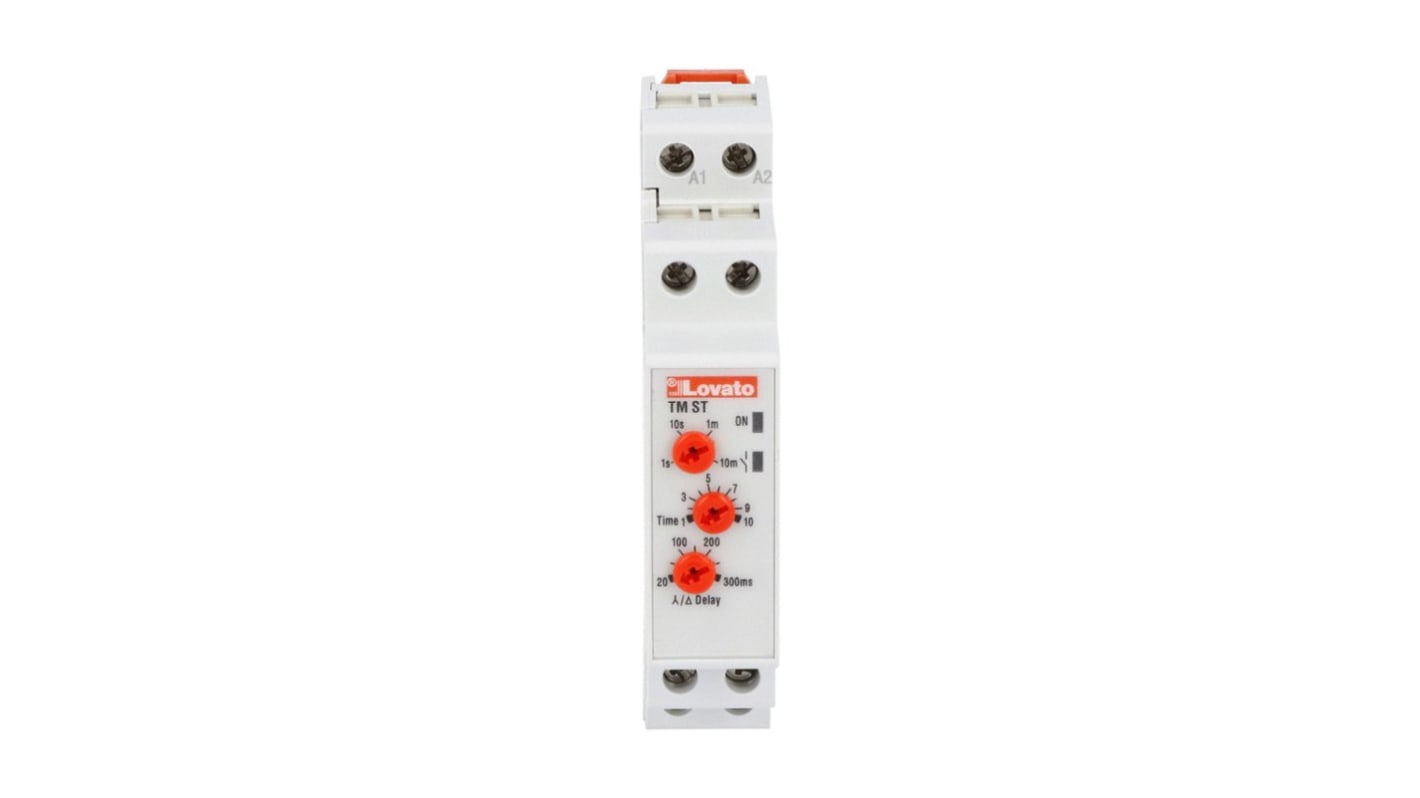

Lovato Timer Relay, DPST, DIN Rail Mount - TMST
This timer relay by Lovato is an essential component for precise time control applications in various industries. With its DPST contact configuration and DIN rail mounting style, this relay offers reliable performance and ease of installation. It features a time range of 0.1s to 10 min, making it suitable for a wide range of timing requirements. The external power supply and screw terminal type ensure flexibility and convenience in operation.
Features & Benefits
• DPST contact configuration for efficient control of electrical circuits
• DIN rail mounting style for easy installation in industrial settings
• Time range of 0.1s to 10 min allows for precise timing control
• External power supply for added flexibility in operation
• Screw terminal type for secure and reliable connections
Applications
• Ideal for star delta control in motor starting applications
• Suitable for time-based control systems in various automation processes
Can it handle a maximum current of 8A?
Yes, this timer relay is designed to handle a maximum current of 8A.
Will it operate between temperatures ranging from -20°C to +60°C?
Yes, this timer relay is suitable for operation within the temperature range of -20°C to +60°C.
Is the supply voltage compatible with both 24-240V ac and 24-48V DC?
Yes, this timer relay supports a supply voltage range of 24-240V ac and 24-48V DC.
